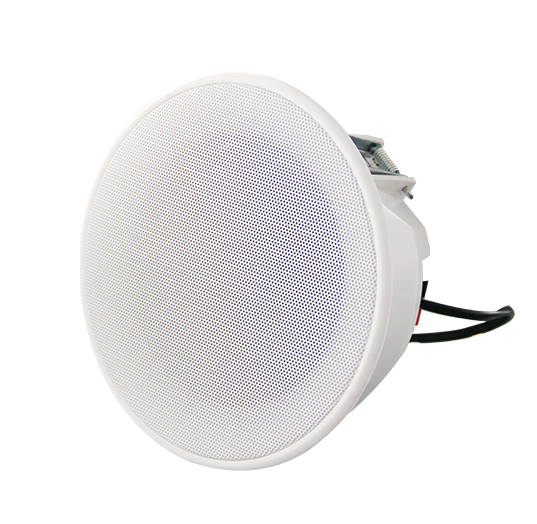

Wholesale K-905B 5inch DC5V/2A hifi ceiling speaker Active bluetoooth speaker

Home / Products / Active Bluetooth Speaker / K-905B 5inch DC5V/2A hifi ceiling speaker Active bluetoooth speaker
K-905B 5inch DC5V/2A hifi ceiling speaker Active bluetoooth speaker

01

Product category

K-905B 5inch DC5V/2A hifi ceiling speaker Active bluetoooth speaker

Features:

  • 5inch DC5V/2A Active bluetoooth 8ohm ceiling speaker
  • Full range ceiling speaker. 20mm cone woofer
  • The bluetooth is the first level
  • 1-way line input 30s no audio input
  • It is will be cut down the power 1 active connect 3 passive with stereo best sound

03

DATA INFORMATION

ITEM

K-905

K-905B

RMS POWER

6W

6W

MAX POWER

10W

10W

POWER INPUT

AC120-230V/50Hz

DC5V/2A

IMPEDANCE INPUT

SENSITIVTY

90dB

90dB

FQ RESPONSE

90-18Khz

90-18Khz

LOUDSPEAKER

5“(Φ120mm)20 cone

5“(Φ120mm)20 cone

OUTSIDE SIZE

170×85mm

170×85mm

HOLE SIZE

Φ150mm

Φ150mm

INNER BOX SIZE

185×123×276mm

185×123×276mm

MATERIAL

ABS

ABS

COLOR

WHITE

WHITE

N.W.

0.67kg

0.67kg

04

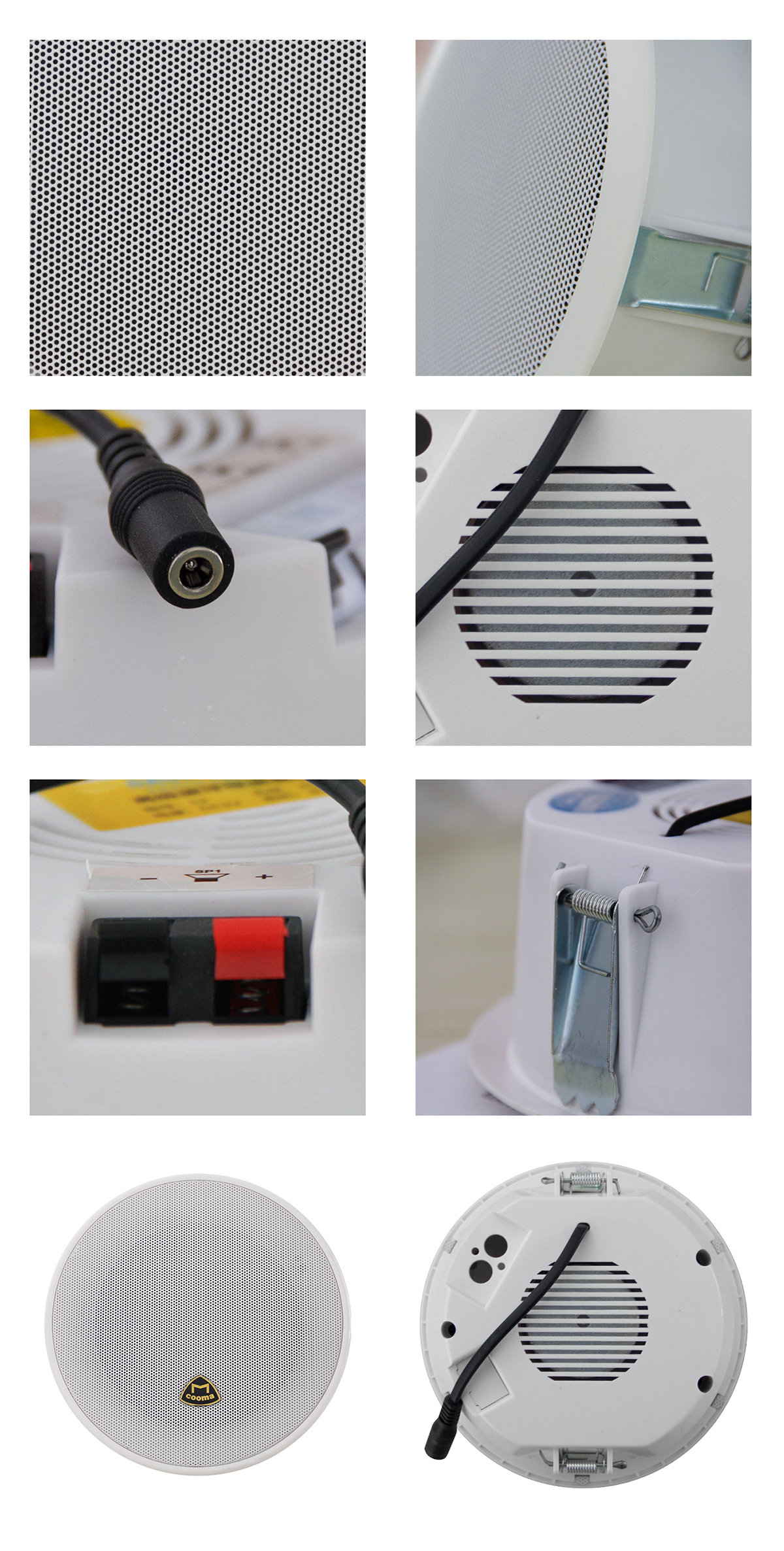

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,holes are opened according to the mounting size.


    2. Aim the horn at the opening hole, and open the spring clip.


    3.Push up hard to make the little flower horn Flatten close to the ceiling surface.

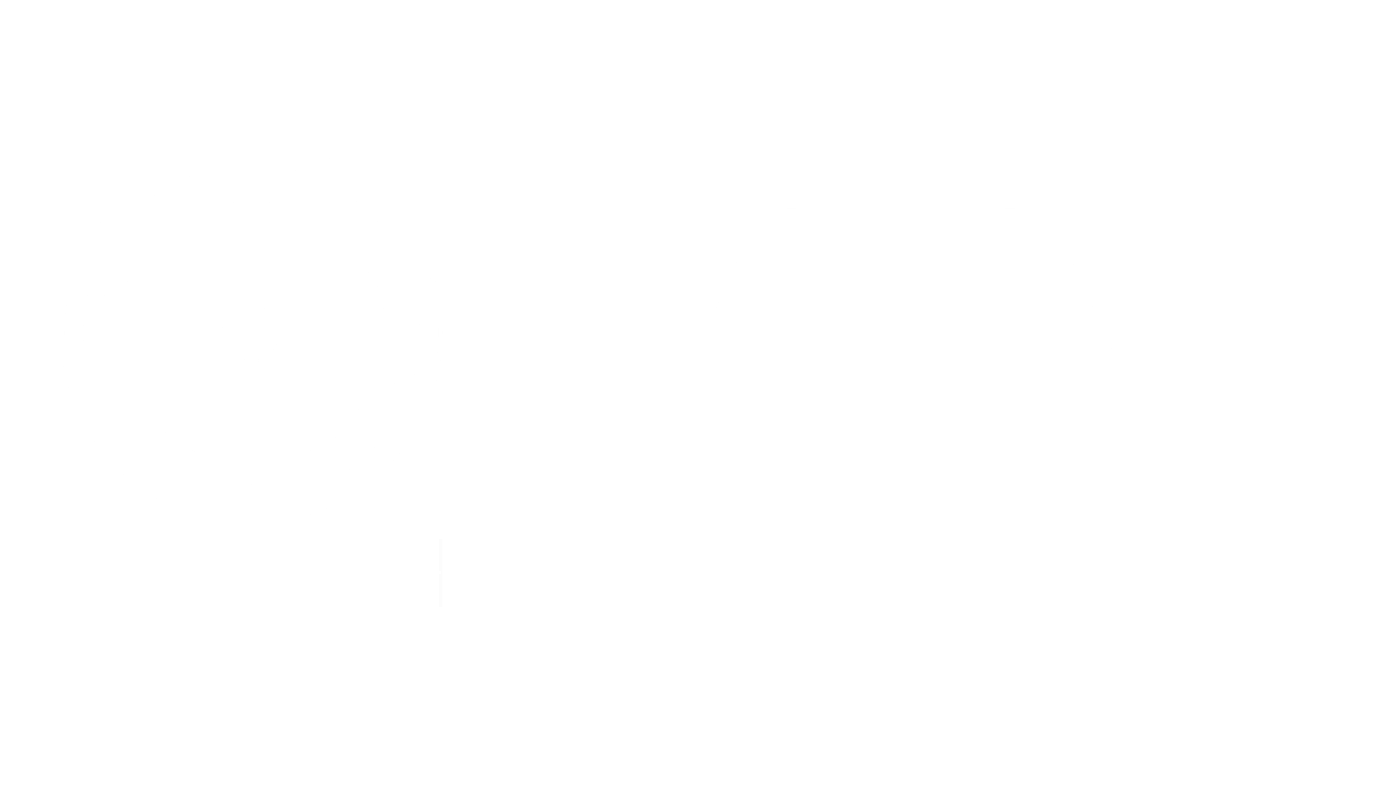

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

K-905

44.5*36.5*36

20

0.058

13.40

15.95

8960

22760

K-905B

44.5*36.5*36 20 0.058 13.40 15.95 8960 22760

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM

08

COMPANY INFORMATION

PANORAMA

PANORAMA

Injection

Injection

TRANSFORMER

TRANSFORMER

LOUDSPEAKER

LOUDSPEAKER

Electronic PCB

Electronic PCB

Assembly

Assembly

inspection room

inspection room

Silence room

Silence room

sample room

sample room
