Wholesale K-916A 5.5” 8ohm stereo ceiling speaker Active bluetoooth speaker

Home / Products / Active Bluetooth Speaker / K-916A 5.5” 8ohm stereo ceiling speaker Active bluetoooth speaker

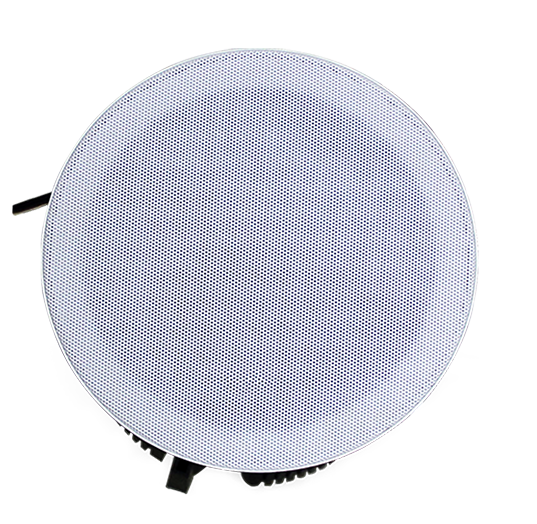

K-916A 5.5” 8ohm stereo ceiling speaker Active bluetoooth speaker

01

Product category

K-916A 5.5” 8ohm stereo ceiling speaker Active bluetoooth speaker

Features:

  • 5.5 inch Active bluetoooth 8ohm ceiling speaker.
  • TWO-way ceiling speaker. 20mm cone woofer,13mm silk film tweeter
  • 1-way line input 30s no audio input
  • It is will be cut down the power 1 active connect 3 passive with stereo best sound

03

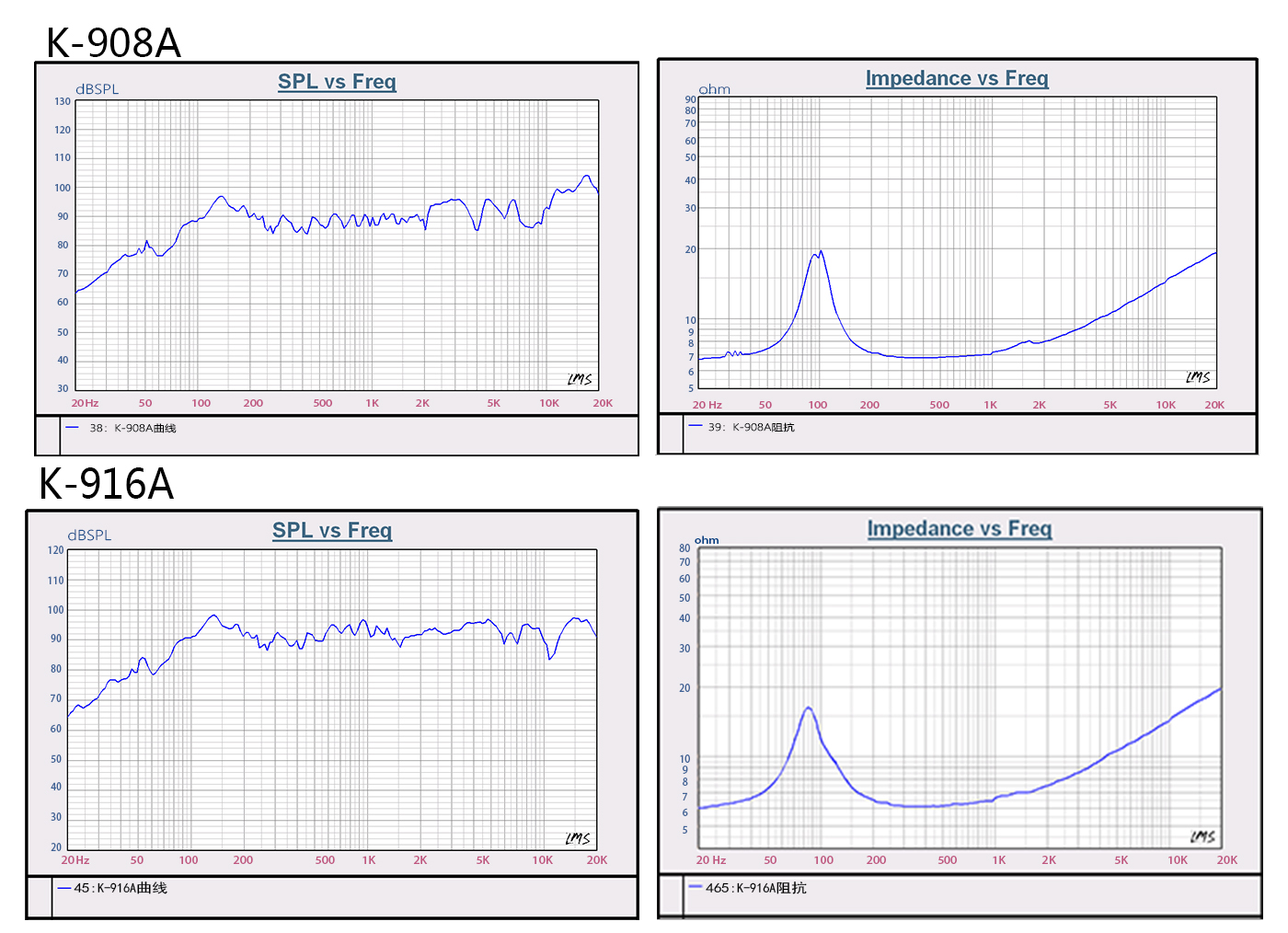

DATA INFORMATION

ITEM

K-908A

K-916A

RMS POWER

4×20W

4×20W

MAX POWER

30W

40W

DC POWER

DC15V/2A

DC15V/2A

IMPEDANCE INPUT

SENSITIVTY

92±3dB

92dB±3dB

FQ RESPONSE

90-18Khz  ±3dB

90-18Khz  ±3dB

LOUDSPEAKER

4“(Φ110mm)20/13mm cone

5.5“(Φ135mm)20/13mm cone

OUTSIDE SIZE

170×75mm

188×80mm

HOLE SIZE

Φ150mm

Φ165mm

INNER BOX SIZE

180×180×102mm

200×200×110mm

MATERIAL

ABS

ABS

COLOR

WHITE

WHITE

N.W.

0.72kg

1.04kg

04

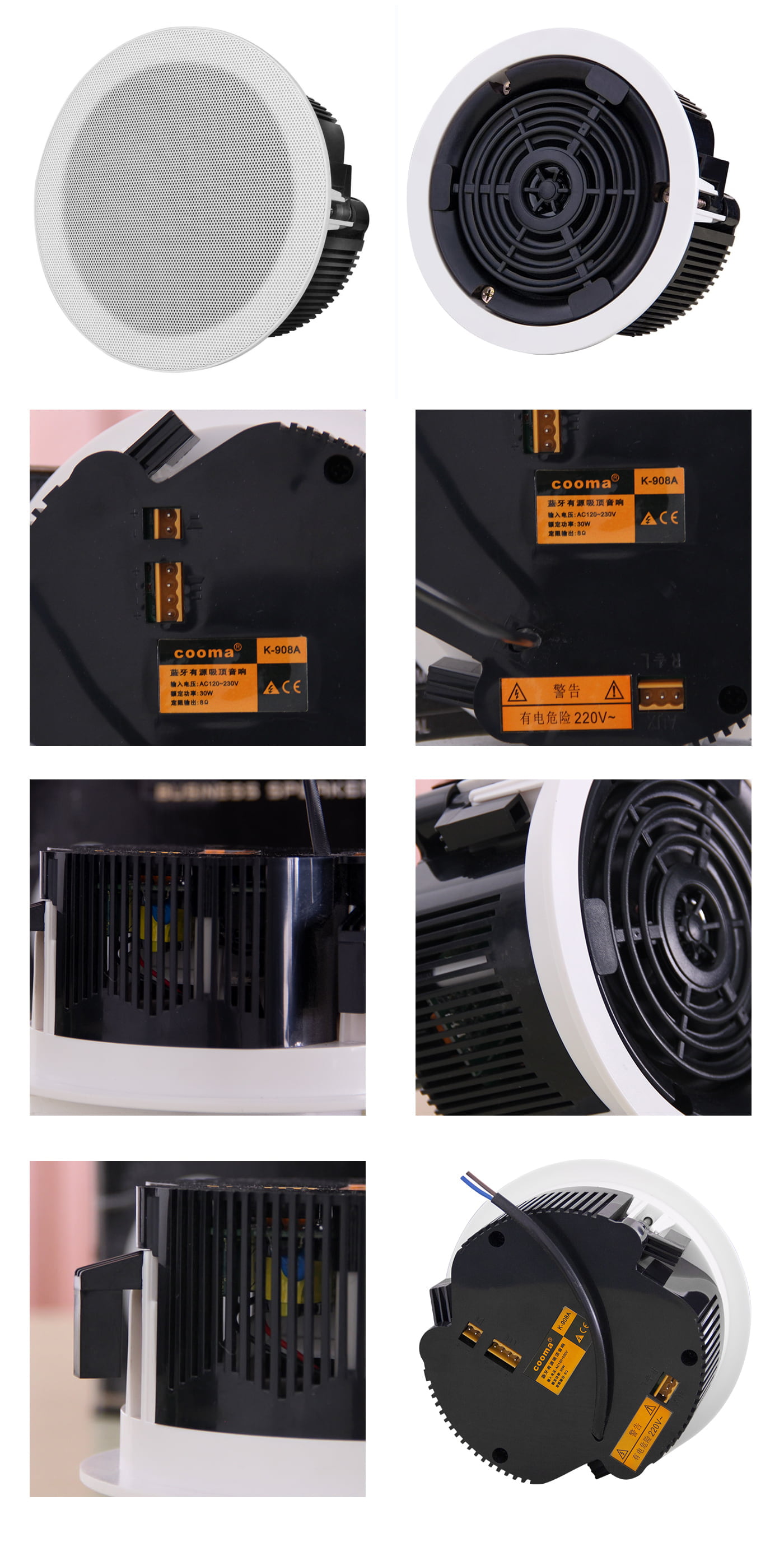

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,holes are opened according to the mounting size,connect the cable to the terminal.


    2. Remove the grille and carefully place the speakers  in the mounting holes.


    3. Use a screwdriver to lock the mounting bracket and install the grille.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω output is connected to the required corresponding wire.

06

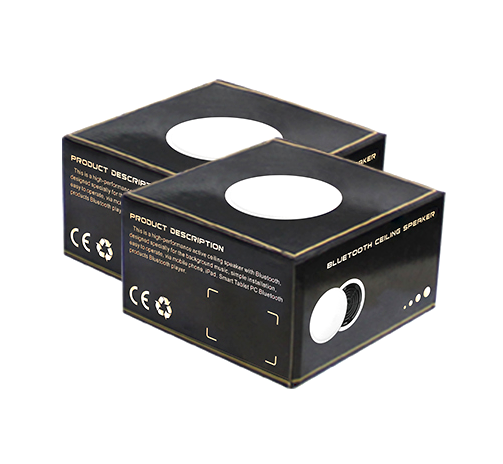

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

K-908

38*38*22.5

8

0.032

5.76

7.26

6504

16504

K-916A

42*42*24.5

8

0.043

8.32

10.32

4840 12280
