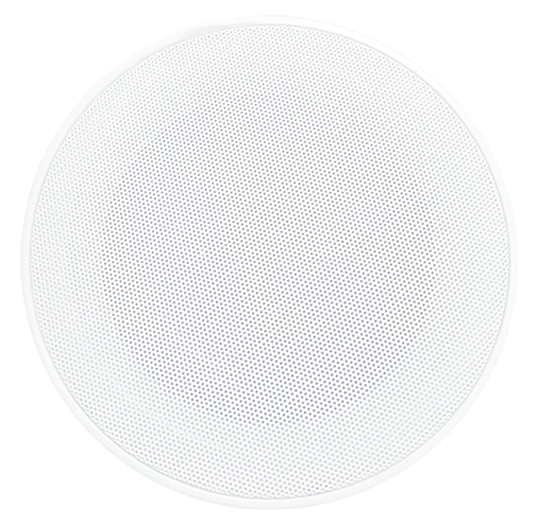

M-305 5” narrow bezel 100V full range ceiling speaker

Features:

  • 5 inch full range and narrow bezel ceiling speaker
  • 1.5W/3W/6W with transformer
  • The most economical model
  • Metal spring strong for the ceiling

03

DATA INFORMATION

ITEM

M-305

M-306

RMS POWER

1.5W/3W/6W

1.5W/3W/6W

MAX POWER

10W

10W

VOLTAGE INPUT

100 V

100V

SENSITIVTY

90dB

90dB

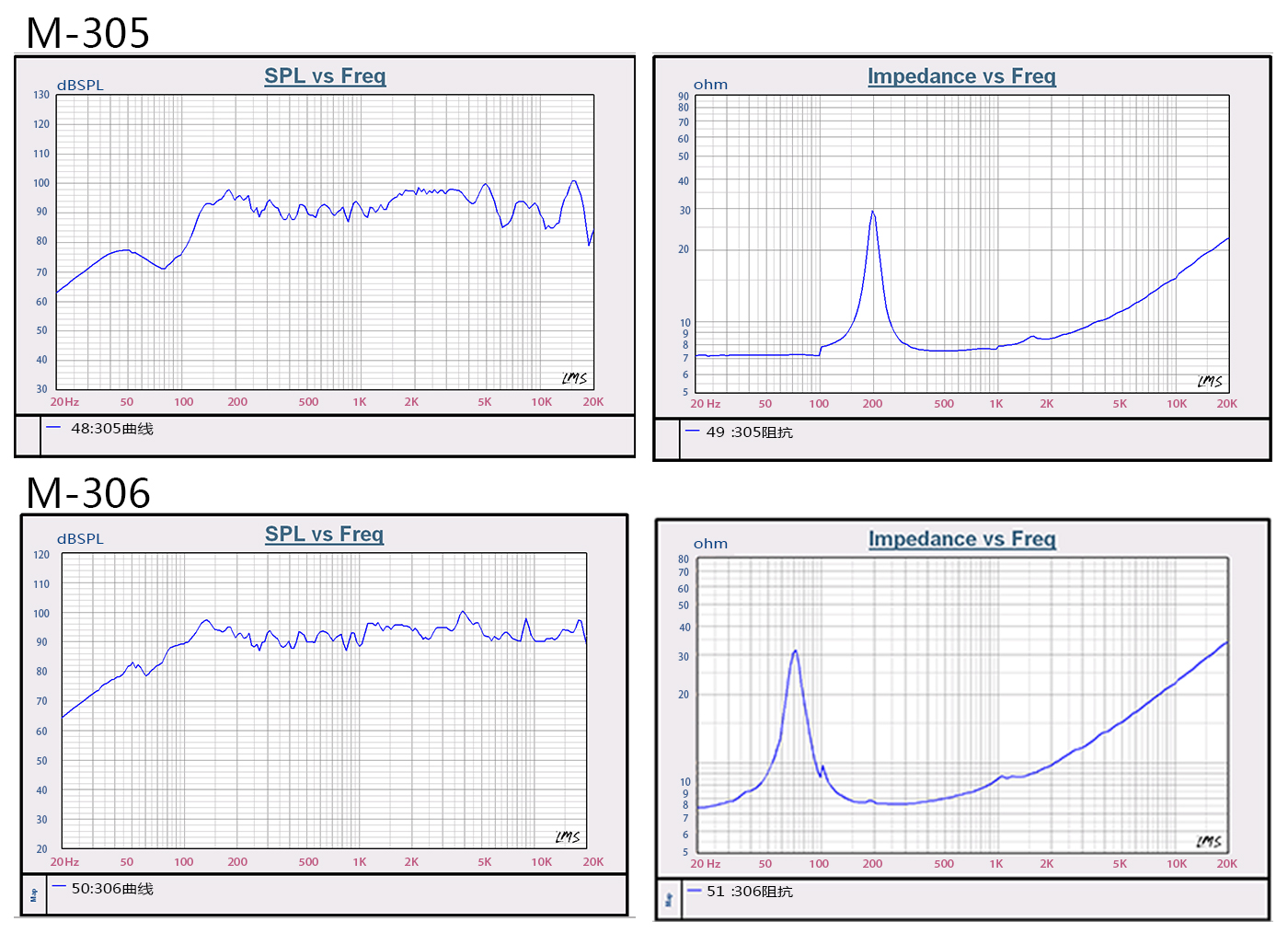

FQ RESPONSE

90-18Khz

90-18Khz

LOUDSPEAKER

5“(Φ120mm)20mm cone

6.5“(Φ166mm)20mm cone

OUTSIDE SIZE

170×58mm

222×75mm

HOLE SIZE

Φ150mm

Φ180mm

INNER BOX SIZE

172×63×172mm

202×86×203mm

TRANSFORMER SIZE

13×16

13×16

MATERIAL

ABS

ABS

COLOR

WHITE

WHITE

N.W.

0.6kg

0.76kg

04

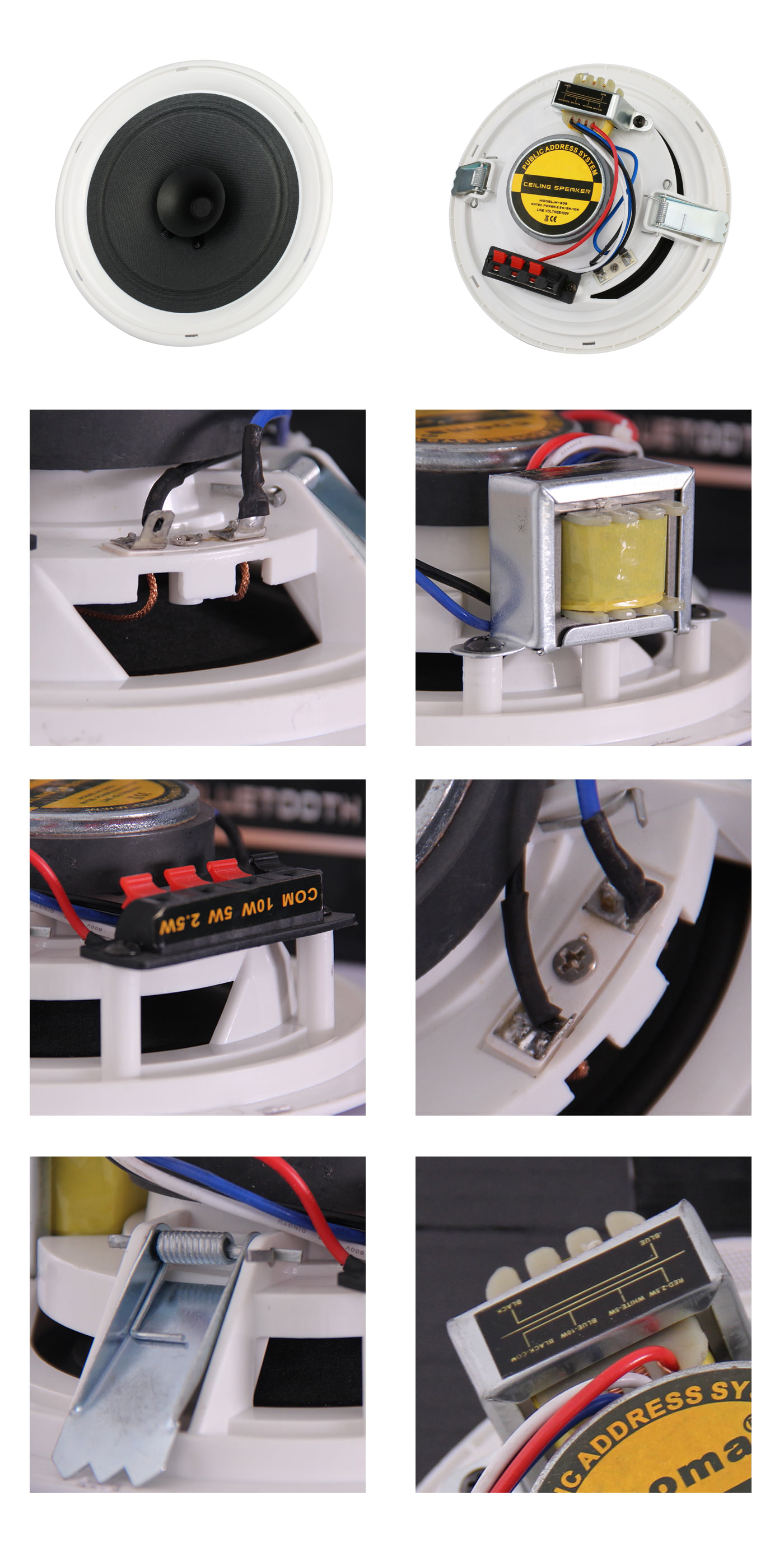

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,holes are opened according to the mounting size.


    2. Aim the horn at the opening hole, and open the spring clip.


    3. Push up hard to make the little flower horn Flatten close to the ceiling surface.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-305

36*35*36

20

0.045

12

15.5

11560

29340

M-306

45*42.5*42.5

20

0.081

15.2

18.7

6420

16300

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL

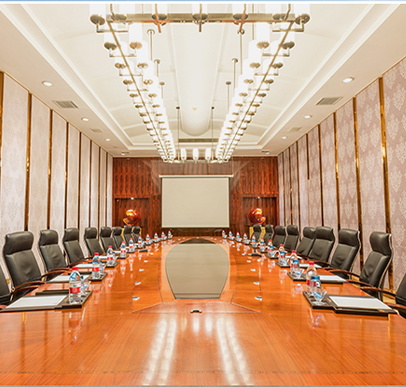

MEETING ROOM
