M-508A 6.5inch full metal with back cover fire proof 100V ceiling speaker

01

Product category

M-508A 6.5inch full metal with back cover fire proof 100V ceiling speaker

Features:

  • 6.5 inch full metal fire proof ceiling speaker
  • 3W/6W with transformer
  • With metal back cover and caremic terminal
  • Best selling ceiling speaker

03

DATA INFORMATION

ITEM

M-508

M-508A

RMS POWER

1.5W/3W/6W

3W/6W

MAX POWER

10W

10W

VOLTAGE INPUT

100 V

100V

SENSITIVTY

91dB±3dB

91dB±3dB

FQ RESPONSE

90-16KHz

90-16KHz

LOUDSPEAKER

6.5“(Φ166mm)20mm cone

6.5“(Φ166mm)20mm cone

OUTSIDE SIZE

200×65mm

200×100mm

HOLE SIZE

Φ165mm

Φ165mm

INNER BOX SIZE

206×70×206mm

215×215×130mm

TRANSFORMER SIZE

13×16

13×16

MATERIAL

METAL

METAL

COLOR

WHITE

WHITE

N.W.

0.72kg

0.99kg

04

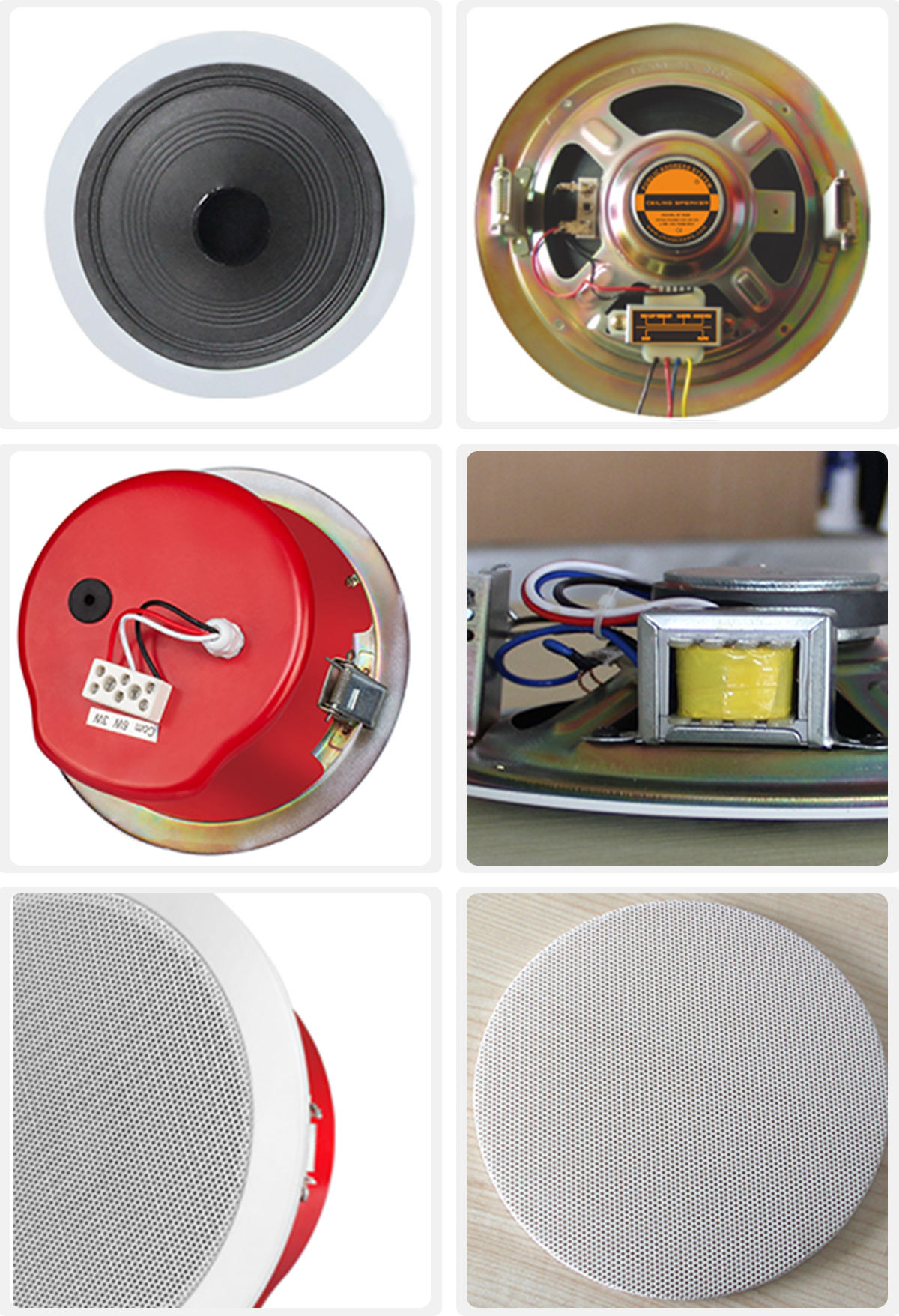

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,
    Holes are opened according
    to the mounting size.


    2. Aim the horn at the opening hole, and open the spring clip.


    3. Push up hard to make the little flower horn Flatten close to the ceiling surface.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-508

43*37*43

20

0.068

14.40

17.50

7640

19400

M-508A

68*44.5*23.5

10

0.071

9.9

13.60

3660

9300

Accessories:

Required

——

Matching

——
