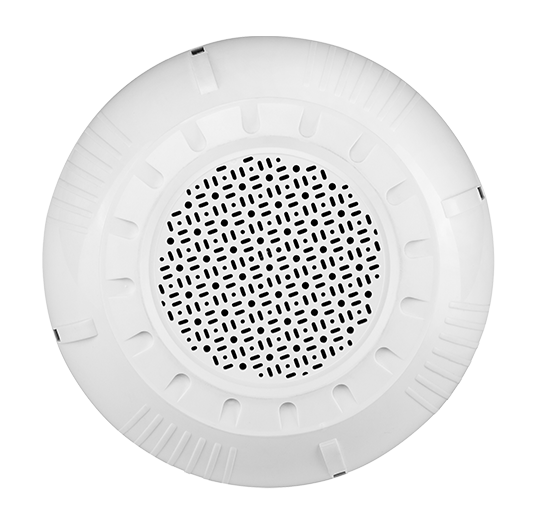

M-525 5inch 3W passive amplifier speaker mounted ceiling speaker

Features:

  • 5 inch on-wall full range ceiling speaker.
  • 3W-6W with transformer
  • Has very good loudspeaker with tweeter cap
  • Very strong ABS design
  • Full ABS meterial
  • Best selling ceiling speaker

03

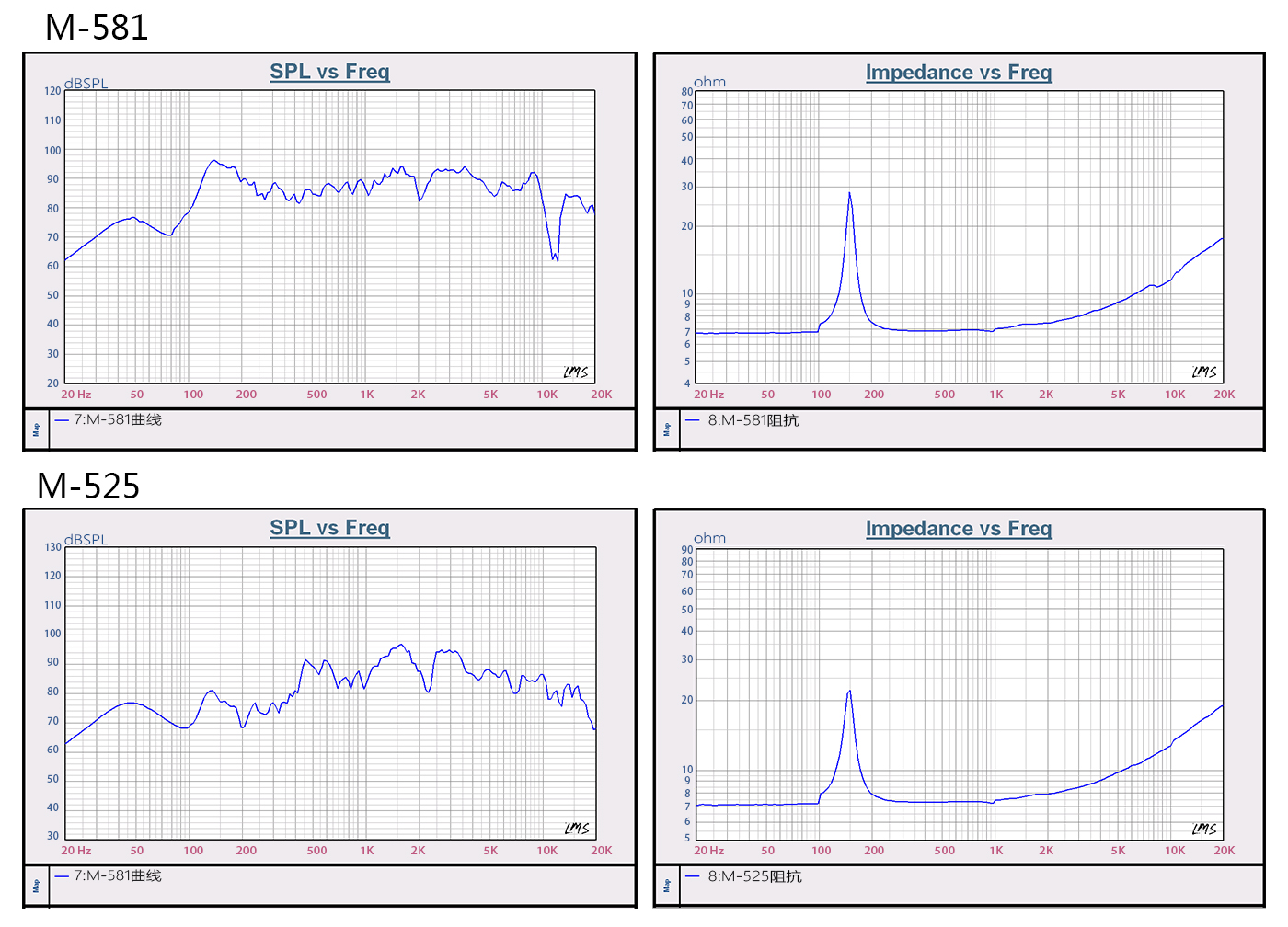

DATA INFORMATION

ITEM

M-525

M-581

RMS POWER

3W/6W



MAX POWER

6W



VOLTAGE INPUT

100 V



SENSITIVTY

91dB



FQ RESPONSE

90-16KHz



LOUDSPEAKER

5“(Φ120mm)14mm cone



OUTSIDE SIZE

180×70mm



HOLE SIZE

/



INNER BOX SIZE

186×75×186mm



TRANSFORMER SIZE

13×16



MATERIAL

ABS



COLOR

WHITE



N.W.

0.49kg



04

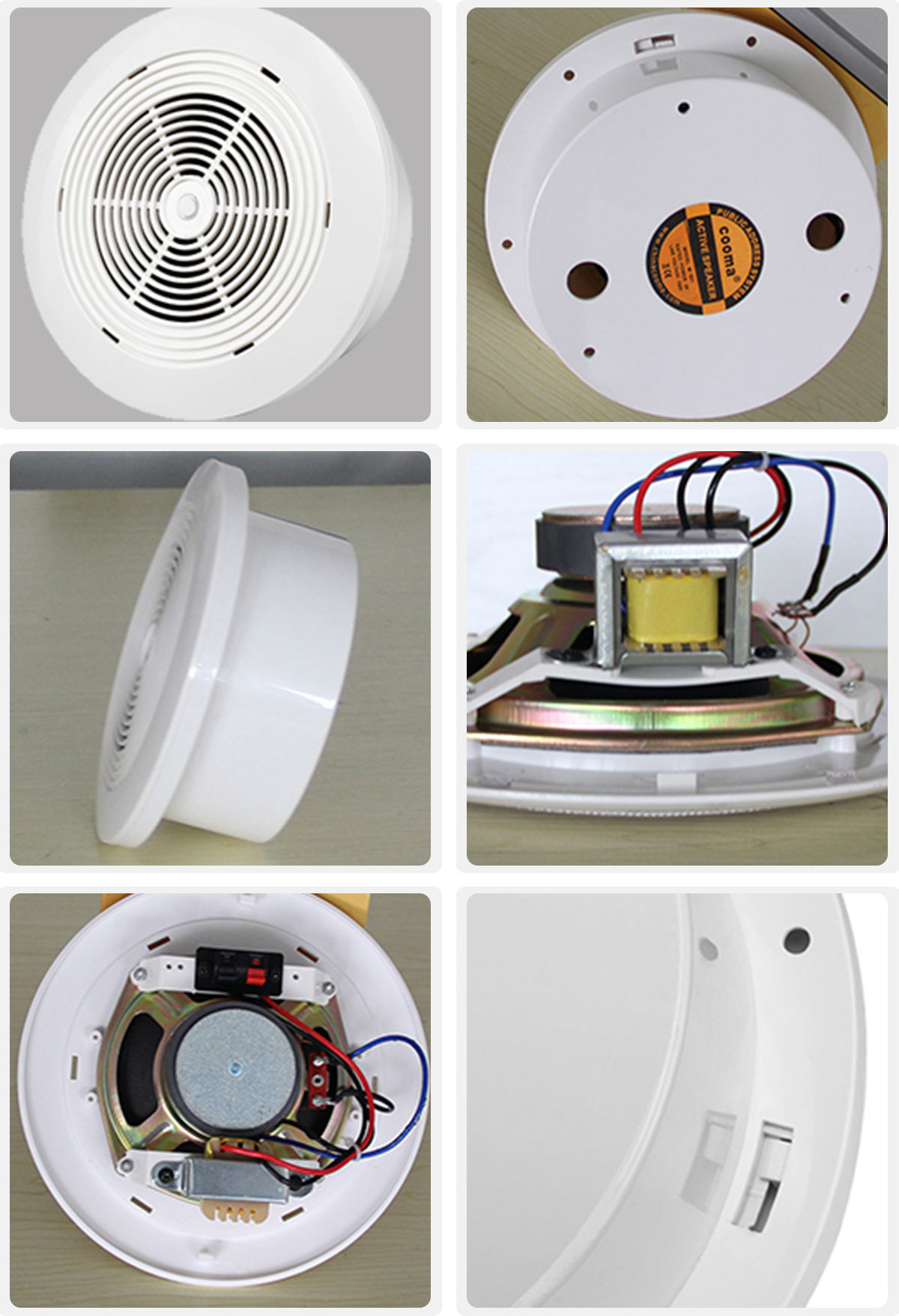

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,
    Holes are opened according
    to the mounting size


    2. Aim the horn at the opening hole, and open the spring clip.


    3. Push up hard to make the little flower horn Flatten close to the ceiling surface.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-525

58*39.5*39

30

0.089

17.40

20.90

5840

14840

Accessories:

Required

——

Matching

——

07

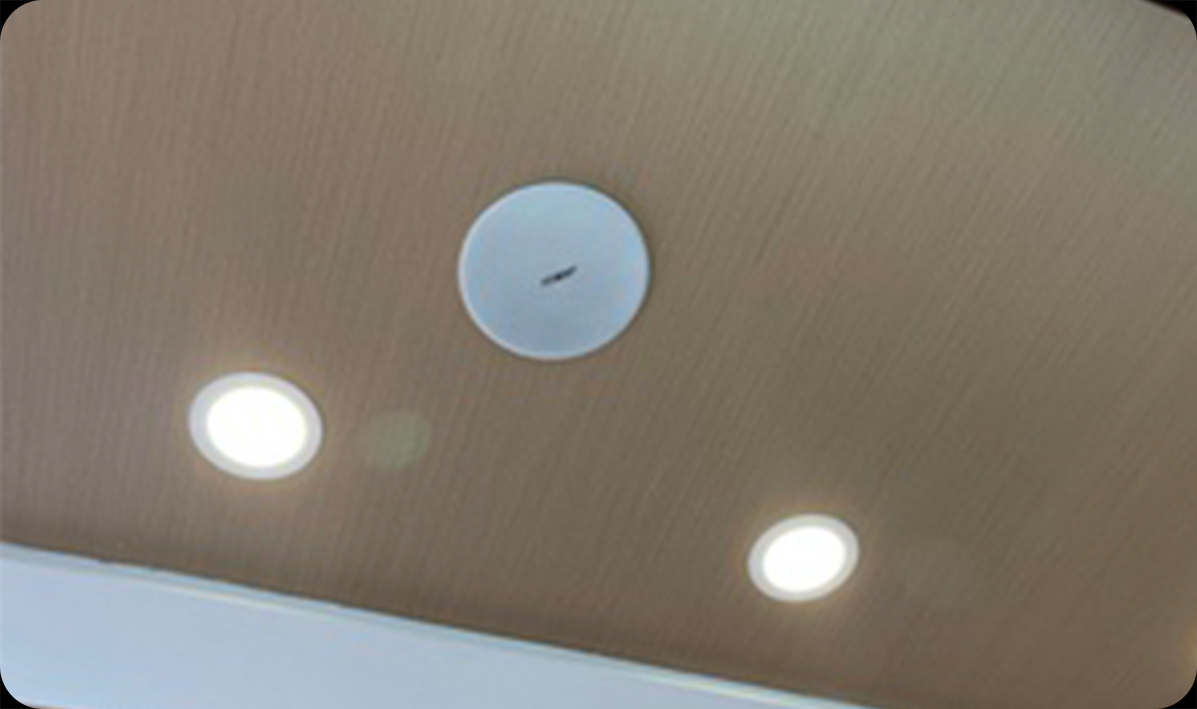

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM

08

COMPANY INFORMATION

PANORAMA

PANORAMA

Injection

Injection

TRANSFORMER

TRANSFORMER

LOUDSPEAKER

LOUDSPEAKER

Electronic PCB

Electronic PCB

Assembly

Assembly

inspection room

inspection room

Silence room

Silence room

sample room

sample room

09

Certificate

  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
