M-533 6inch 100V ABS design full range ceiling speaker

Features:

  • 6 inch full range ceiling speaker.
  • 3W/6W with transformer
  • Has very good loudspeaker with tweeter cap
  • Very strong ABS design
  • Metal spring strong for the ceiling
  • Best selling ceiling speaker

03

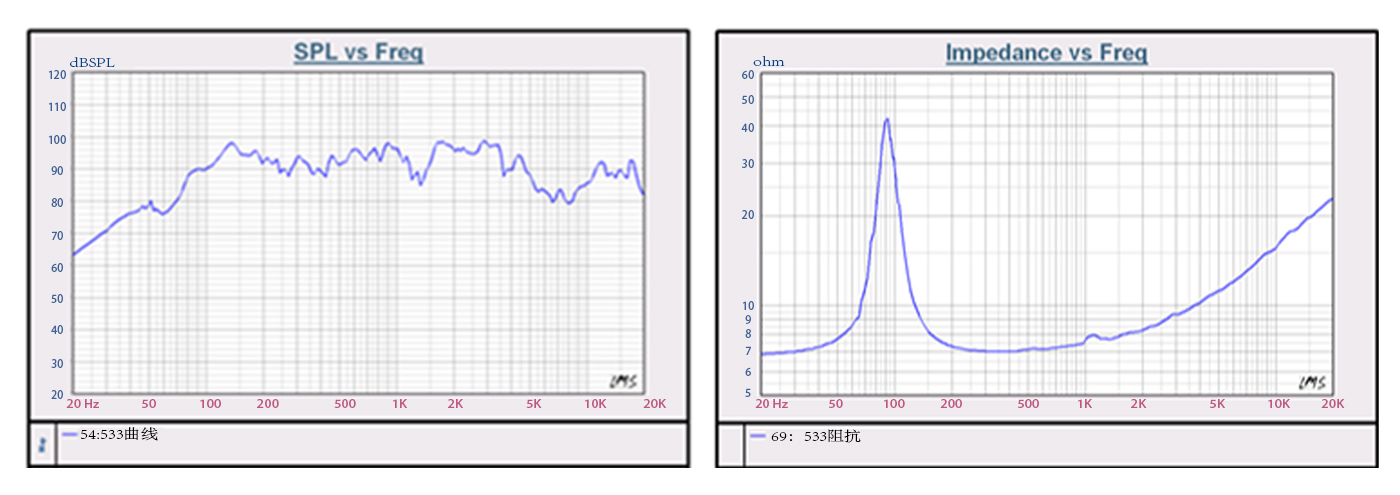

DATA INFORMATION

ITEM

M-533

RMS POWER

3W/6W

MAX POWER

10W

VOLTAGE INPUT

100 V

SENSITIVTY

91dB

FQ RESPONSE

90-16KHz

LOUDSPEAKER

6“(Φ158mm)20mm cone

OUTSIDE SIZE

186×79mm

HOLE SIZE

Φ163mm

INNER BOX SIZE

195×80×195mm

TRANSFORMER SIZE

13×16

MATERIAL

ABS

COLOR

WHITE

N.W.

0.72kg

04

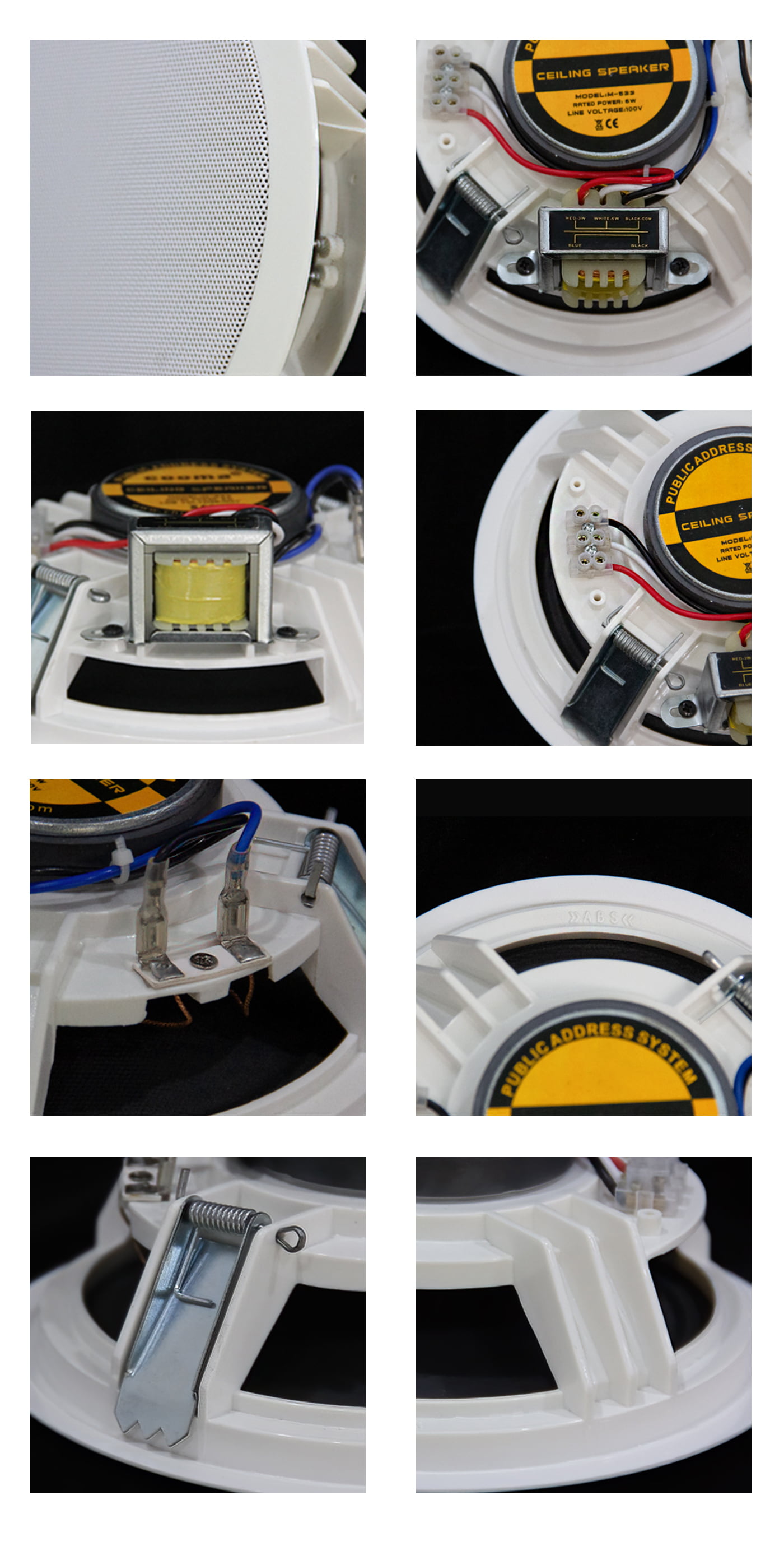

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,
    Holes are opened according
    to the mounting size.


    2. Aim the horn at the opening hole, and open the spring clip.


    3. Push up hard to make the little flower horn Flatten close to the ceiling surface.

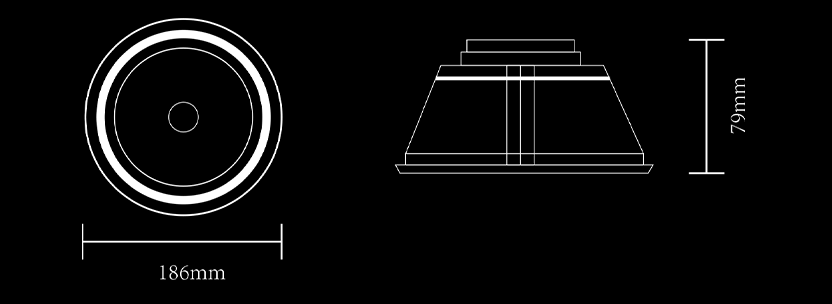

  • Dimensions

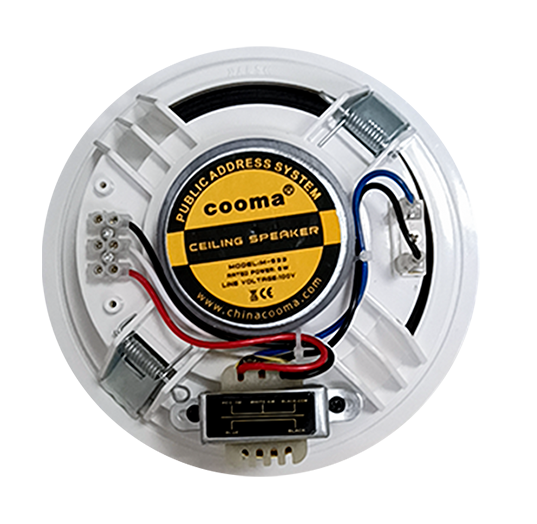

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-533

42*41*41

20

0.071

14.40

17.90

7320

18600

Accessories:

Required

——

Matching

——

07
