M-558C 5inch 1.5W/3W/6W Two Way coaxial pa system Ceiling Speaker

01

Product category

M-558C 5inch 1.5W/3W/6W Two Way coaxial pa system Ceiling Speaker

Features:

  • 5 inch two-way ceiling speaker
  • with 13mm silk film tweeeter
  • 1.5W/3W/6W with transformer
  • Metal spring strong for the ceiling

03

DATA INFORMATION

ITEM

M-558C

M-568C

M-578C

RMS POWER

1.5W/3W/6W

2.5W/5W/10W

2.5W/5W/10W

MAX POWER

10W

20W

20W

VOLTAGE INPUT

100 V

100 V

100V

SENSITIVTY

91dB±3dB

91dB±3dB

91dB±3dB

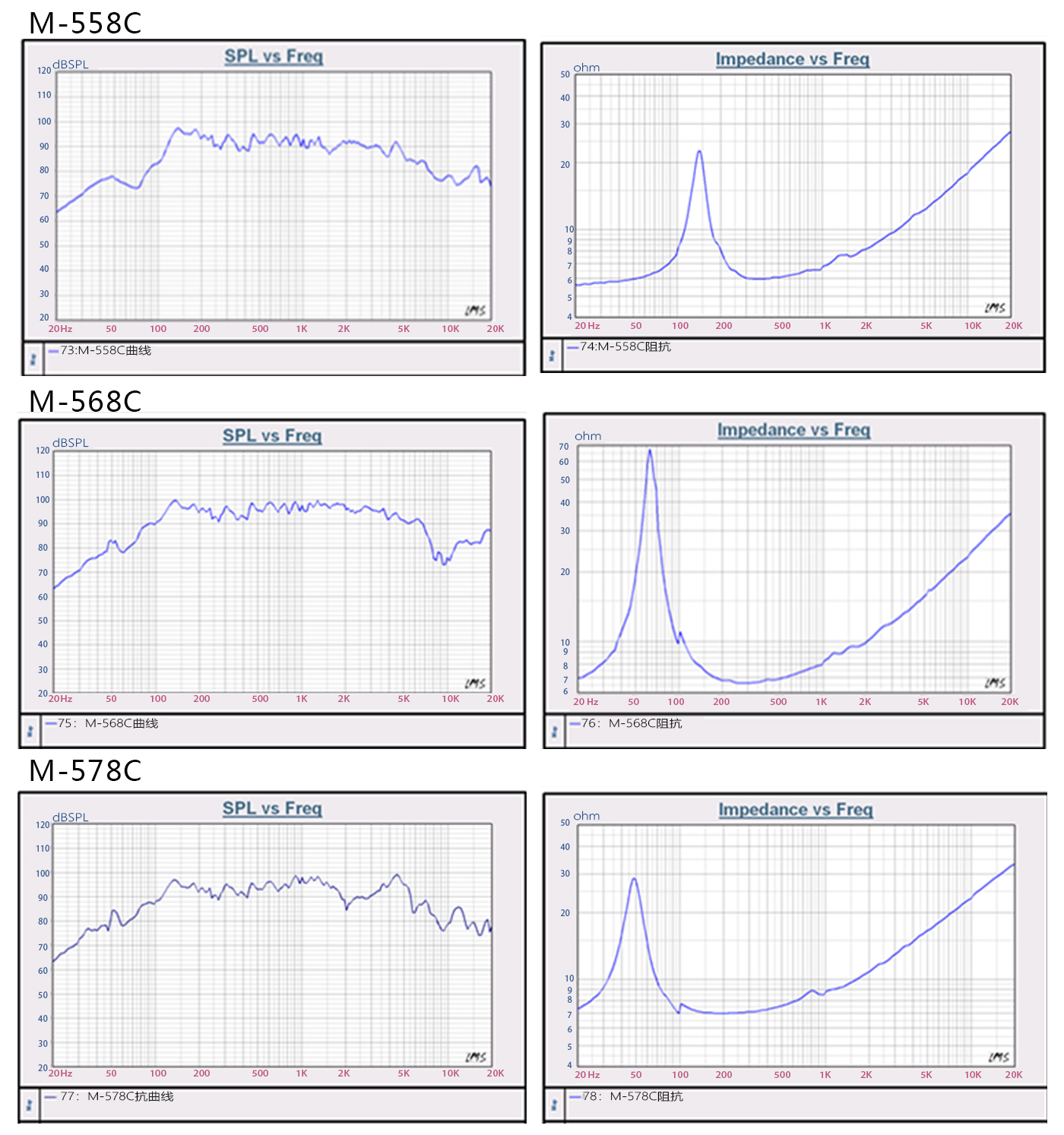

FQ RESPONSE

90-18Khz

90-18Khz

90-20Khz

LOUDSPEAKER

5“(Φ130mm)20/13mm cone

6.5“(Φ166mm)25/13mm cone

8“(Φ208mm)25/13mm cone

OUTSIDE SIZE

203×80mm

240×80mm

280×88mm

HOLE SIZE

Φ168mm

Φ205mm

Φ250mm

INNER BOX SIZE

208×90×213mm

255×255×100mm

295×295×105mm

TRANSFORMER SIZE

13×16

13×20

13×20

MATERIAL

ABS

ABS

ABS

COLOR

WHITE

WHITE

WHITE

N.W.

0.87kg

1.33kg

1.61kg

04

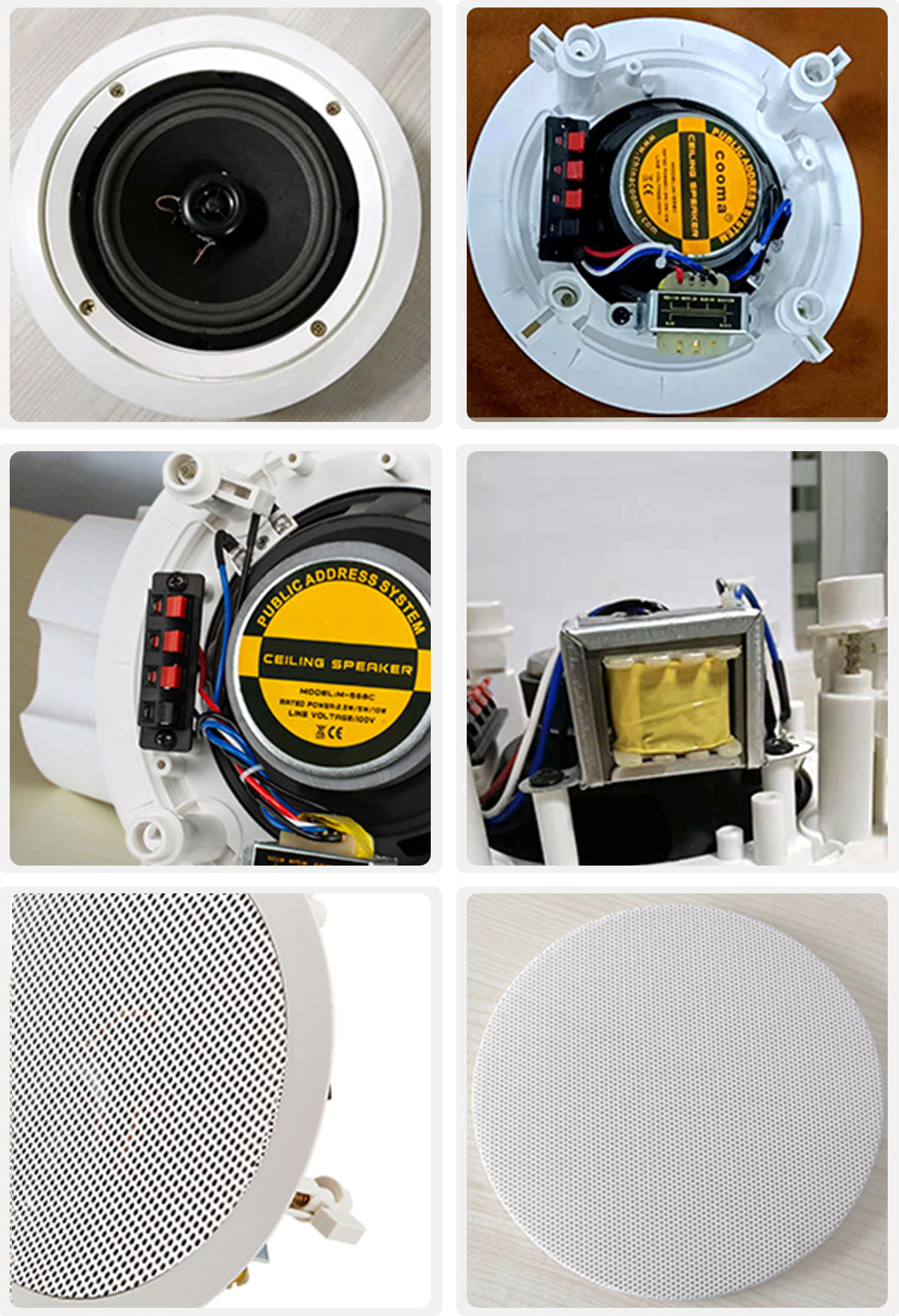

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,
    Holes are opened according
    to the mounting size


    2. Aim the horn at the opening hole, and open the spring clip.


    3. Push up hard to make the little flower horn Flatten close to the ceiling surface.

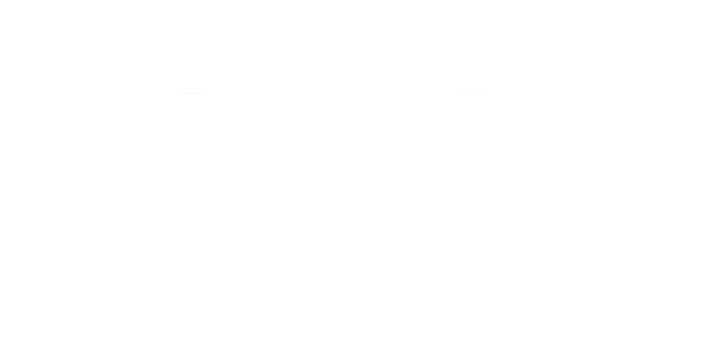

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing

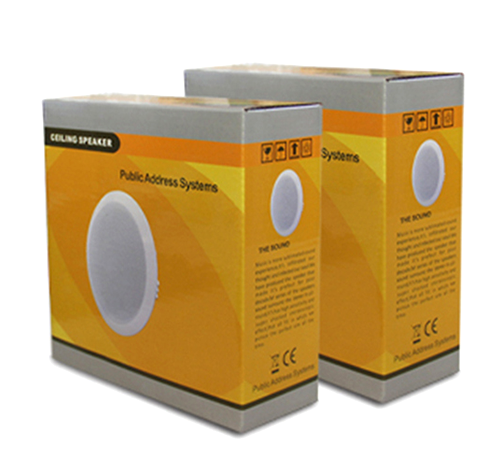

inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-558C

48*44*45

20

0.095

17.40

20.90

5480

13900

M-568C

53.5*27.5*43.5

8

0.064

10.64

14.14

3248 8248

M-578C

62*31.5*44.5

8

0.087

12.88

16.38

2392 6072
