Wholesale M-599 5.5inch water proof full range 3W ceiling speaker

Home / Products / Ceiling Speaker / M-599 5.5inch water proof full range 3W ceiling speaker
M-599 5.5inch water proof full range 3W ceiling speaker

01

Product category

M-599 5.5inch water proof full range 3W ceiling speaker

Features:

  • 5.5 inch water proof dust-proof ceiling speaker with water-proof rubber ring
  • 3W/6W with transformer
  • Has rubber and plastics loudspeaker
  • Best selling ceiling speaker

03

DATA INFORMATION

ITEM

M-598(WATER PROOF)

M-599(WATER PROOF)

RMS POWER

3W

3W

MAX POWER

6W

6W

VOLTAGE INPUT

100 V

100V

SENSITIVTY

91dB

91dB

FQ RESPONSE

90-16KHz

90-16KHz

LOUDSPEAKER

4.5“(Φ116mm)20mm cone

5.5“(Φ135mm)20mm cone

OUTSIDE SIZE

160×120mm

193×110mm

HOLE SIZE

Φ150mm

Φ180mm

INNER BOX SIZE

167×167×130mm

200×200×117mm

TRANSFORMER SIZE

13×16

13×16

MATERIAL

ABS

ABS

COLOR

WHITE

WHITE

N.W.

0.83kg

0.91kg

04

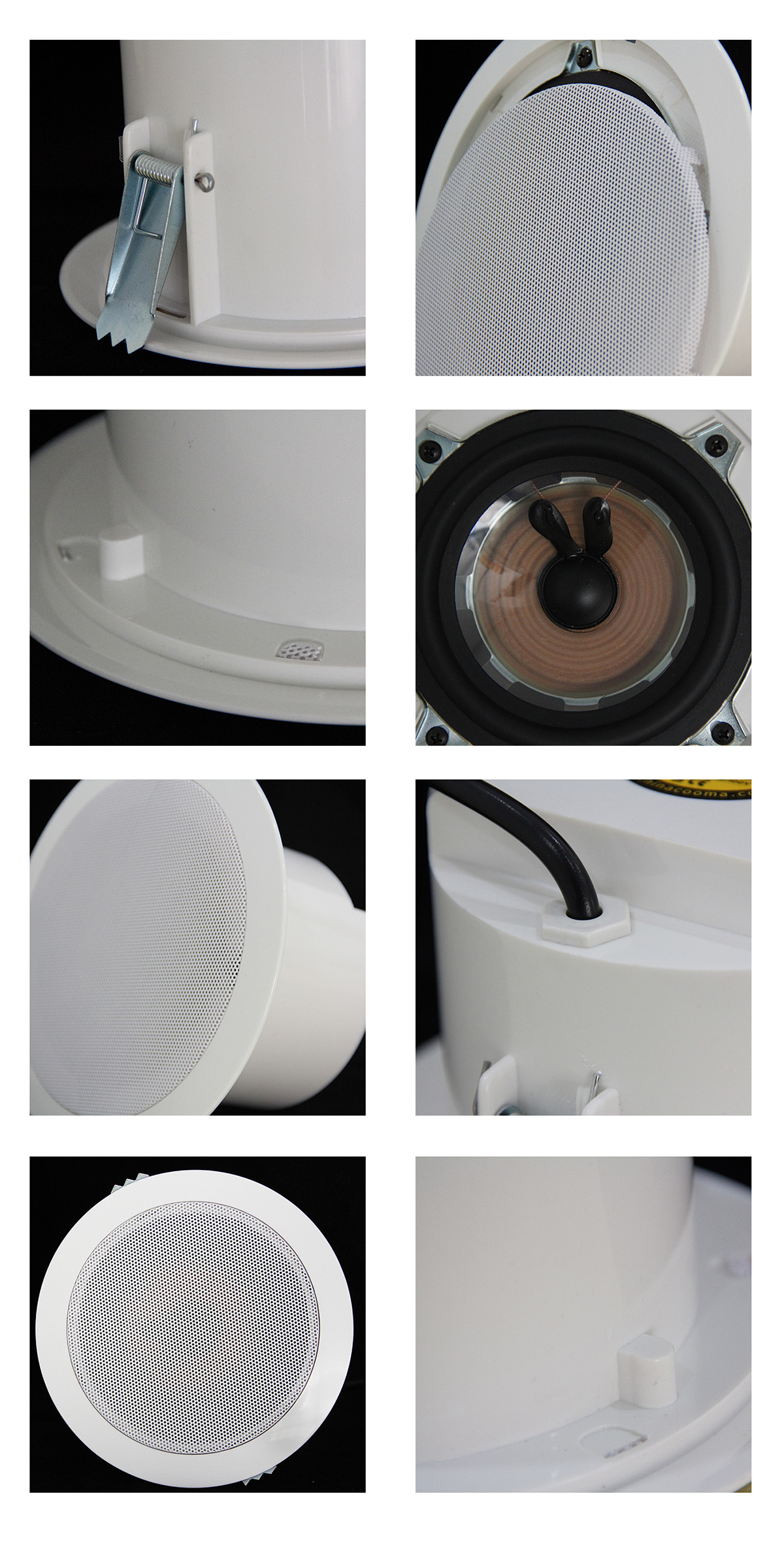

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,
    Holes are opened according
    to the mounting size.


    2. Aim the horn at the opening hole, and open the spring clip.


    3. Push up hard to make the little flower horn Flatten close to the ceiling surface.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-598(WATER PROOF)

68*35.5*35.5

20

0.086

16.60

20.10

6040

15340

M-599(WATER PROOF)

61.5*42*41.5

20

0.107

18.20

21.70

4860

12340

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM

08

COMPANY INFORMATION

PANORAMA

PANORAMA

Injection

Injection

TRANSFORMER

TRANSFORMER

LOUDSPEAKER

LOUDSPEAKER

Electronic PCB

Electronic PCB

Assembly

Assembly

inspection room

inspection room

Silence room

Silence room

sample room

sample room

09

Certificate

  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate

Ningbo Cooma Acoustics Co., Ltd.

Ningbo Cooma Acoustics Co., Ltd. is a M-599 5.5inch water proof full range 3W ceiling speaker Suppliers and M-599 5.5inch water proof full range 3W ceiling speaker Company, mainly producing ceiling speakers, wall speakers, column speakers, Bluetooth speakers, power amplifiers, mixer amplifiers and other public broadcast peripherals and intelligent speakers.

The company was founded in 2009, plant area of 15,000 square meters, the existing more than 200 employees, the company in the entire daily operation process to fully implement the ISO9001 quality management system, to systematize, standardize, standardized operation, to ensure long-term stability to provide high-quality products. Our products have CE, ROHS2.0, IP65 and other international safety certifications, which can meet the mandatory requirements of customers around the world for various safety certifications.

The company gives priority to the introduction of fully automated speaker unit production lines, reducing the accumulation of products in progress, streamlined production to ensure that each unit has a high yield and consistency, which is not only a strong guarantee for product production delivery, but also a strong guarantee for product quality.

Today's Cooma has become a professional audio production enterprise integrating R&D, production, sales and service, always taking high-quality guarantee and professional service as the brand commitment, taking the long-term value of customers as the brand core, adhering to the development concept of product quality, production scale, operation specialization, business regionalization, and management differentiation, tree quality banner, and do high-quality enterprises.
