M-60T 60W 4-inch cloth edge full frequency indoor column speaker

01

Product category

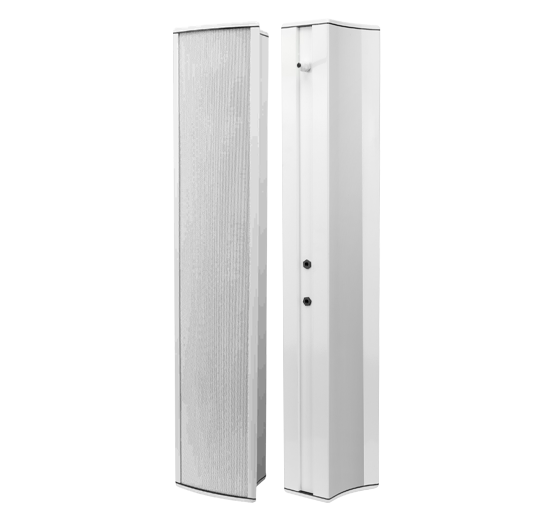

M-60T 60W 4-inch cloth edge full frequency indoor column speaker

Features:

  • 4-inch 100V column speaker
  • RMS power 60W
  • With 6 pieces cloth edge full frequency loudspeaker

03

DATA INFORMATION

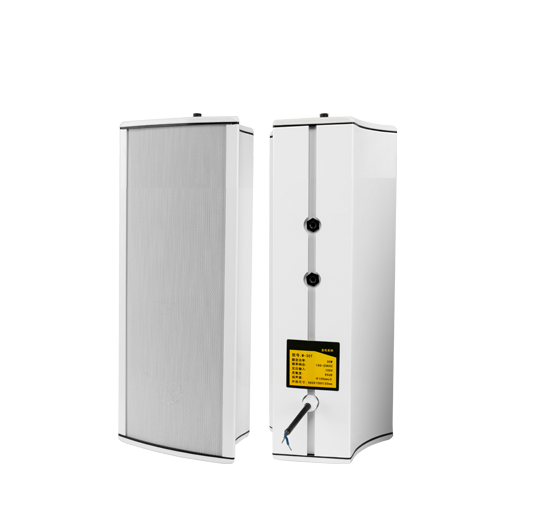

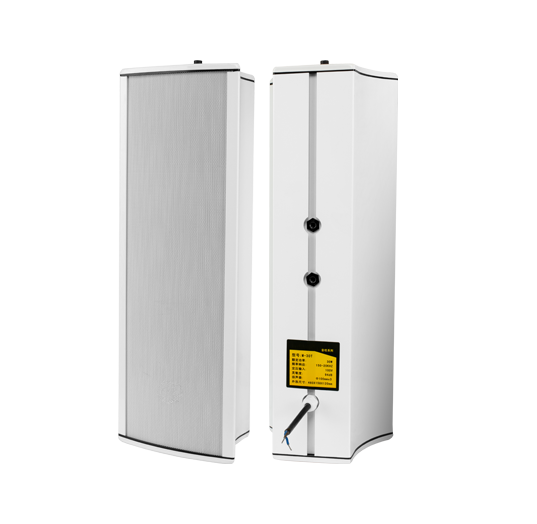

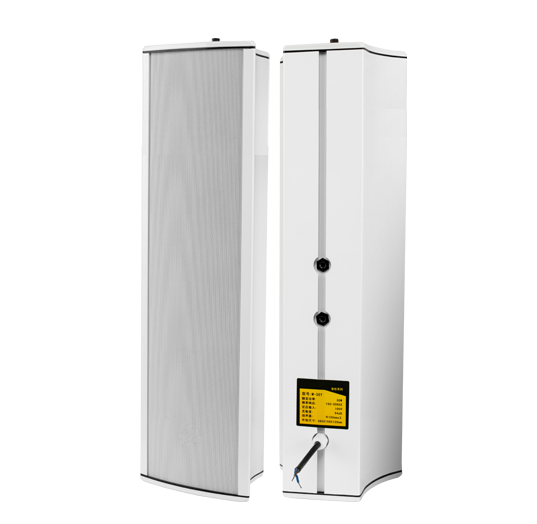

ITEM M-20T M-30T M-40T M-60T
RMS POWER 20W 30W 40W 60W
VOLTAGE INPUT 100V
SENSITIVITY 90dB±3dB
FQ RESPONSE 150hz-20Khz
LOUDSPEAKER 4“(Φ103mm×2)20mm cone 4“(Φ103mm×3)20mm cone 4“(Φ103mm×4)20mm cone 4“(Φ103mm×6)20mm cone
OUTSIDE SIZE 120×158×330mm 120×158×440mm 120×158×552mm 120×158×776mm
INNER BOX SIZE 335×205×410mm(2PCS) 335×205×520mm(2PCS) 335×205×630mm(2PCS) 335×205×860mm(2PCS)
MATERIAL Aluminum Alloy
COLOR WHITE
N.W. 2.8kg 3.6kg 4.6kg 6.3kg



04

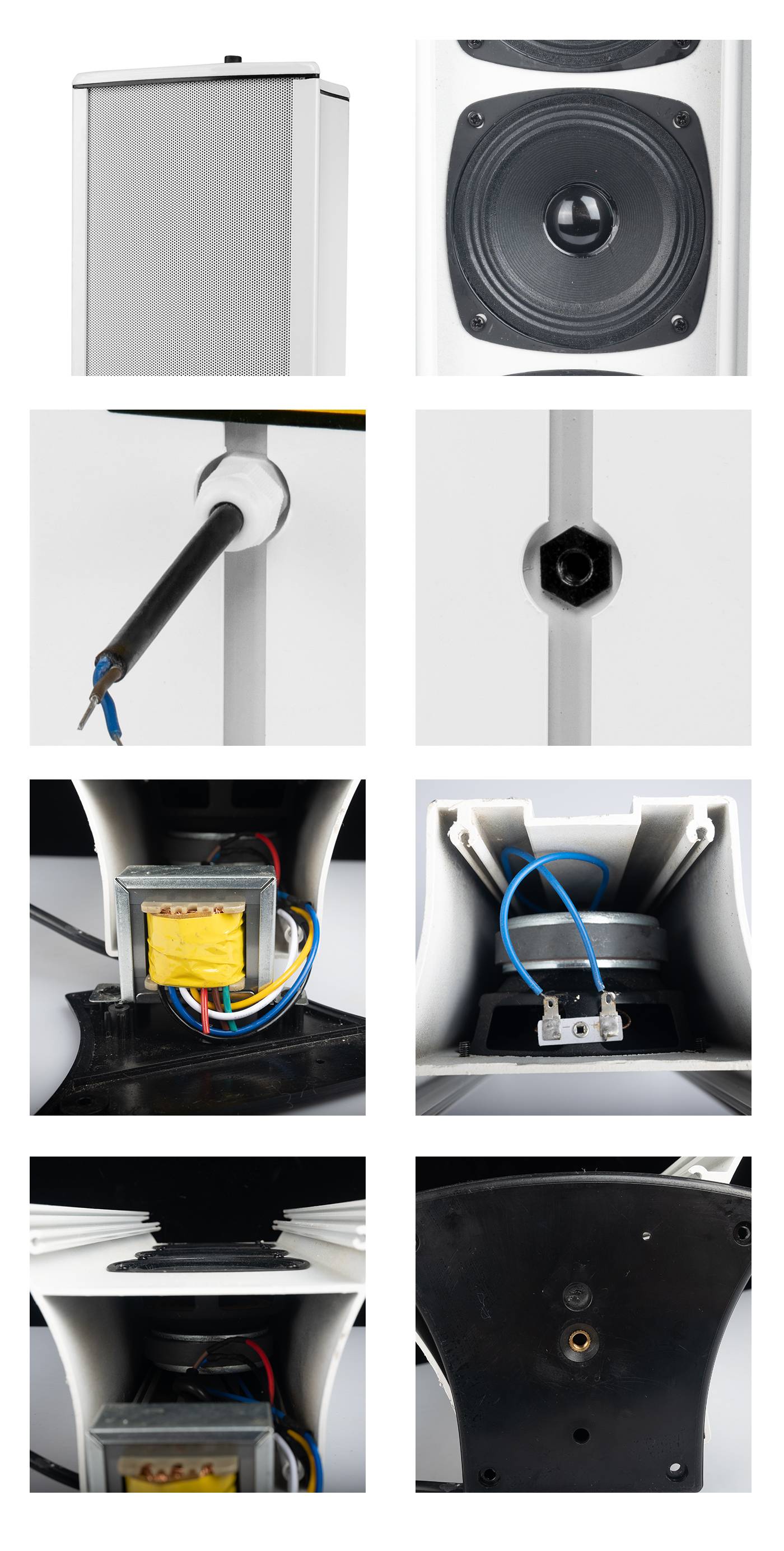

PRODUCT DETAILS

05

installation drawings

How to install

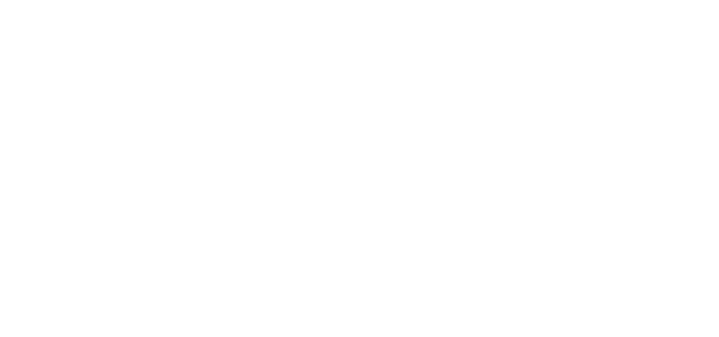

  • Installation schematic:

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing

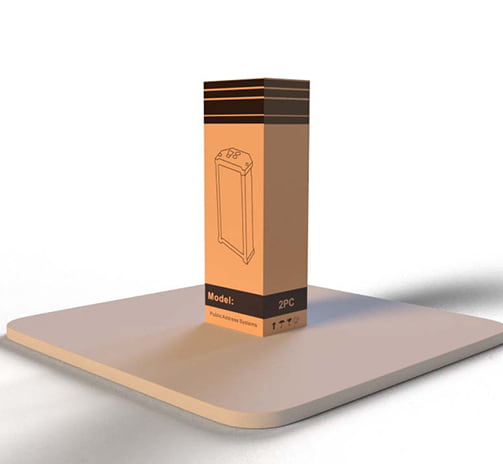

inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-20T 64*35.5*43 6 0.098 20.58 22.58 1590 4038
M-30T 43*35.5*54 4 0.082 14.4 16.4 1268 3220
M-40T 43*35.5*65 4 0.099 18.4 20.4 1052 2668
M-60T 35.5*22.5*88 2 0.07 12.94 14.94 742 1886

Accessories:

Required

——Mounting bracket + matching screws

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB

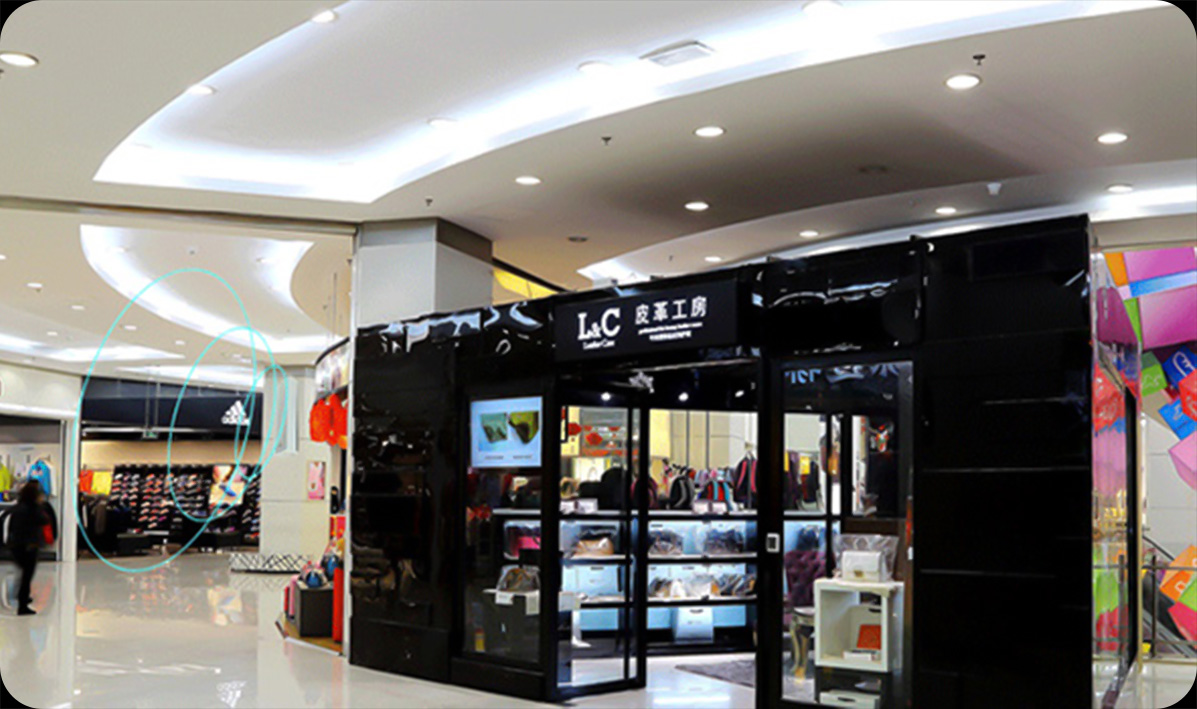

SHOPPING MALL
