M-30AC 60W 100V outdoor waterproof speakers PA system column speaker

01

Product category

M-30AC 60W 100V outdoor waterproof speakers PA system column speaker

Features:

  • 5 inch 100V column speaker
  • 60W RMS power
  • 2pieces 25mm cone woofer,25mm silk film tweeter
  • Made by aluminum alloy ,water proof outdoor very good for the sport room,school ground

03

DATA INFORMATION

ITEM M-20AC M-30AC M-50AC
RMS POWER 30W 60W 90W
VOLTAGE INPUT 100V 100V 100V
SENSITIVITY 91±3dB 91±3dB 91±3dB
FQ RESPONSE 80hz-18Khz 80hz-18Khz 80hz-18Khz
LOUDSPEAKER 5“(Φ131×1)  25mm cone/25mm×1  5“(Φ131×2)  25mm cone/25mm×1  5“(Φ131×4)  25mm cone/25mm×1
OUTSIDE SIZE 364×185×126mm 514×185×126mm 812×185×126mm
INNER BOX SIZE 195×130×400mm 195×130×550mm 195×130×1000mm
TRANSFORMER SIZE 15×25 22×28 22×28
MATERIAL Aluminum Alloy Aluminum Alloy Aluminum Alloy
COLOR WHITE WHITE WHITE
N.W. 3.36kg 5.46kg 8.26kg

04

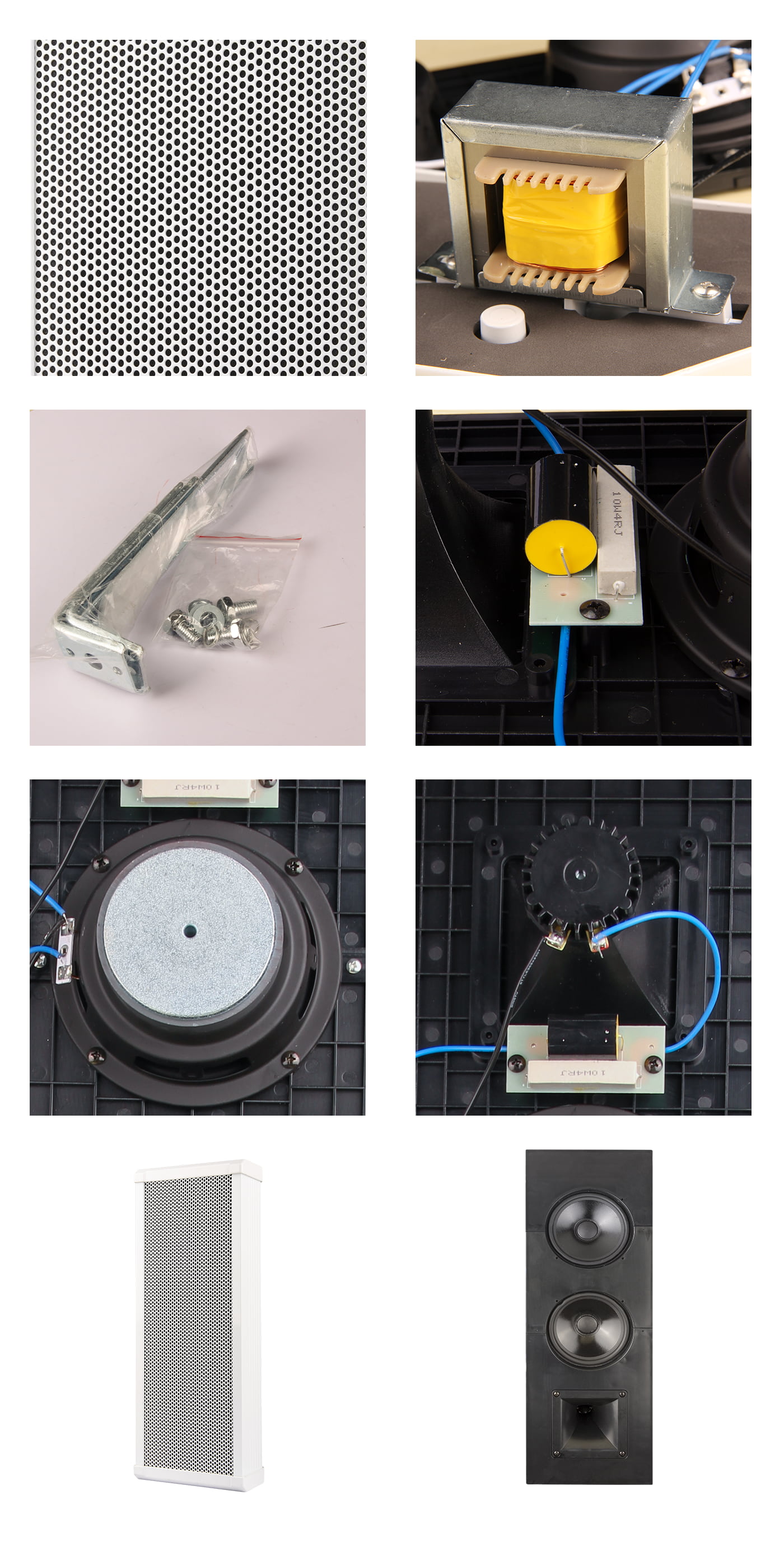

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

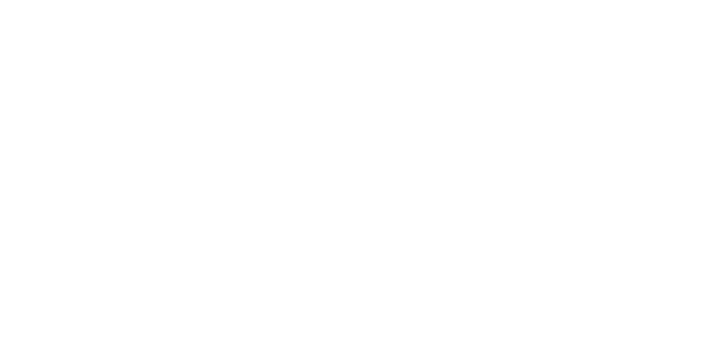

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-20AC 61*42*29.5 0.076  6 20.16  22.16 2052 5208
M-30AC 57*42*28 0.067  4 21.84  23.84 1552 3940
M-50AC 29*21.5*102.5 0.064  2 16.52  18.52 812 2062

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM

08

COMPANY INFORMATION

PANORAMA

PANORAMA

Injection

Injection

TRANSFORMER

TRANSFORMER

LOUDSPEAKER

LOUDSPEAKER

Electronic PCB

Electronic PCB

Assembly

Assembly

inspection room

inspection room

Silence room

Silence room

sample room

sample room

09

Certificate

  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate

Ningbo Cooma Acoustics Co., Ltd.

Ningbo Cooma Acoustics Co., Ltd. is a M-30AC 60W 100V outdoor waterproof speakers PA system column speaker Suppliers and M-30AC 60W 100V outdoor waterproof speakers PA system column speaker Company, mainly producing ceiling speakers, wall speakers, column speakers, Bluetooth speakers, power amplifiers, mixer amplifiers and other public broadcast peripherals and intelligent speakers.

The company was founded in 2009, plant area of 15,000 square meters, the existing more than 200 employees, the company in the entire daily operation process to fully implement the ISO9001 quality management system, to systematize, standardize, standardized operation, to ensure long-term stability to provide high-quality products. Our products have CE, ROHS2.0, IP65 and other international safety certifications, which can meet the mandatory requirements of customers around the world for various safety certifications.

The company gives priority to the introduction of fully automated speaker unit production lines, reducing the accumulation of products in progress, streamlined production to ensure that each unit has a high yield and consistency, which is not only a strong guarantee for product production delivery, but also a strong guarantee for product quality.

Today's Cooma has become a professional audio production enterprise integrating R&D, production, sales and service, always taking high-quality guarantee and professional service as the brand commitment, taking the long-term value of customers as the brand core, adhering to the development concept of product quality, production scale, operation specialization, business regionalization, and management differentiation, tree quality banner, and do high-quality enterprises.
