M-60EA 260W 4-inch 4Ohm conference system linear column speaker

01

Product category

M-60EA 260W 4-inch 4Ohm conference system linear column speaker

Features:

  • Conference system linear column speaker
  • 260W RMS power
  • 6pcs 4“woofer,1pc 25mm driving tweeter
  • Made by aluminum alloy

02

DATASHEET

M-20EA 50W 4-inch 8Ohm conference system linear column speaker

M-30EA 100W 4-inch 4Ohm conference system linear column speaker

M-50EA 200W 4-inch 8Ohm conference system linear column speaker

M-60EA 260W 4-inch 4Ohm conference system linear column speaker

03

DATA INFORMATION

ITEM M-20EA M-30EA M-50EA M-60EA
RMS POWER 50W 100W 200W 260W
IMPEDANCE
SENSITIVITY 90±3dB 91±3dB 92±3dB 93±3dB
FQ RESPONSE 80hz-20Khz 65hz-20Khz 65hz-20Khz 65hz-20Khz
LOUDSPEAKER

woofer:4“×1

tweeter:25mm×1

woofer:4“×2

tweeter:25mm×2

woofer:4“×4

tweeter:25mm×1

woofer:4“×6

tweeter:25mm×1

OUTSIDE SIZE 160×160×392mm 160×160×500mm 160×160×780mm 160×160×1000mm
INNER BOX SIZE 205×205×475mm 205×205×580mm 205×205×860mm 205×205×1055mm
MATERIAL Aluminum Alloy
COLOR BLACK
N.W. 3.5kg 6kg 7.5kg 10.4kg

04

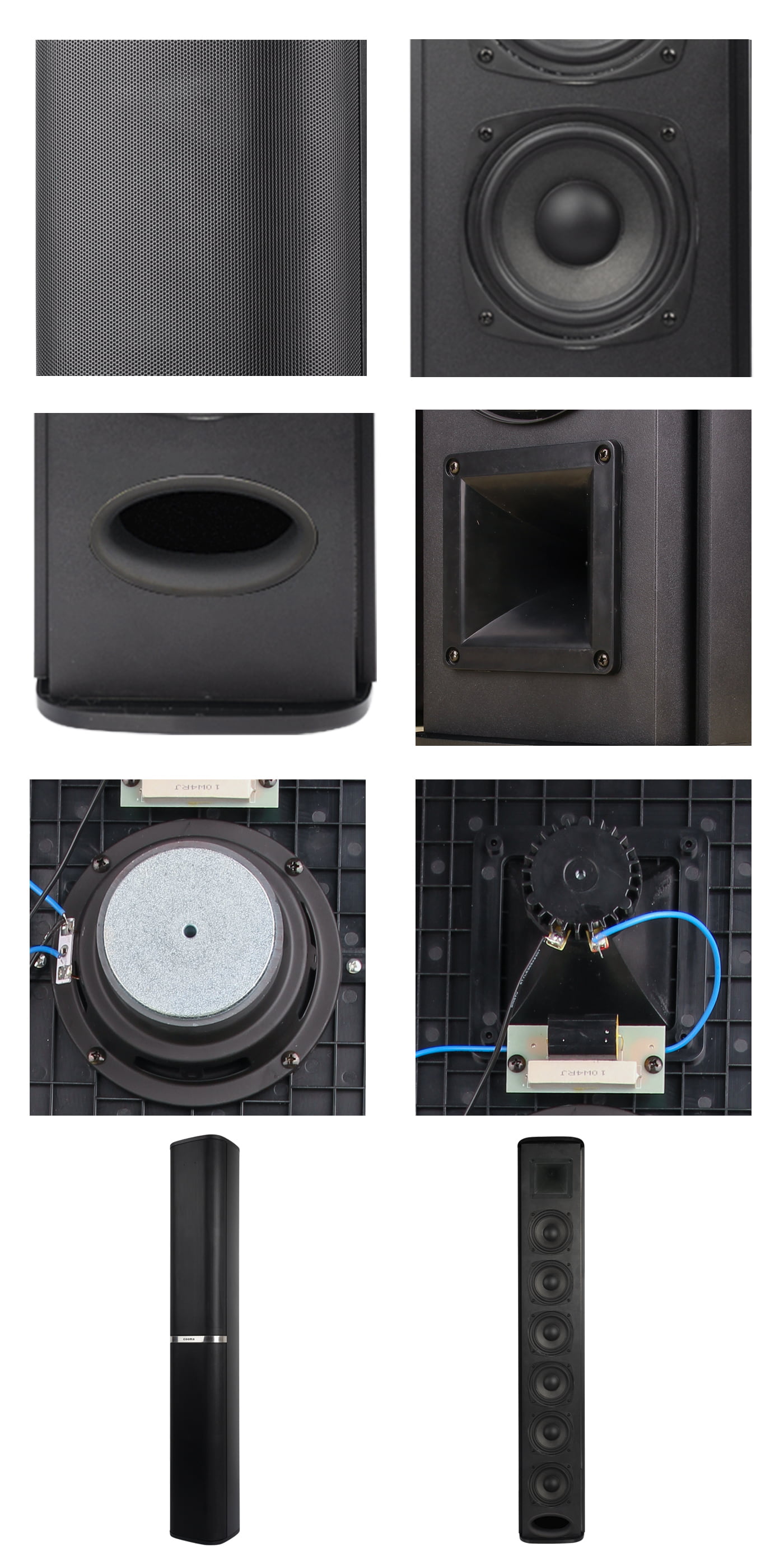

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

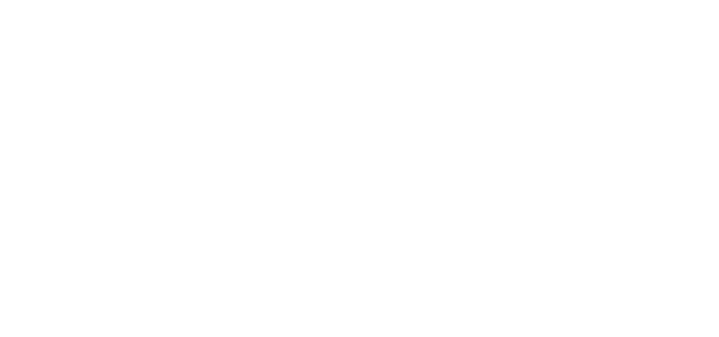

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 4Ω output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-20EA 43*43*50 0.09245 4 14 16 1124 2852
M-30EA 43*22.5*60.5 0.0585 2 12 14 888 2256
M-50EA 43*22.5*88.5 0.086 2 15 17 604 1534
M-60EA 43*22.5*108 0.104 2 20.8 22.8 500 1270

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM
