M-60S 5 inch 90w Coaxial Column Speaker

01

Product category

M-60S 5 inch 90w Coaxial Column Speaker

Features:

  • 5 inch 100V outdoor column speaker
  • 90W big power
  • With 6 pieces loudspeaker,3pcs 20mm cone woofer,3pcs coaxial two way loudspeaker
  • Made by aluminum alloy

03

DATA INFORMATION

ITEM M-20S M-30S M-40S M-60S
RMS POWER 30W 45W 60W 90W
VOLTAGE INPUT 100V 100V 100V 100V
SENSITIVITY 90dB 90dB 90dB 90dB
FQ RESPONSE 80hz-18Khz 80hz-18Khz 80hz-18Khz 80hz-18Khz
LOUDSPEAKER 5“(Φ120mm×2)20/13mm cone 5“(Φ120mm×3)20/13mm cone 5“(Φ120mm×4)20/13mm cone 5“(Φ120mm×6)20/13mm cone
OUTSIDE SIZE 364×150×105mm 488×150×105mm 612×150×105mm 860×150×105mm
INNER BOX SIZE 170×115×385mm 170×115×510mm 170×115×635mm 170×115×880mm
TRANSFORMER SIZE 19×25 19×25 19×25 19×25
MATERIAL Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
COLOR WHITE WHITE WHITE WHITE
N.W. 3.2kg 4.1kg 5.1kg 7.0kg



04

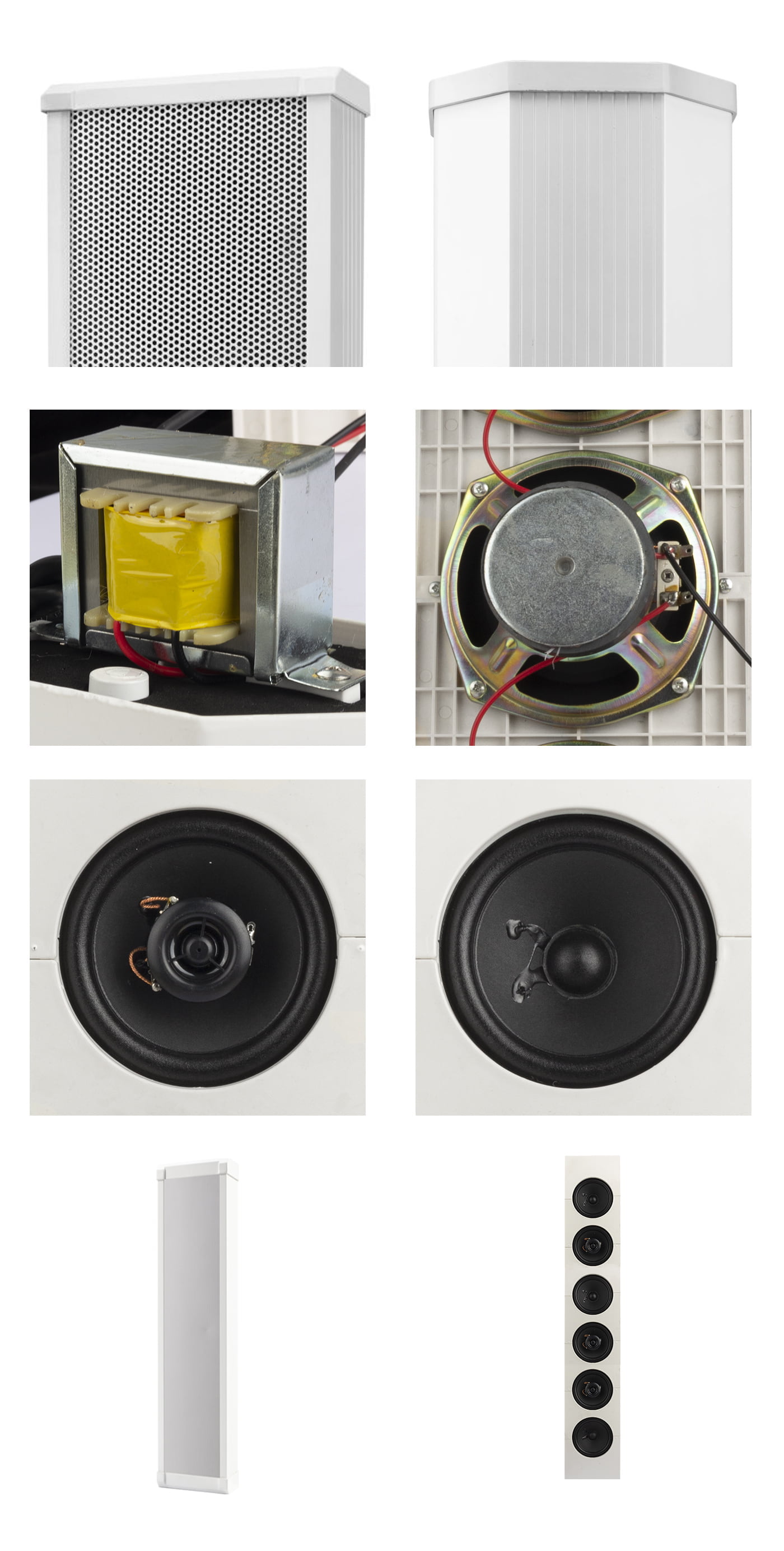

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

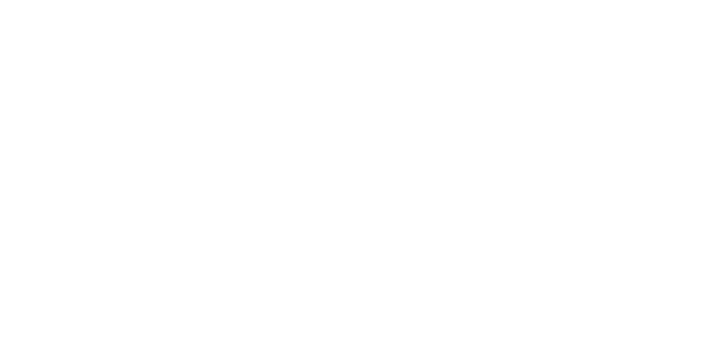

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-20S 53*40*26 0.055  6 19.20  21.2 2838 7200
M-30S 53*36*25.5 0.049  4 16.40  18.4 2124 5388
M-40S 65*35.5*26 0.060  4 20.40  22.4 1732 4400
M-60S 26*19*90 0.044  1 7.00  9 591 1500
