Wholesale M-80H 3 inch aluminum speaker with 8pcs loudspeaker indoor column speaker

Home / Products / Column Speaker / M-80H 3 inch aluminum speaker with 8pcs loudspeaker indoor column speaker
M-80H 3 inch aluminum speaker with 8pcs loudspeaker indoor column speaker

01

Product category

M-80H 3 inch aluminum speaker with 8pcs loudspeaker indoor column speaker

Features:

  • 3 inch 100V indoor column speaker
  • 40W RMS power
  • With 8 pieces loudspeaker,14mm cone
  • Made by aluminum alloy
  • Hot selling column speaker

03

DATA INFORMATION

ITEM M-20H M-40H M-60H M-80H
RMS POWER 10W 20W 30W 40W
VOLTAGE INPUT 100V 100V 100V 100V
SENSITIVITY 91dB 91dB 91dB 91dB
FQ RESPONSE 90hz-16Khz 90hz-16Khz 90hz-17Khz 90hz-17Khz
LOUDSPEAKER 3“(Φ70mm×2)14mm cone 3“(Φ70mm×4)14mm cone 3“(Φ70mm×6)14mm cone 3“(Φ70mm×8)14mm cone
OUTSIDE SIZE 282×126×75mm 425×126×75mm 548×126×75mm 691×126×75mm
INNER BOX SIZE 335×205×410mm 335×205×445mm 335×205×585mm 335×205×725mm
MATERIAL Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
COLOR WHITE WHITE WHITE WHITE
N.W. 1.765kg 2.0175kg 2.5kg 3.2kg



04

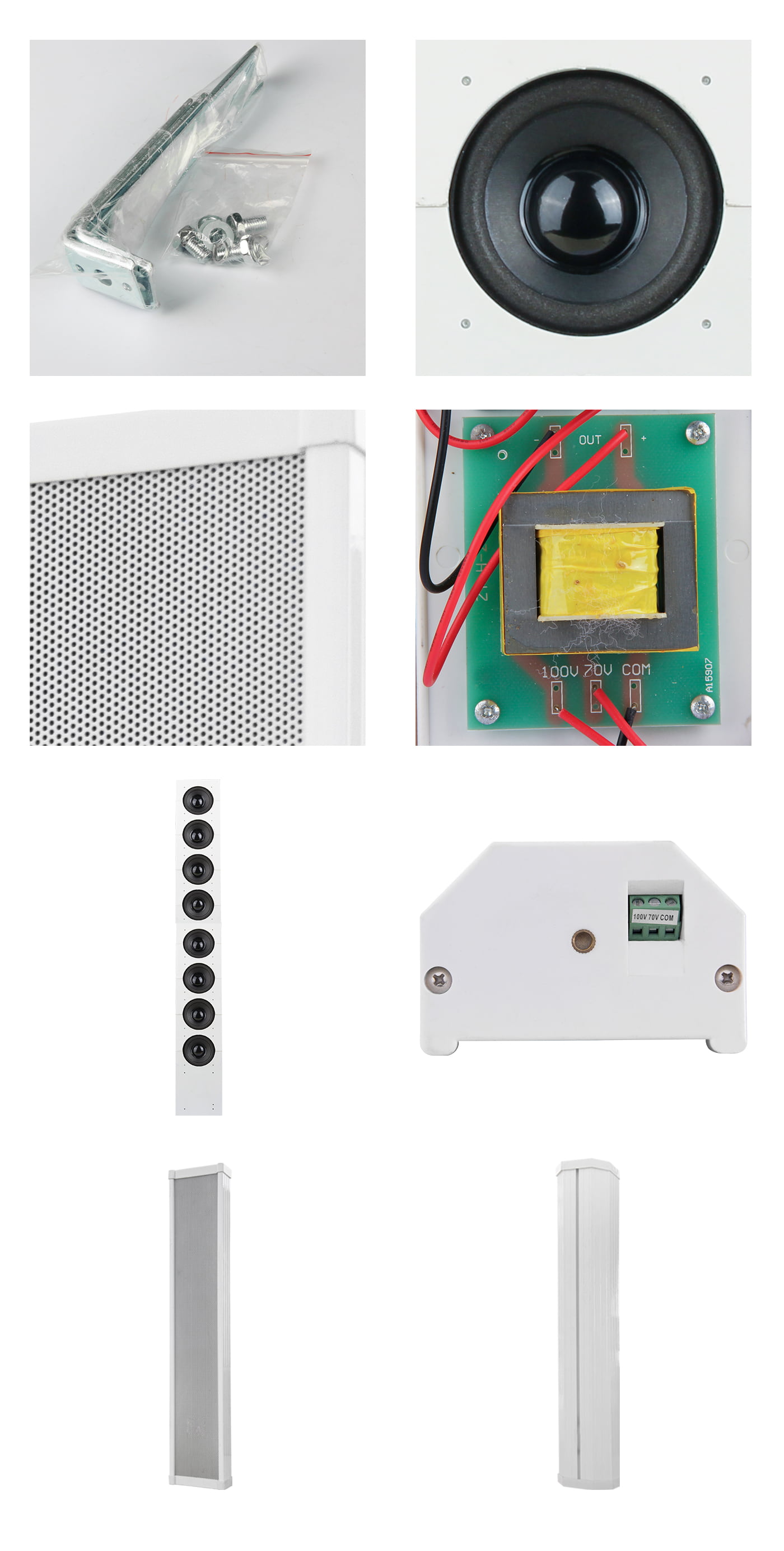

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-20H 36*31.5*32 0.036  12 21.18 23.86 8664 21996
M-40H 32*25*46.5 0.037  8 15.28 17.63 5624 14272
M-60H 32*25*60.5 0.048  8 20 22.54 4336 11000
M-80H 32*25*74.5 0.060  8 25.6 28 3464 8800

Accessories:
