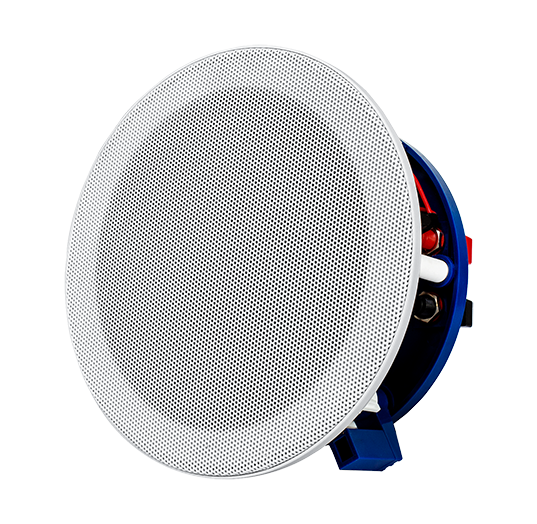

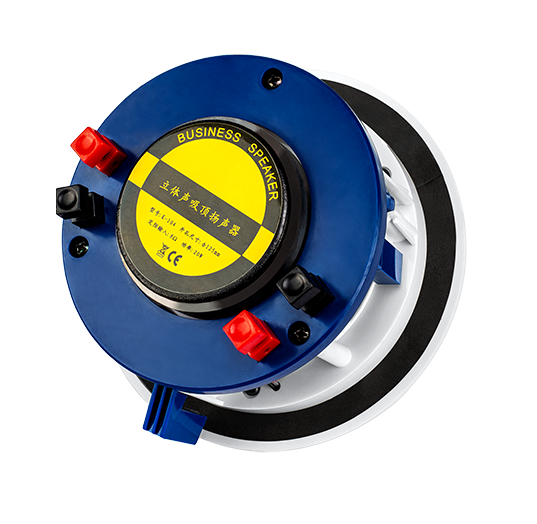

K-104 4” three-way best stereo sound hifi ceiling speaker

Features:

  • 4inch woofer, 2pcs 13mm tweeter
  • 15W RMS power
  • Best stereo sound in one speaker
  • rms power 20W

03

DATA INFORMATION

ITEM

K-104

RMS POWER

15W

MAX POWER

20W

IMPEDANCE INPUT

SENSITIVTY

90dB

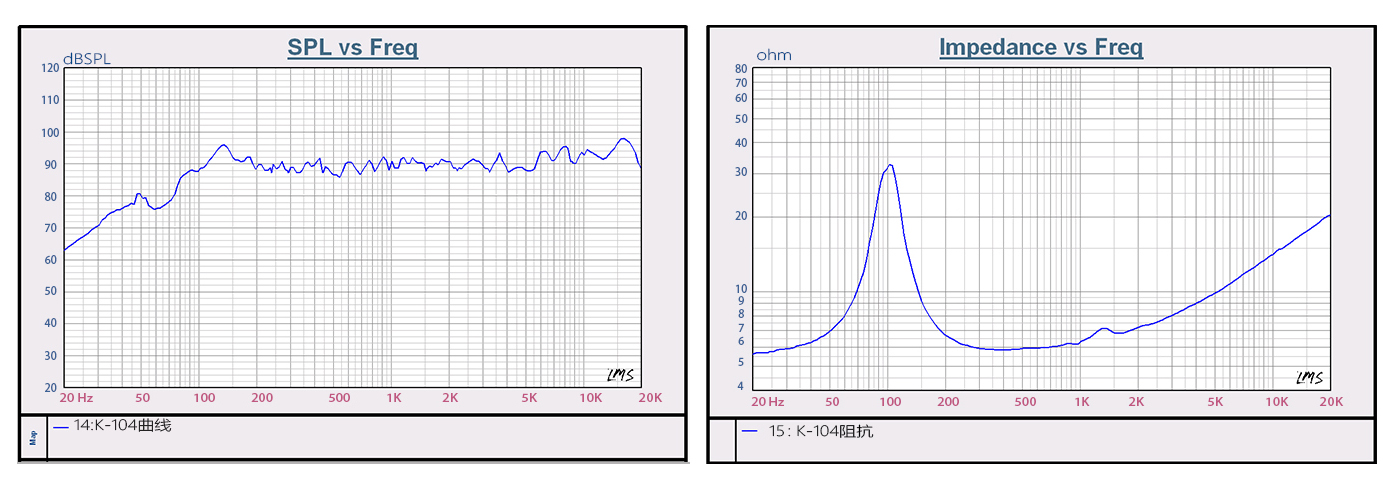

FQ RESPONSE

90hz-18Khz

LOUDSPEAKER

4“(Φ100mm)25/13*2mm cone

OUTSIDE SIZE

Φ146mm

HOLE SIZE

Φ120mm

INNER BOX SIZE

160×160×95mm

MATERIAL

ABS

COLOR

WHITE

N.W.

0.76kg

04

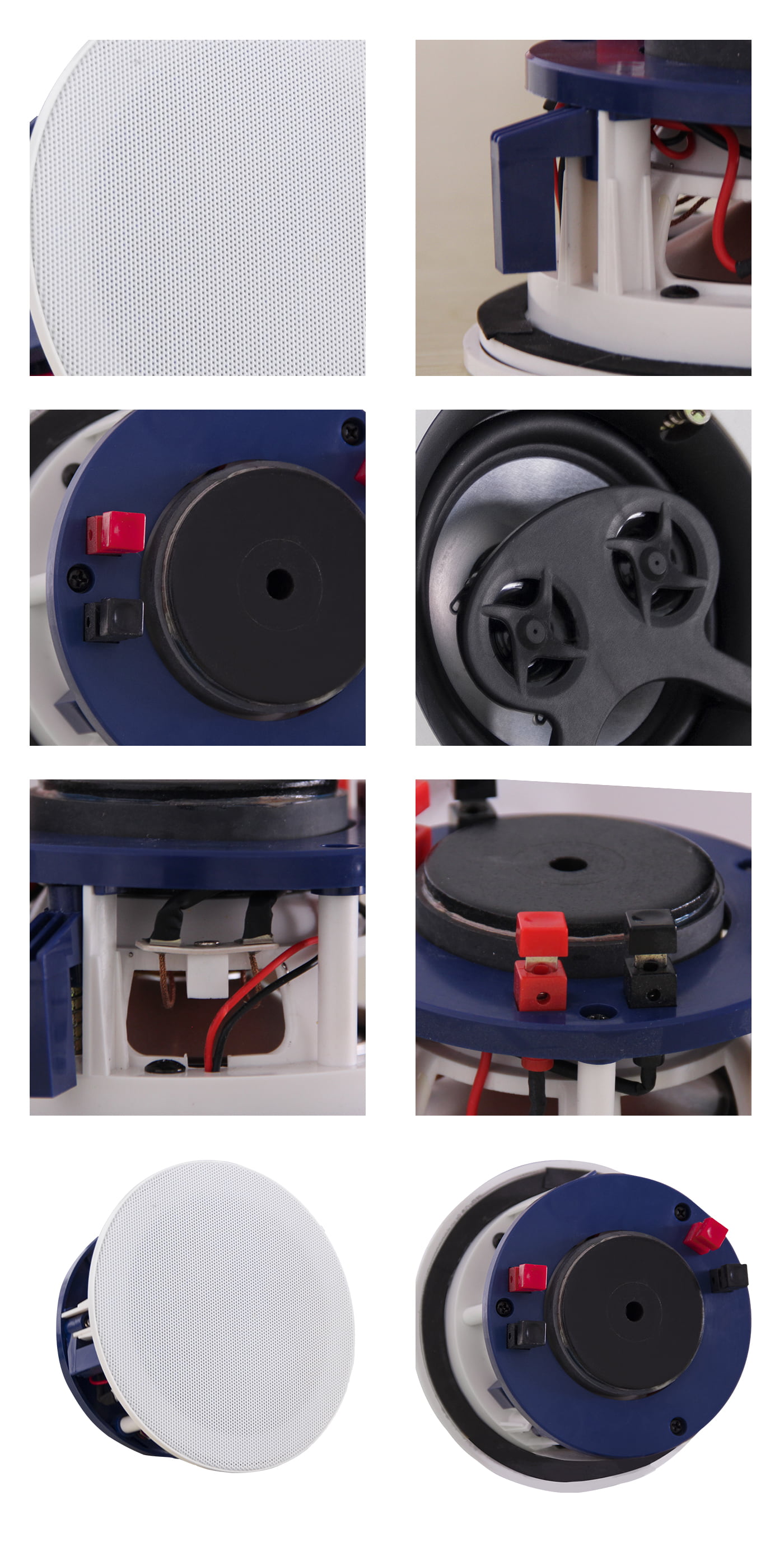

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,holes are opened according to the mounting size,connect the impedance input wire.


    2. Remove the grille and carefully place the speakers  in the mounting holes.


    3.  Use a screwdriver to lock the mounting bracket and install the grille.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω output is connected to the required corresponding wire.

06

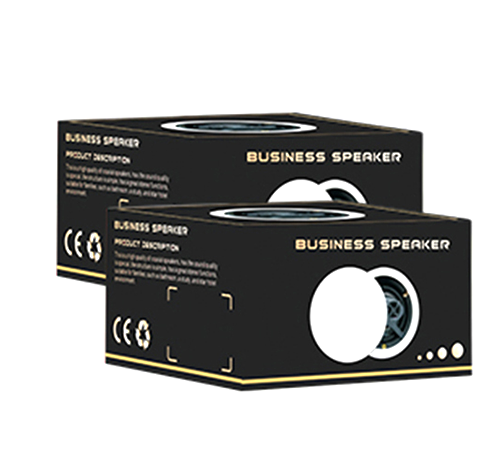

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

K-104

34*34*21

8

0.024

6.08

9.58

8664

22000

Accessories:

Required

——
