K-105A angle 15 degrees 5

01

Product category

K-105A angle 15 degrees 5"woofer in-ceiling of conference

Features:

  • 5inch angle 15 degrees woofer, 25mm tweeter
  • With cross over best sound in one speaker for the back ground music
  • rms power 60W

03

DATA INFORMATION

ITEM

K-105A

RMS POWER

60W

MAX POWER

90W

IMPEDANCE INPUT

SENSITIVTY

95±3dB

FQ RESPONSE

50hz-20Khz

LOUDSPEAKER

5“(Φ135mm)25/25mm cone

OUTSIDE SIZE

225×115mm

HOLE SIZE

Φ195mm

INNER BOX SIZE

260×260×150mm

MATERIAL

ABS

COLOR

WHITE

N.W.

1.13kg



04

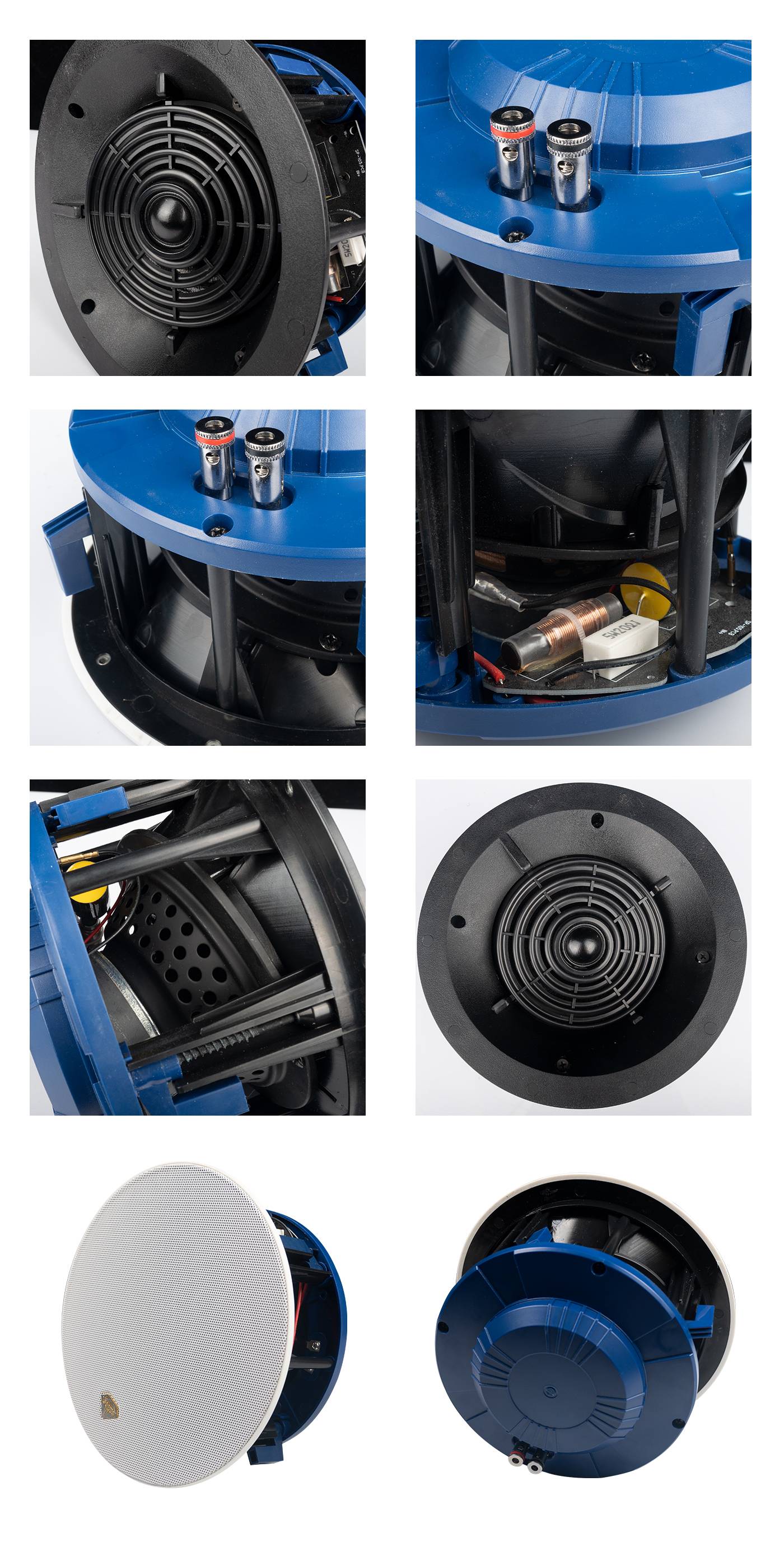

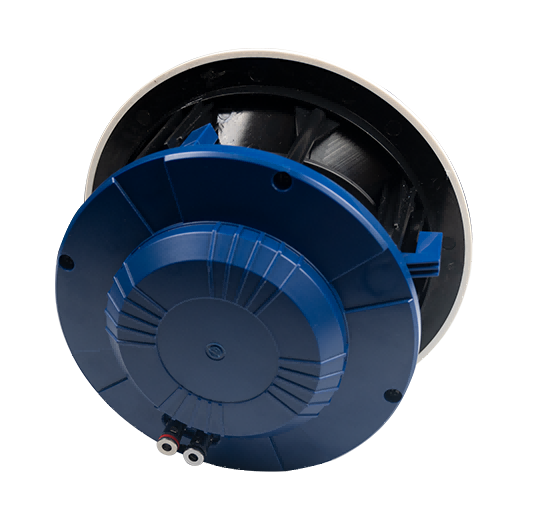

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,holes are opened according to the mounting size,connect the impedance input wire.


    2.Remove the grille and carefully place the speakers  in the mounting holes.


    3.Use a screwdriver to lock the mounting bracket and install the grille.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

K-105A

53.5*27.5*32

4

0.047

4.52

8.02

2212

5616

Accessories:
