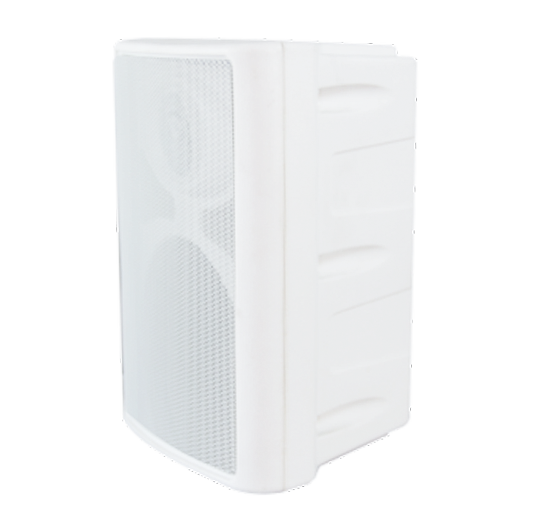

M-204 5.5” 20W 100V TWO way hifi conference wall speaker

01

Product category

M-204 5.5” 20W 100V TWO way hifi conference wall speaker

Features:

  • 5.5 inch 100V hifi conference wall speaker
  • With transformer 20W
  • TWO way wall speaker,25mm cone woofer,25mm tweeter
  • Materal is ABS
  • Full white or full black

03

DATA INFORMATION

ITEM M-203 M-204 M-207
RMS POWER 15W 20W 30W
MAX POWER 30W 40W 50W
VOLTAGE INPUT 100V 100V 100V
SENSITIVITY 92dB±3dB 92dB±3dB 92dB±3dB
FQ RESPONSE 90hz-18Khz 90hz-18Khz 90hz-18Khz
LOUDSPEAKER 5.5“(Φ135mm)25/25mm cone 5.5“(Φ135mm)25/25mm cone 6.5“(Φ166mm)25/25mm cone
OUTSIDE SIZE 165×145×230mm 198×182×253mm 207×200×279mm
INNER BOX SIZE 173×146×245mm 203×187×265mm 228×205×290mm
TRANSFORMER SIZE 19×25 19×25 16×20
MATERIAL ABS ABS ABS
COLOR BLACK/WHITE BLACK/WHITE BLACK/WHITE
N.W. 2.16kg 2.78kg 3.16kg

04

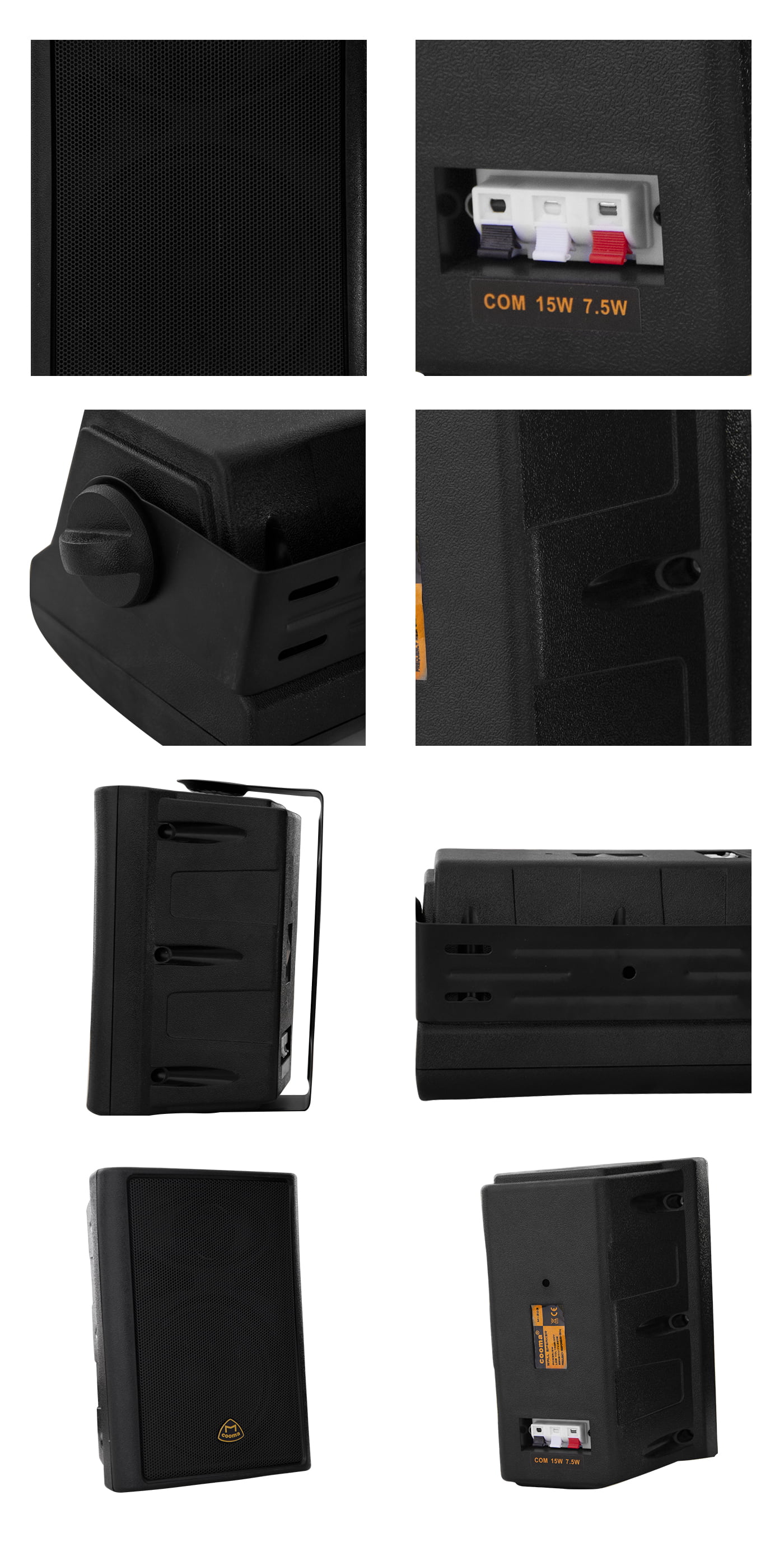

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

  • Dimensions

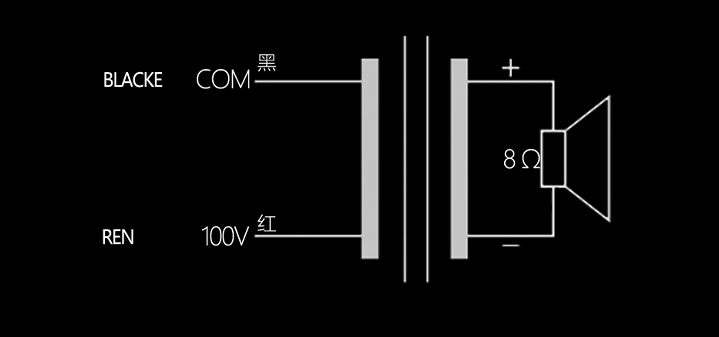

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

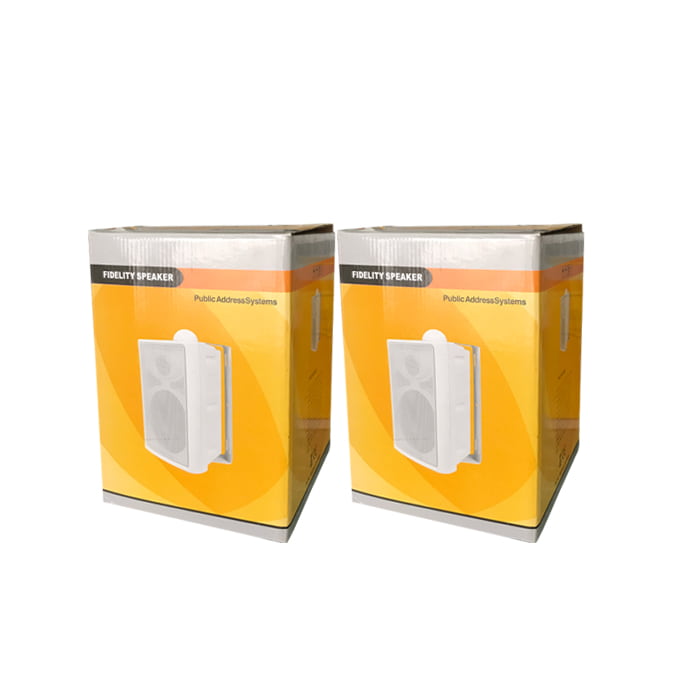

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-203 46*37*26.5 0.045  6 12.96  15.46  3468 8802
M-204 57.5*43*28 0.069  6 16.68  18.26  2262 5742
M-207 48*43*30.5 0.063  4 12.64  14.45  1652 4192

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL

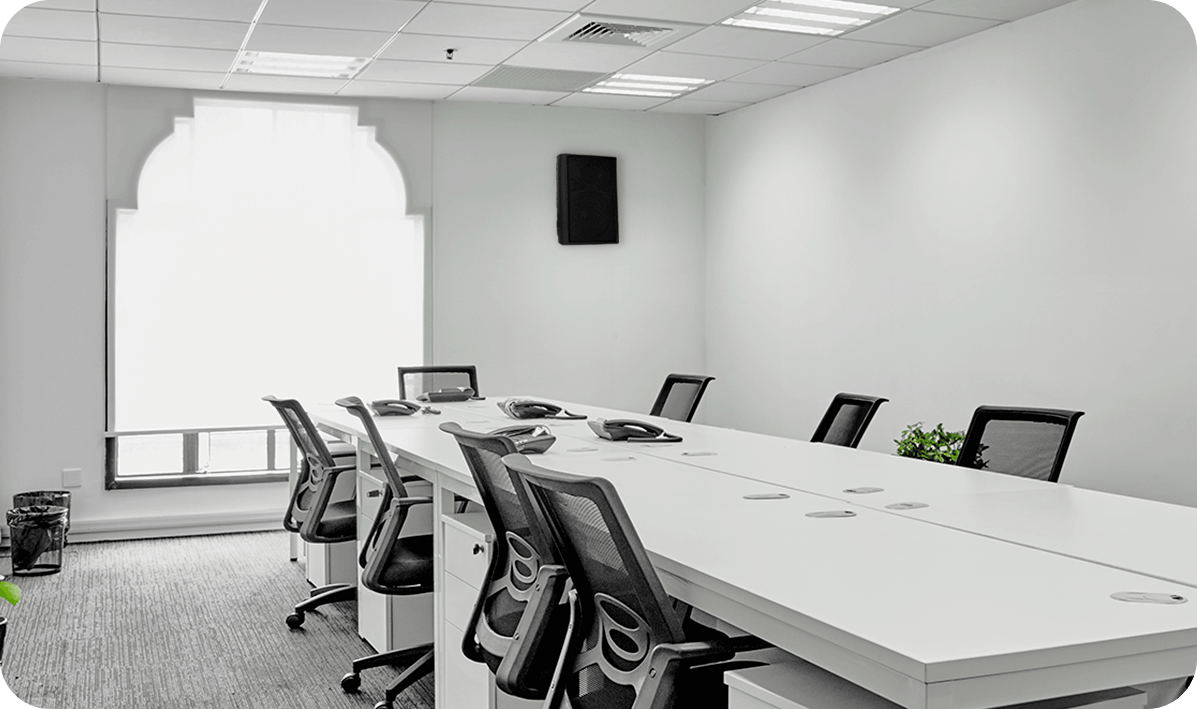

MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM
