Wholesale M-218 5" column speaker with 4pcs full range loudspeaker hifi conference speaker

Home / Products / Hifi Conference Speaker / M-218 5" column speaker with 4pcs full range loudspeaker hifi conference speaker
M-218 5

01

Product category

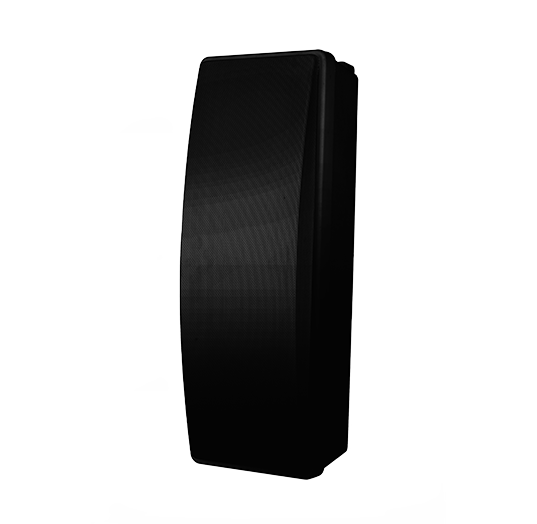

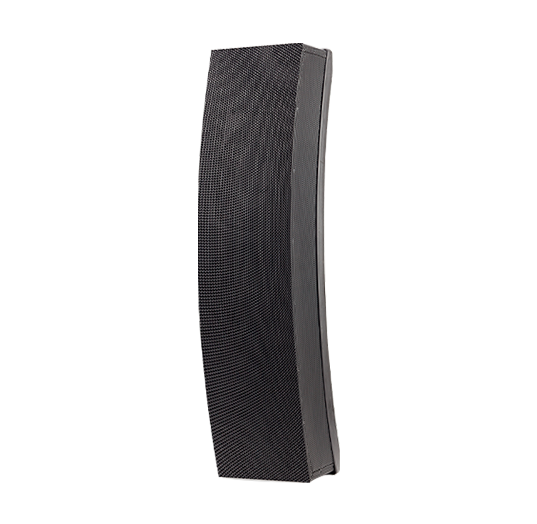

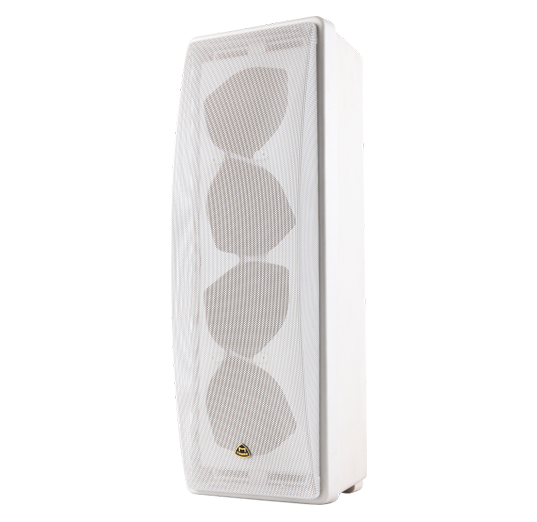

M-218 5" column speaker with 4pcs full range loudspeaker hifi conference speaker

Features:

  • 5 inch hifi conference wall speaker
  • 8ohm and 120W wall speaker
  • Full range speaker,25mm cone
  • Material is ABS
  • Full white wall speaker

03

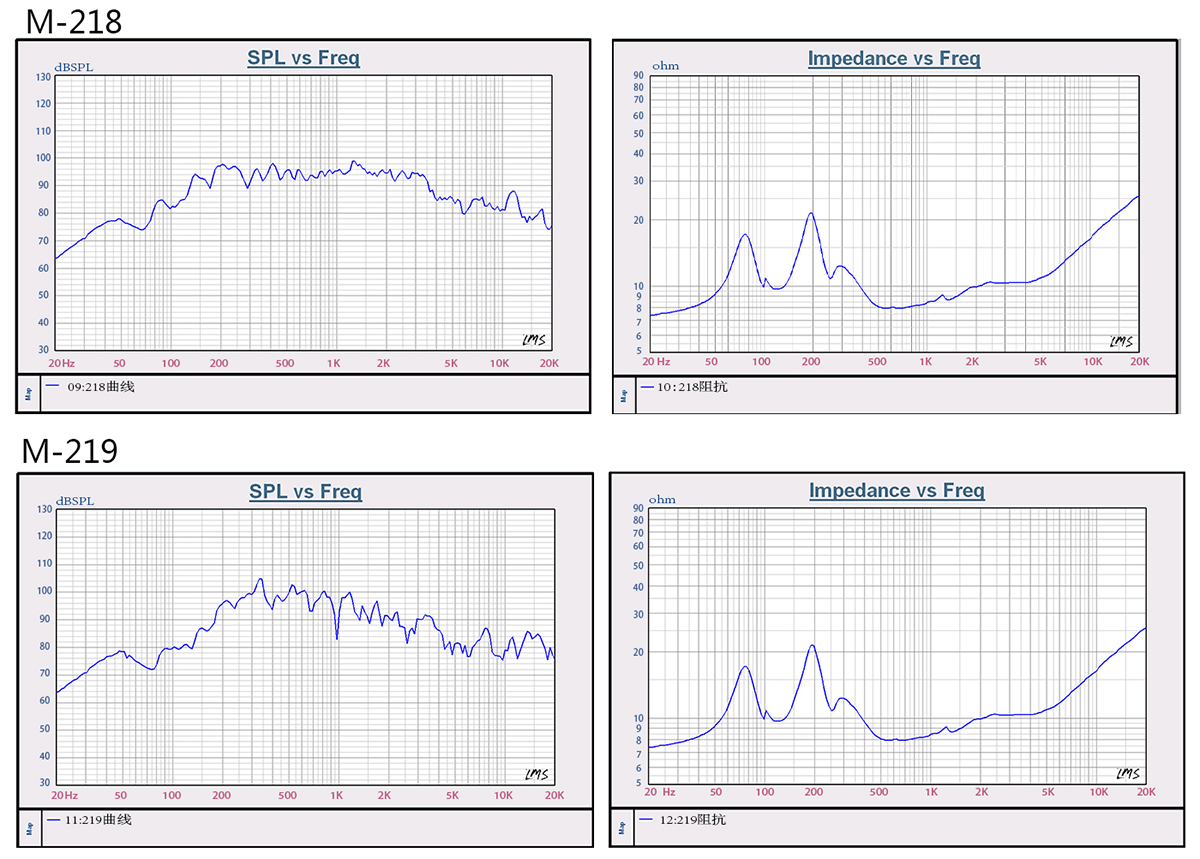

DATA INFORMATION

ITEM M-218 M-219
RMS POWER 120W 150W
MAX POWER 240W 300W
IMPEDANCE INPUT
SENSITIVITY 96dB±3dB 96dB±3dB
FQ RESPONSE 130hz-18Khz 130hz-18Khz
LOUDSPEAKER 5“(Φ120mm×4)25mm cone 5“(Φ120mm×5)25mm cone
OUTSIDE SIZE 205×195×590mm 146×171×597mm
INNER BOX SIZE 465×255×645mm 465×215×665mm
MATERIAL ABS ABS
COLOR BLACK BLACK
N.W. 8.46kg 6.9kg

04

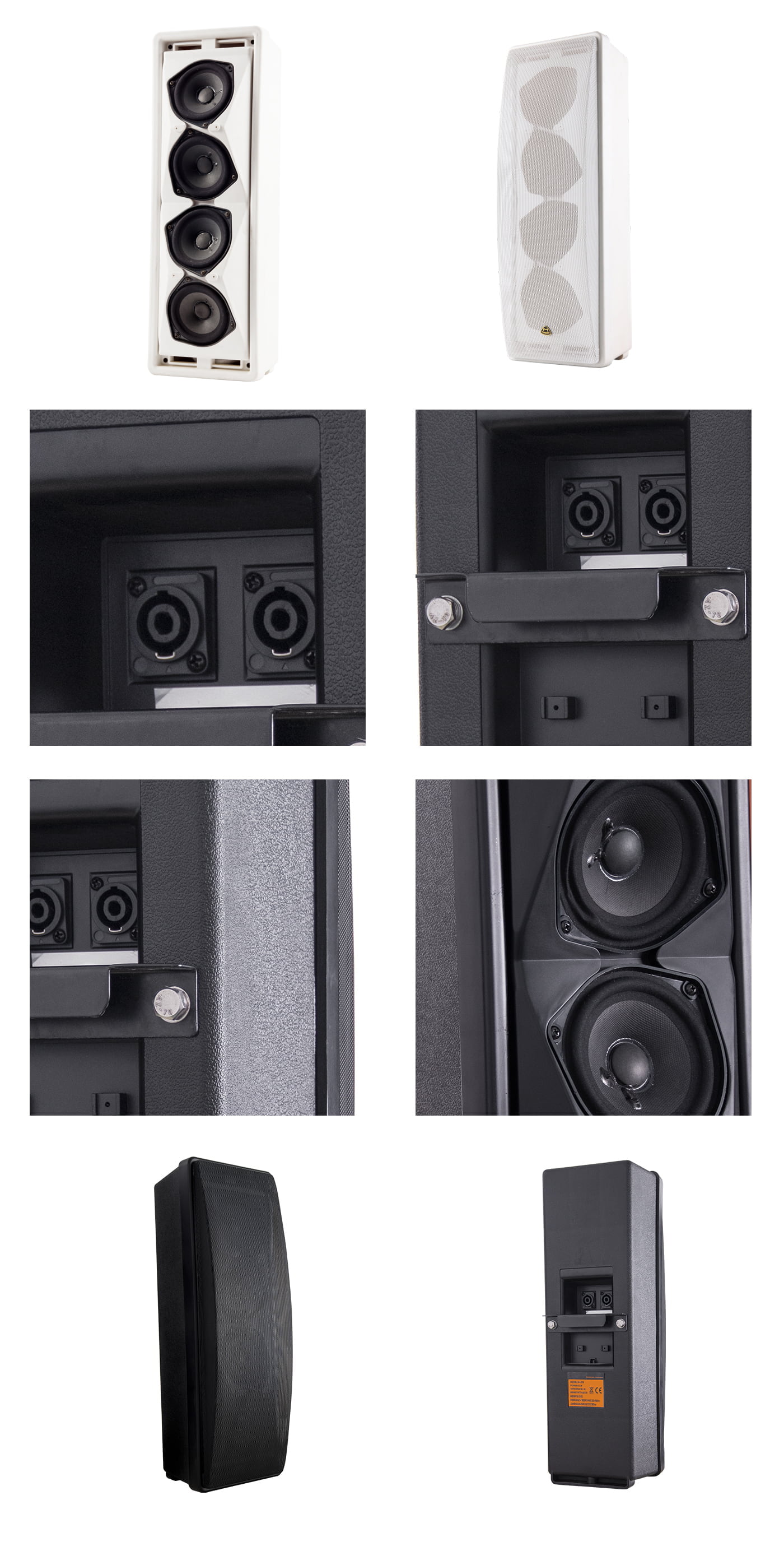

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-218 48.5*28*66.5 0.090  2 16.92  19.92  578 1466
M-219 48*23*68.5 0.076  2 13.80  16.80  684 1736

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO

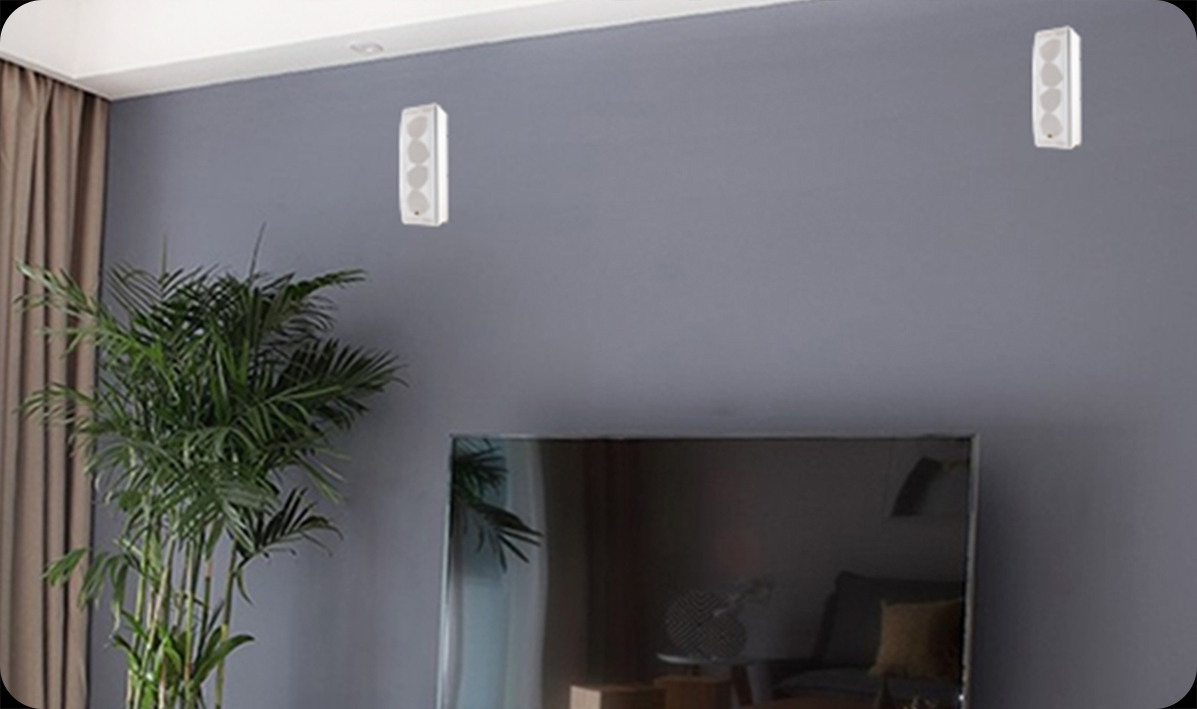

LIVING ROOM

08

COMPANY INFORMATION

PANORAMA

PANORAMA

Injection

Injection

TRANSFORMER

TRANSFORMER

LOUDSPEAKER

LOUDSPEAKER

Electronic PCB

Electronic PCB

Assembly

Assembly

inspection room

inspection room

Silence room

Silence room

sample room

sample room

09

Certificate

  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate

Ningbo Cooma Acoustics Co., Ltd.

Ningbo Cooma Acoustics Co., Ltd. is a M-218 5" column speaker with 4pcs full range loudspeaker hifi conference speaker Suppliers and M-218 5" column speaker with 4pcs full range loudspeaker hifi conference speaker Company, mainly producing ceiling speakers, wall speakers, column speakers, Bluetooth speakers, power amplifiers, mixer amplifiers and other public broadcast peripherals and intelligent speakers.

The company was founded in 2009, plant area of 15,000 square meters, the existing more than 200 employees, the company in the entire daily operation process to fully implement the ISO9001 quality management system, to systematize, standardize, standardized operation, to ensure long-term stability to provide high-quality products. Our products have CE, ROHS2.0, IP65 and other international safety certifications, which can meet the mandatory requirements of customers around the world for various safety certifications.

The company gives priority to the introduction of fully automated speaker unit production lines, reducing the accumulation of products in progress, streamlined production to ensure that each unit has a high yield and consistency, which is not only a strong guarantee for product production delivery, but also a strong guarantee for product quality.

Today's Cooma has become a professional audio production enterprise integrating R&D, production, sales and service, always taking high-quality guarantee and professional service as the brand commitment, taking the long-term value of customers as the brand core, adhering to the development concept of product quality, production scale, operation specialization, business regionalization, and management differentiation, tree quality banner, and do high-quality enterprises.
