Features:
- 8 inch hifi conference wall speaker
- With transformer 80W big power
- TWO way wall speaker，38mm cone Subwoofer，25mm cone alto
- Materal is ABS
- Full white or full black
Product category
| ITEM | M-224 | M-225 | M-226 | M-228 |
| RMS POWER | 20W | 30W | 35W | 80W |
| MAX POWER | 20W | 30W | 35W | 85W |
| VOLTAGE INPUT | 100V | 100V | 100V | 100V |
| SENSITIVITY | 91dB | 91dB | 92dB | 92dB |
| FQ RESPONSE | 75hz-19Khz | 75hz-20Khz | 75hz-20Khz | 65hz-20Khz |
| LOUDSPEAKER | 4“（Φ103mm）19/13mm cone | 5.5“（Φ135mm）25/13mm cone | 6.5“（Φ166mm）25/25mm cone | 8“（Φ203mm）38/25mm cone |
| OUTSIDE SIZE | 150×130×215mm | 170×155×250mm | 205×195×305mm | 280×230×435mm |
| INNER BOX SIZE | 150×140×268mm | 180×165×305mm | 215×200×360mm | 335×295×500mm |
| TRANSFORMER SIZE | 16×20 | 16×24 | 16×24 | 22×28 |
| MATERIAL | ABS | ABS | ABS | ABS |
| COLOR | BLACK/WHITE | BLACK/WHITE | BLACK/WHITE | BLACK/WHITE |
| N.W. | 1.85kg | 2.6kg | 3.32kg | 6.36kg |

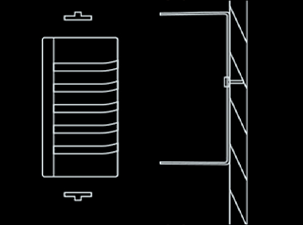

1.Rotate the plastic knobs of the upper and lower brackets, remove the U-shaped bracket, and fix the U-shaped bracket on the wall with screws.

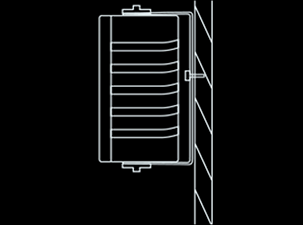

2.Use the plastic knob to fix the speaker on the U-shaped bracket. Adjust the angle before it can be used normally.
The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

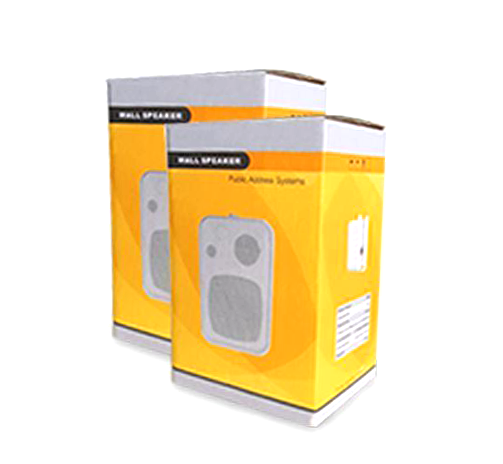

inner box
carton
| ITEM | SIZE(cm) | PCS/CTN | CBM (m3) | N.W. (kg) | G.W. (kg) | 20GP(pcs) | 40HQ(pcs) |
| M-224 | 44*32*28.5 | 0.040 | 6 | 11.10 | 13.10 | 3900 | 9900 |
| M-225 | 51.5*38*32.5 | 0.064 | 6 | 15.60 | 17.60 | 2436 | 6186 |
| M-226 | 45*42*38 | 0.072 | 4 | 13.28 | 15.28 | 1444 | 3668 |
| M-228 | 61.5*35.5*52 | 0.114 | 2 | 12.72 | 14.72 | 456 | 1158 |
|
