M-709 pa public system school/park horn speaker

01

Product category

M-709 pa public system school/park horn speaker

Features:

  • 100V horn speaker with bracket
  • 3.75W/7.5W/15W/30W with transforme
  • 38mm cone
  • Materal is ABS
  • Hot selling horn speaker

03

DATA INFORMATION

ITEM M-709 M-711
RMS POWER 3.75W/7.5W/15W/30W 3.75W/7.5W/15W/30W
MAX POWER 50W 50W
VOLTAGE INPUT 100V 100V
SENSITIVITY 110dB 110dB
FQ RESPONSE 250hz-8Khz 300hz-8Khz
LOUDSPEAKER 34mm cone 38mm cone
OUTSIDE SIZE 240×220×165mm 285×280×205mm
INNER BOX SIZE 241×229×167mm 292×288×212mm
TRANSFORMER SIZE 16×24 16×24
MATERIAL ABS  ABS
COLOR WHITE WHITE
N.W. 1.63Kg WHITE

04

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    2.

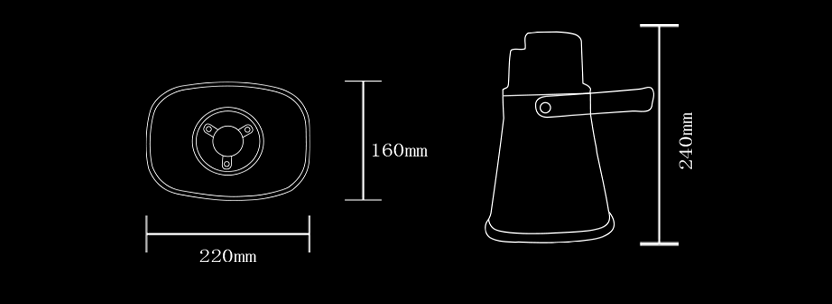

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-709 52.5*48*25.5 0.064  9.78  11.78  2436 6186
M-711 60*45*32 0.086  7.60  9.60  1208 3068
