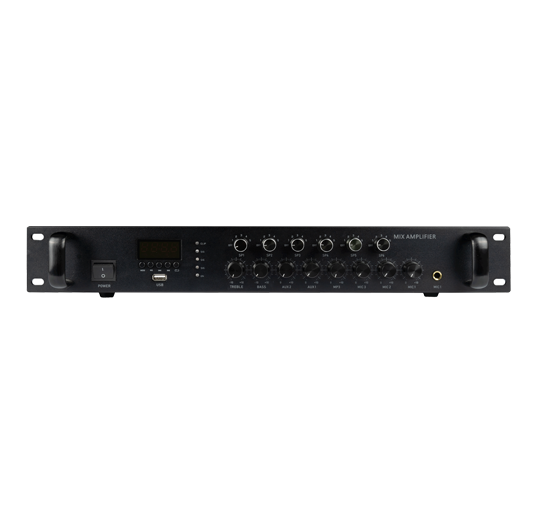

Features:
- 1000W Power
- Can be control volume of each zone alone
- With USB, MP3 player, LED, bluetooth, FM, MIC
- 3-MIC input,2-way AUX input,1-way AUX output

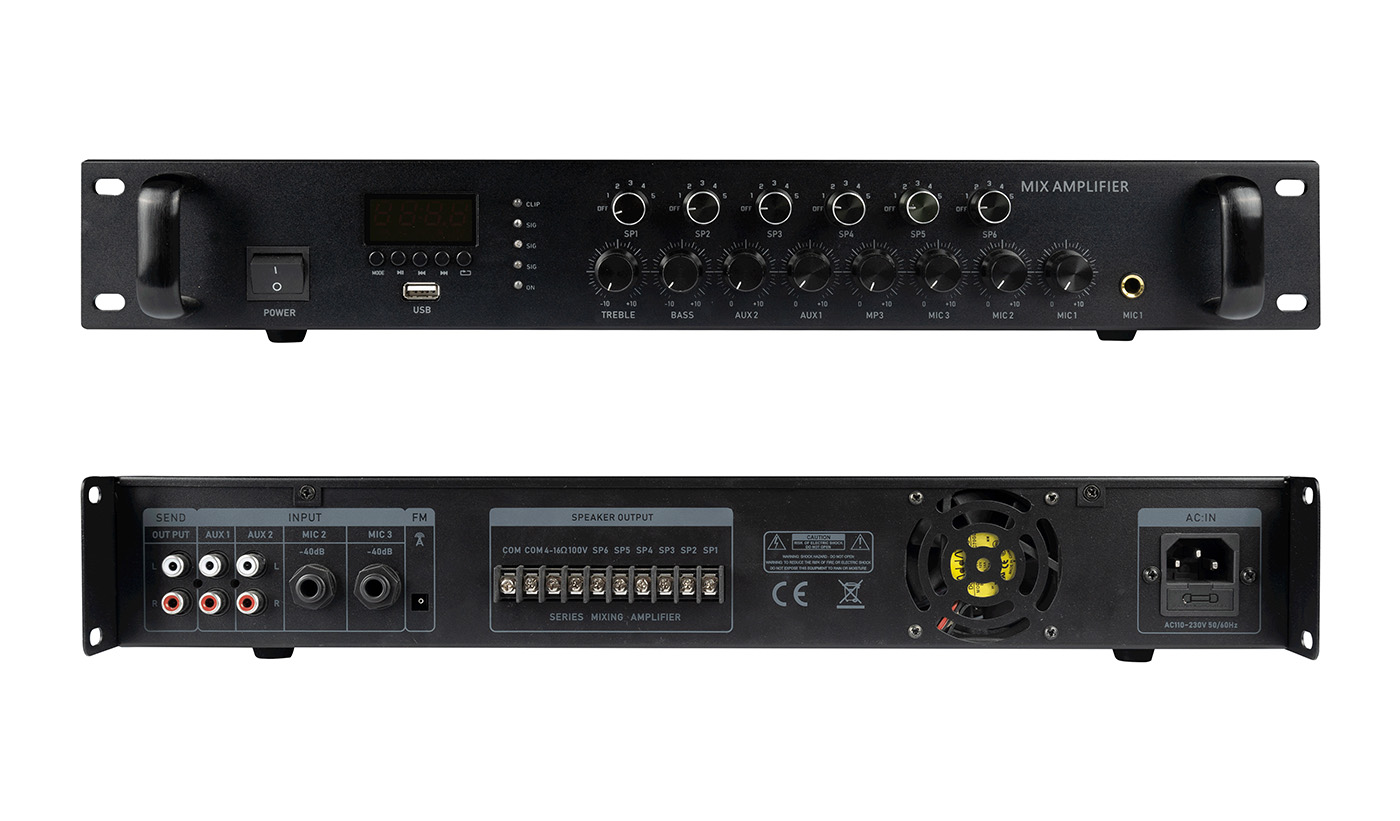

- 6 zone mixer amplifier with bluetooth,output:100V
- Aluminum
Product category
ITEM | D-6100A | D-6200A | D-6300A | D-6500A | D-6650A | D-6950A | |
POWER | 100W | 200W | 300W | 500W | 650W | 1000W | |
AC POWER | AC220V 50Hz | ||||||
INPUT | MIC1,2,3: 5MV600Ω(-10dB unbalance) AUX1,2:0.775V/10K(0dB) | ||||||
FUNCTION | BLUETOOTH, USB, FM, AUX Input/output | ||||||
VOLUME | BASS | ±10dB at 100Hz | |||||
TREBLE | ±10dB at 10KHz | ||||||
FQ RESPONSE | 80Hz-18KHz ± 3dB | ||||||
THD | 0.1%at 1KHz,1/3 rms power | ||||||
S/N RATIO | MlC1、2、3:≥66dB, AUX1、2:270dB | ||||||
LINE OUTPUT | 100V/4-16Ω | ||||||
PROTECT | AC FUSE | ||||||

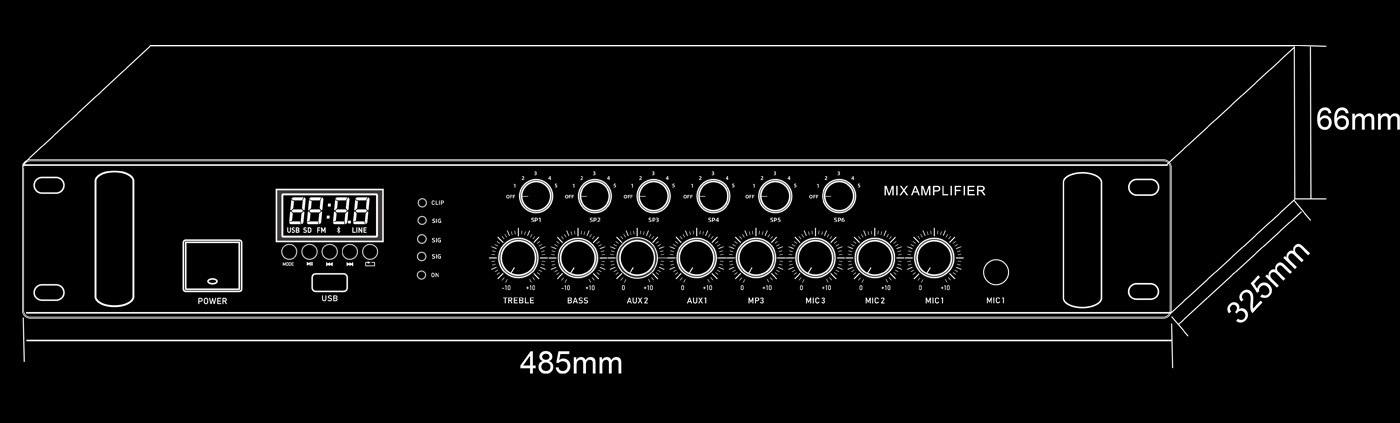

OUTSIDE SIZE | 485×325×66mm | ||||||
WEIGHT | 7.5kg | 8kg | 8.5kg | 9kg | 9.5kg | 10kg |
inner box

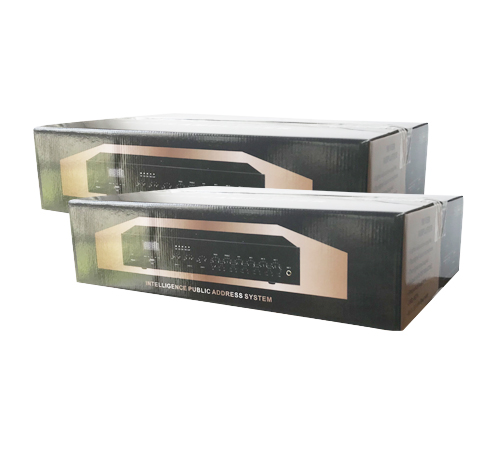

carton
ITEM | SIZE(cm) | PCS/CTN | CBM (m3) | N.W. (kg) | G.W. (kg) | 20GP(pcs) | 40HQ(pcs) |
D-6100A | 55.5*40.5*27.5 | 2 | 0.062 | 15.00 | 18.00 | 838 | 2128 |
D-6200A | 55.5*40.5*27.5 | 2 | 0.062 | 16.00 | 19.00 | 838 | 2128 |
D-6300A | 55.5*40.5*27.5 | 2 | 0.062 | 17.00 | 20.00 | 838 | 2128 |
D-6500A | 55.5*40.5*27.5 | 2 | 0.062 | 18.00 | 21.00 | 838 | 2128 |
D-6650A | 55.5*40.5*27.5 | 2 | 0.062 | 19.00 | 22.00 | 838 | 2128 |
D-6950A | 55.5*40.5*27.5 | 2 | 0.062 | 20.00 | 23.00 | 838 | 2128 |
Required |
—— |
Matching |
——Power adapter |
SCHOOL

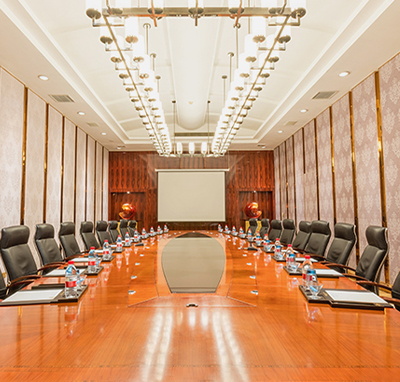

MEETING ROOM
BUSINESS-CLUB
SHOPPING MALL
AIRPORT/METRO
LIVING ROOM
PANORAMA

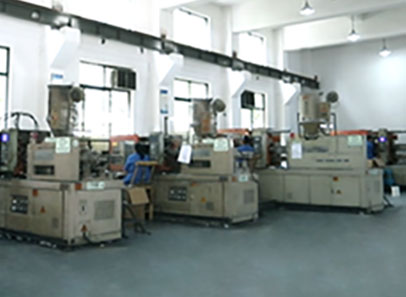

Injection

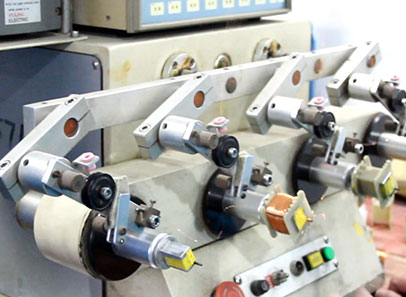

TRANSFORMER

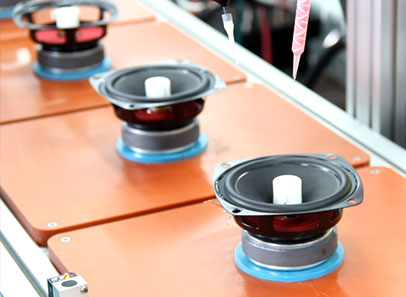

LOUDSPEAKER

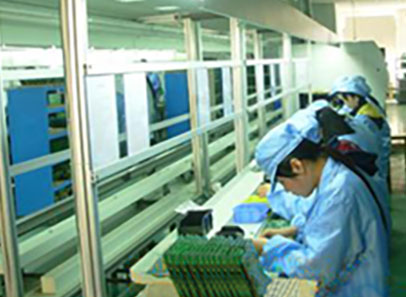

Electronic PCB

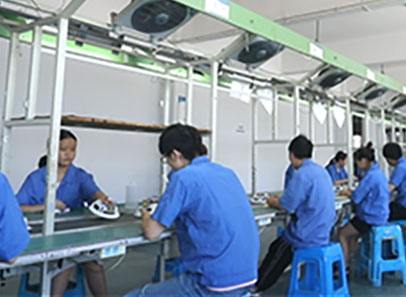

Assembly

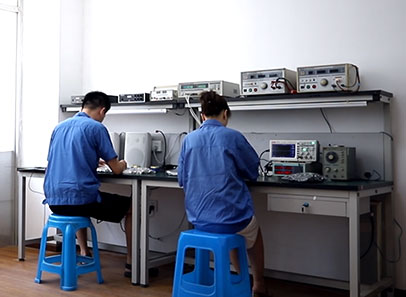

inspection room

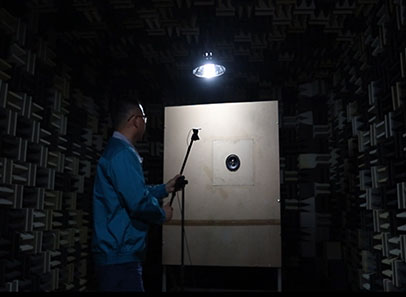

Silence room

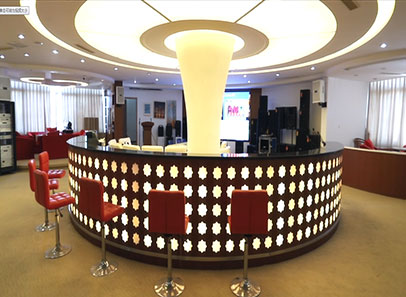

sample room
Ningbo Cooma Acoustics Co., Ltd. is a D-6950A 1.5U 1000W 6 zone mixer amplifier with volume control Suppliers and D-6950A 1.5U 1000W 6 zone mixer amplifier with volume control Company, mainly producing ceiling speakers, wall speakers, column speakers, Bluetooth speakers, power amplifiers, mixer amplifiers and other public broadcast peripherals and intelligent speakers.

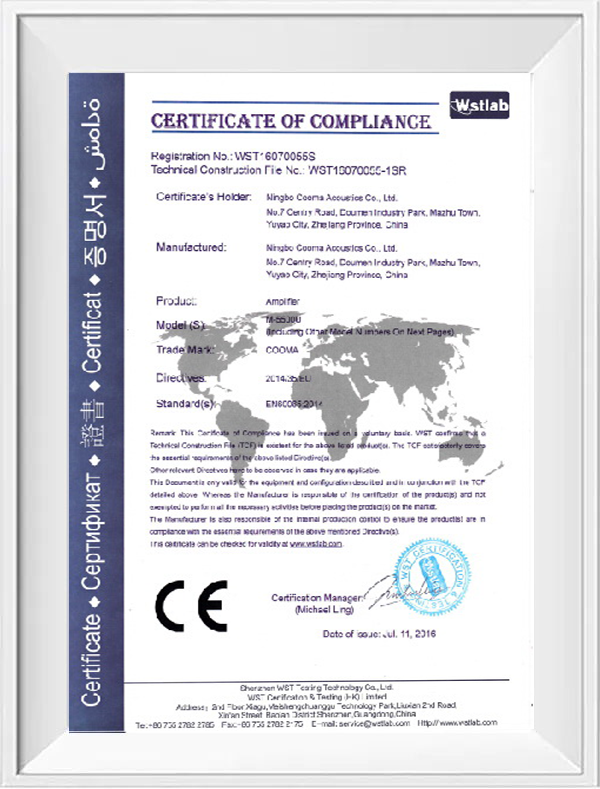

The company was founded in 2009, plant area of 15,000 square meters, the existing more than 200 employees, the company in the entire daily operation process to fully implement the ISO9001 quality management system, to systematize, standardize, standardized operation, to ensure long-term stability to provide high-quality products. Our products have CE, ROHS2.0, IP65 and other international safety certifications, which can meet the mandatory requirements of customers around the world for various safety certifications.
