Wholesale D-1030U 20W public address mini class D mixer amplifier

Home / Products / Mixer Amplifier / D-1030U 20W public address mini class D mixer amplifier
D-1030U 20W public address mini class D mixer amplifier

01

Product category

D-1030U 20W public address mini class D mixer amplifier

Features:

  • 20W Power,AC Power 110V-230V 50/60Hz
  • With USB,Mp3,BT
  • 1-way line input,1-way MIC input, and the MIC input is preferentially cut
  • voltage output:100V, Impedance output:4-16Ω

02

DATASHEET

D-1030U 20W public address mini class D mixer amplifier

03

DATA INFORMATION

ITEM D-1030U
RATED POWER 20W
AC POWER AC110-230V(50/60Hz)
FQ RESPONSE 100Hz-20KHz ± 3dB
VOLUME BASS:±10dB  at 125Hz;TREBLE:±10dB  at 6KHz
AUX SENSITIVITY 0dB
MIC SENSITIVITY -30dB
THD ≤0.1%
S/N RATIO ≥70dB
LINE OUTPUT 0dB
WORK TEMP 20%-80% Relative humidity, no condensation
OUTSIDE SIZE 220×130×65mm
WEIGHT 1.6kg
iNNER BOX SIZE 255×195×90mm



04

PRODUCT DETAILS

05

installation drawings

Introduction

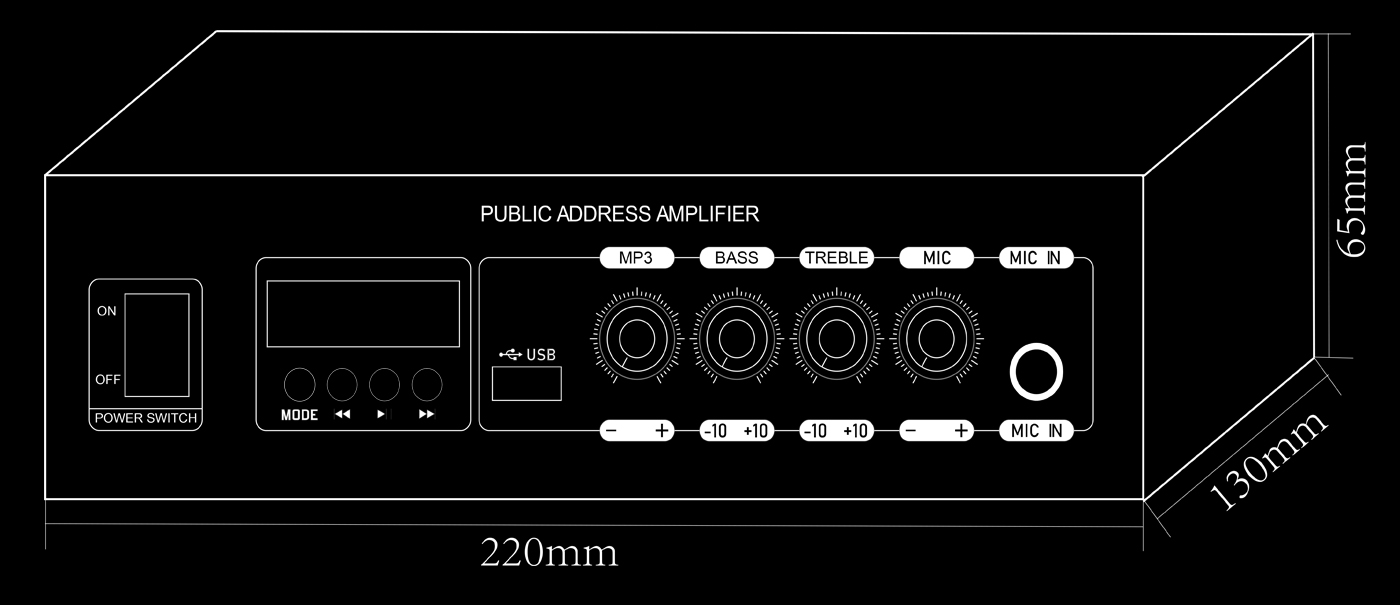

  • Dimensions

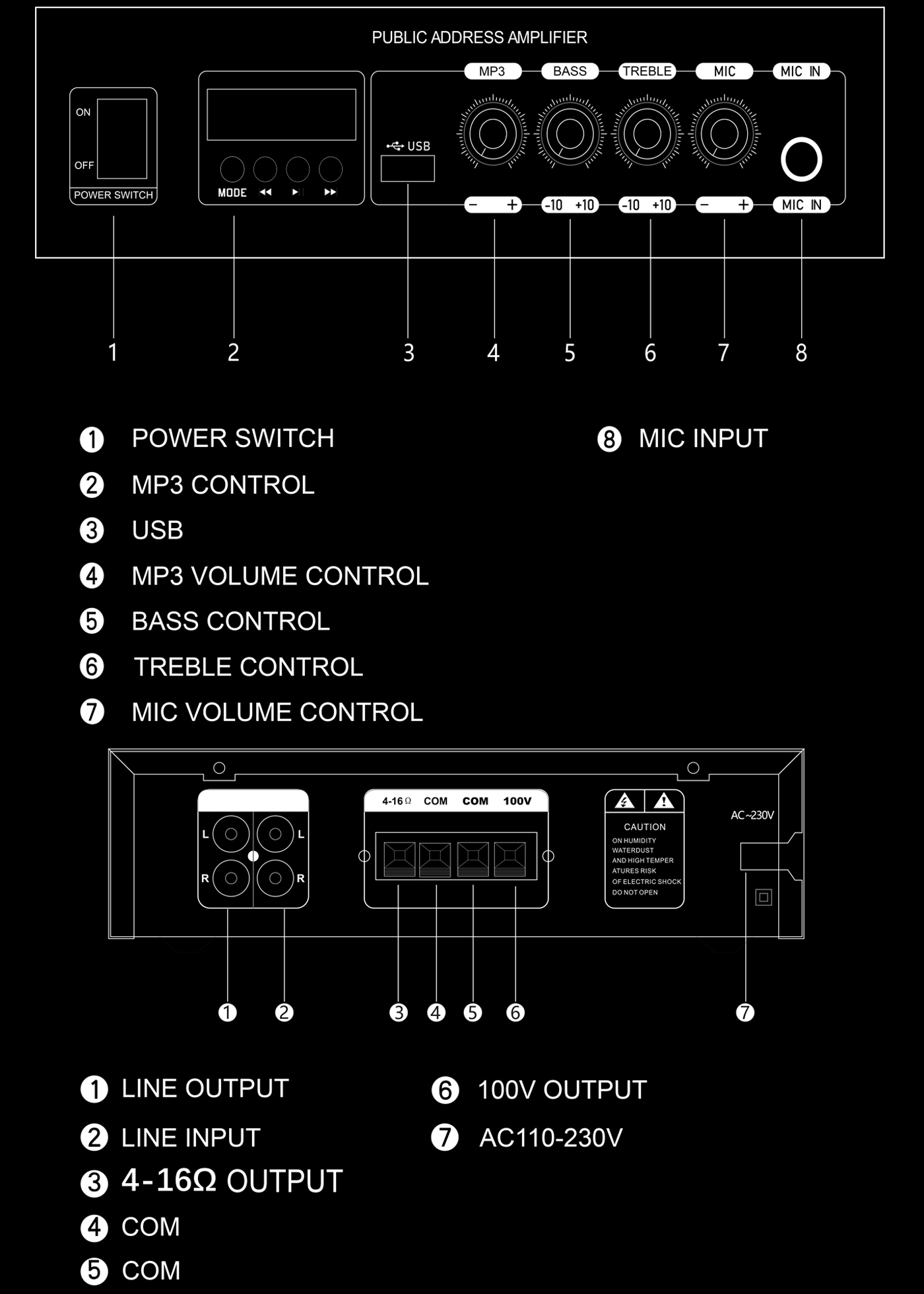

  • Control Panel Introduction:

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
D-1030U 47*41*28 10 0.054 16 19 4810 12220

Accessories:
