M-3060U 60W power 3 zone volume control mixer amplifier with bluetooth

01

Product category

M-3060U 60W power 3 zone volume control mixer amplifier with bluetooth

Features:

  • Power 60W
  • With USB, MP3 player ,LED,bluetooth,FM,MIC
  • 2-MIC input,1-way line input,1-way line output
  • Start delay,short circuit protection and mute function.
  • 3 zone mixer amplifier with bluetooth,output:4-16Ω,70V-100V.3 zone volume control
  • Aluminum
  • AC power:220V/50Hz

03

DATA INFORMATION

ITEM M-3060U M-3120U M-3360U M-3240U
OUTPUT POWER 60W 120W 240W 360W
SIGNAL INPUT MIC 600Ω/35mV
SIGNAL 10K/0.775V
S/N RATIO MIC ≥66dB
SIGNAL ≥70dB
THD MIC <0.5%
SIGNAL <0.1%
OUTPUT MODE 4-16Ω  70V/100V,3zone
FQ RESPONSE 70Hz-18KHz
OUTSIDE SIZE 400×270×66mm
WEIGHT 4.39kg 5.96kg 6.94kg 7.62kg



04

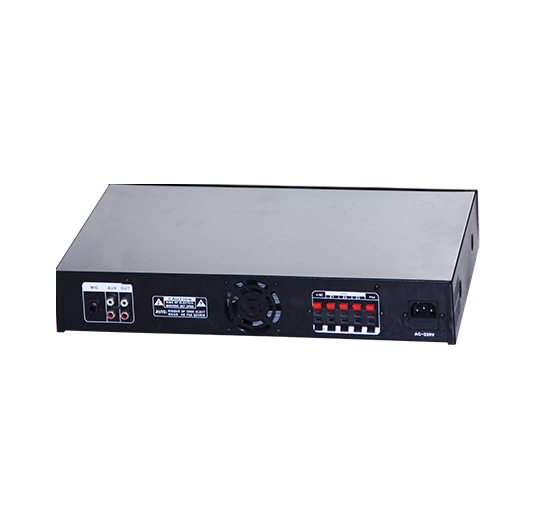

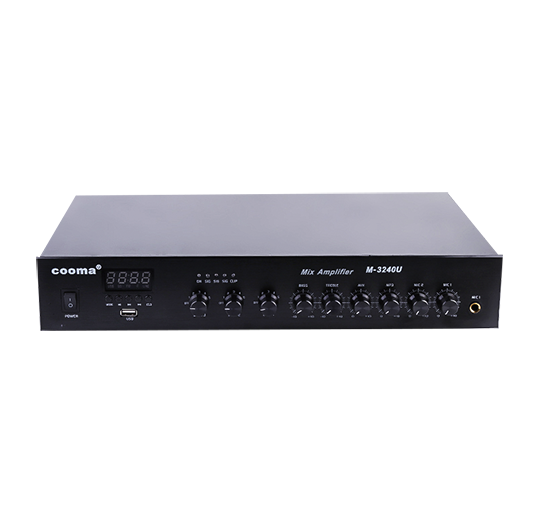

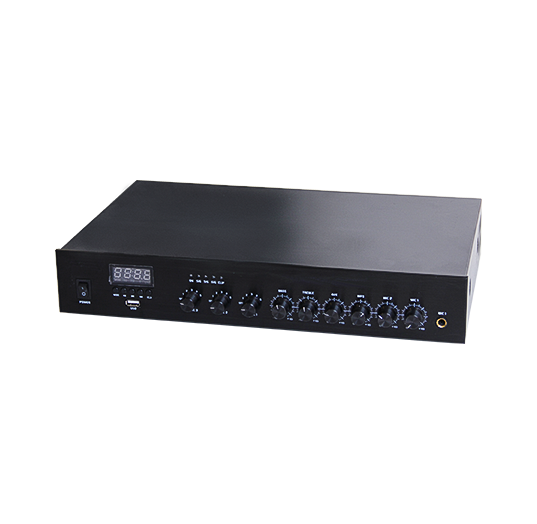

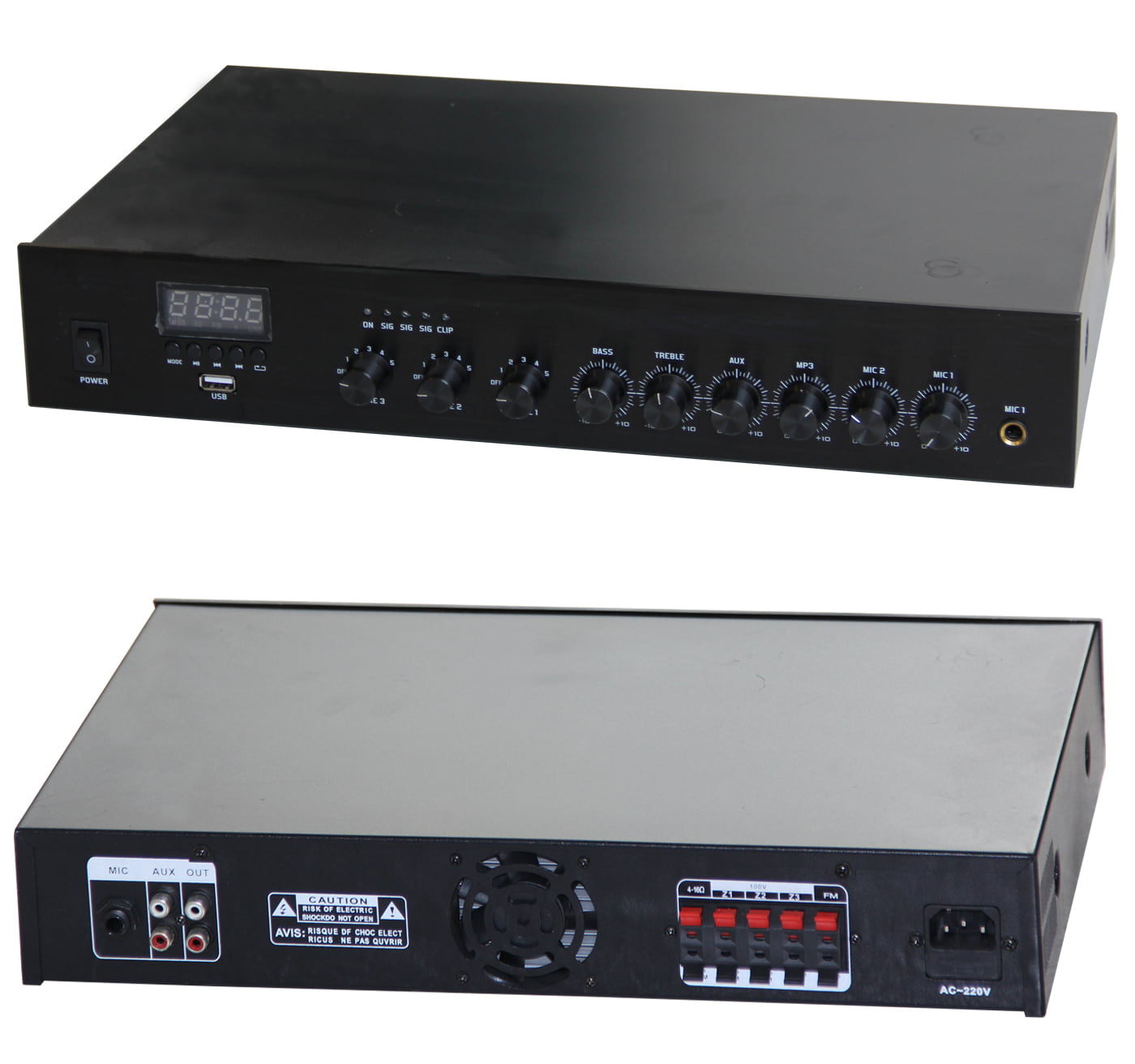

PRODUCT DETAILS

05

installation drawings

Introduction

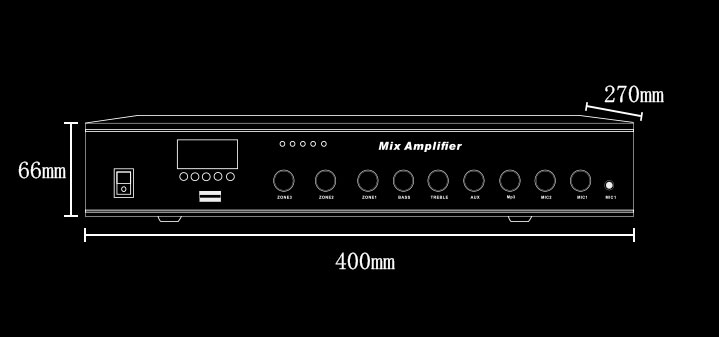

  • Dimensions

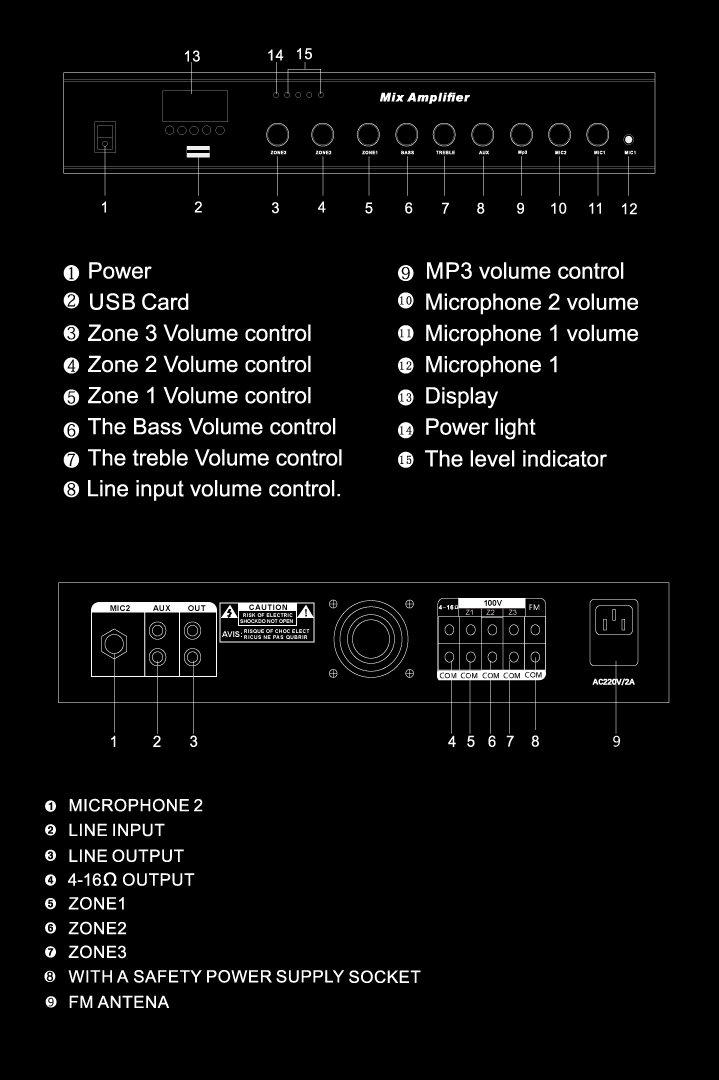

  • Control Panel Introduction:

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-3060U 48*34*26.5 0.043  2 8.78 10.57 1210 3070
M-3120U 48*34*26.5 0.043  2 11.92 13.95 1210 3070
M-3360U 48*34*26.5 0.043  2 13.88 15.83 1210 3070
M-3240U 48*34*26.5 0.043  2 15.24 17.2 1210 3070

Accessories:

Required

——

Matching

——

07

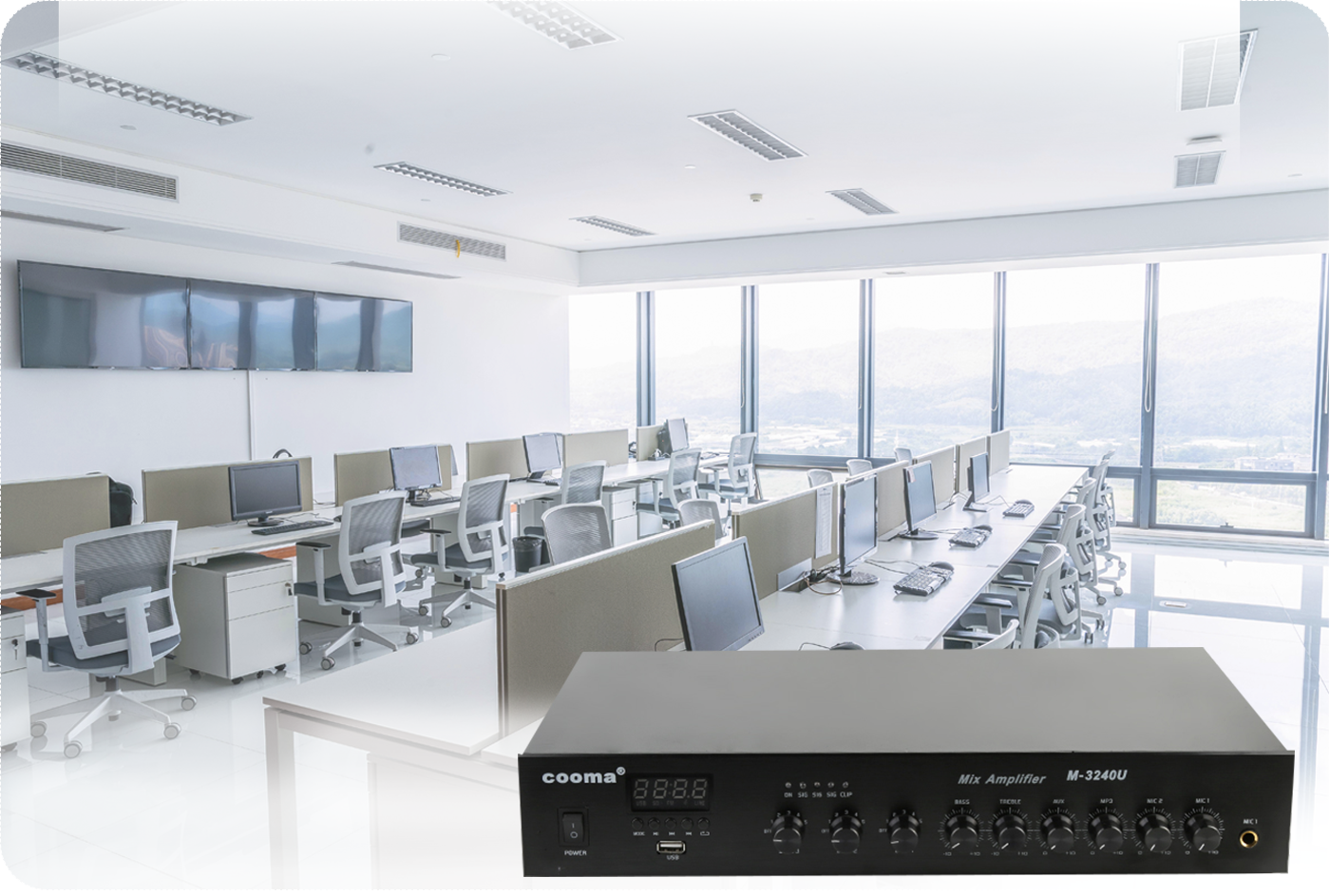

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM

08

COMPANY INFORMATION

PANORAMA

PANORAMA

Injection

Injection

TRANSFORMER

TRANSFORMER

LOUDSPEAKER

LOUDSPEAKER

Electronic PCB

Electronic PCB

Assembly

Assembly

inspection room

inspection room

Silence room

Silence room

sample room

sample room

09

Certificate

  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
