Wholesale M-582 3" mounted on-wall speaker full white and black 100V/8Ohm wall speaker

Home / Products / Wall Speaker / M-582 3" mounted on-wall speaker full white and black 100V/8Ohm wall speaker
M-582 3

01

Product category

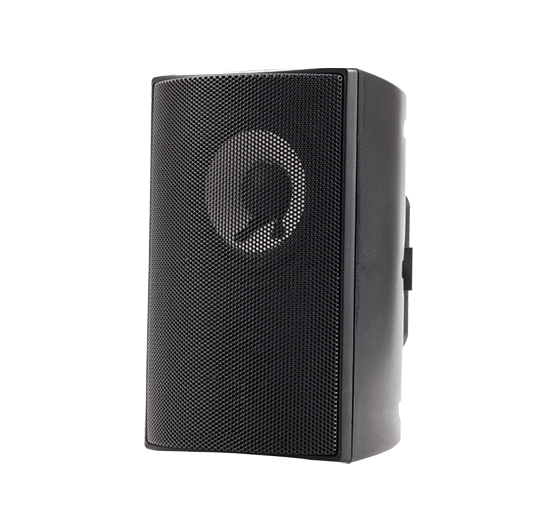

M-582 3" mounted on-wall speaker full white and black 100V/8Ohm wall speaker

Features:

  • 3inch 8Ω 100V wall speaker
  • TWO way wall speaker,19mm cone woofer,13mm silk film tweeter
  • 5W/10W with transformer
  • Has black and white color

03

DATA INFORMATION

ITEM

M-582

RMS POWER

5W/10W

MAX POWER

20W

VOLTAGE INPUT

100V

SENSITIVTY

90dB±3dB

FQ RESPONSE

90hz-18Khz

LOUDSPEAKER

3“(Φ75mm)19/13mm cone

OUTSIDE SIZE

104×100×160mm

INNER BOX SIZE

126×106×167mm

TRANSFORMER SIZE

13×16

MATERIAL

ABS

COLOR

WHITE/BLACK

N.W.

0.79kg

04

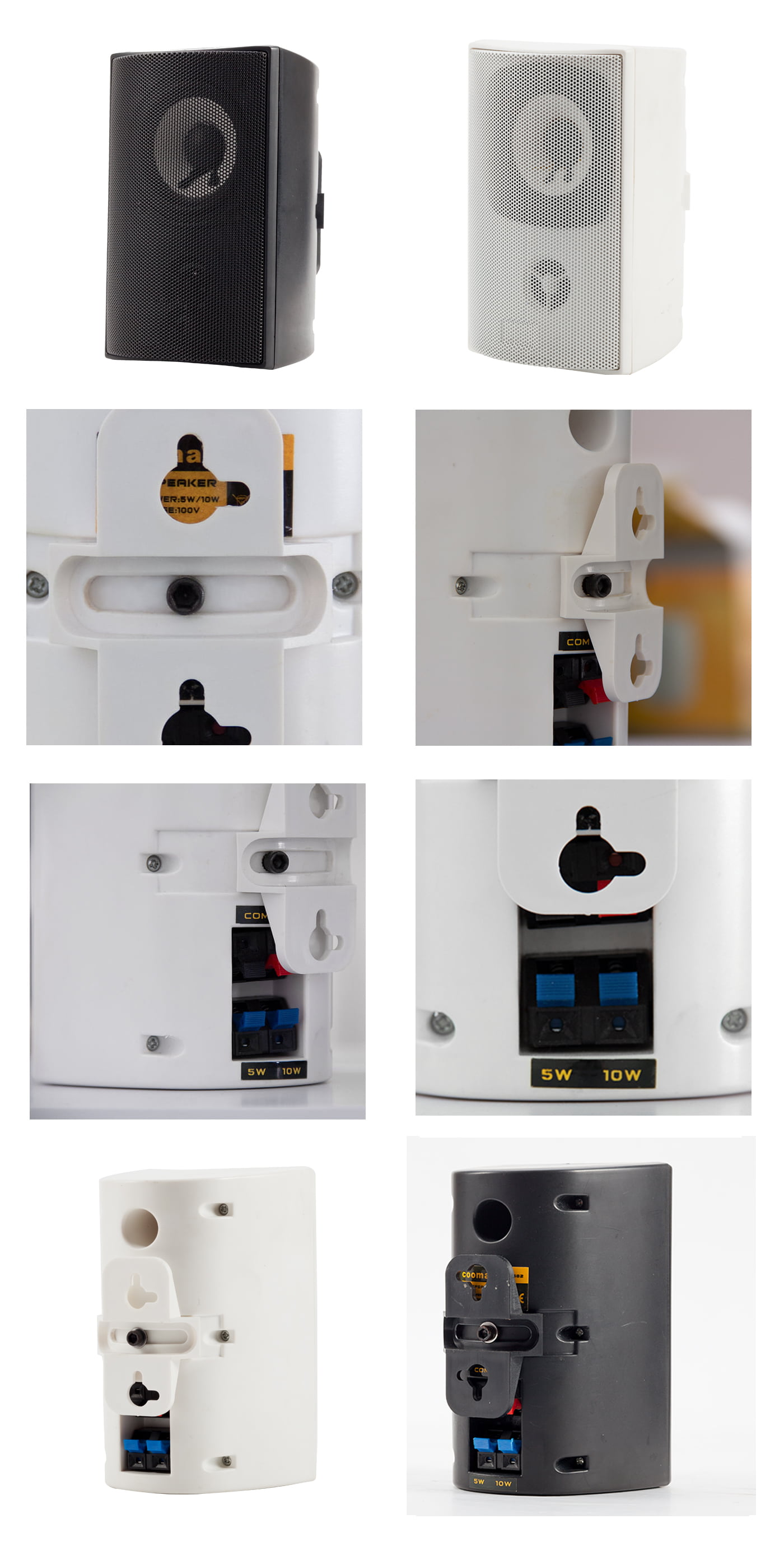

PRODUCT DETAILS

05

installation drawings

How to install

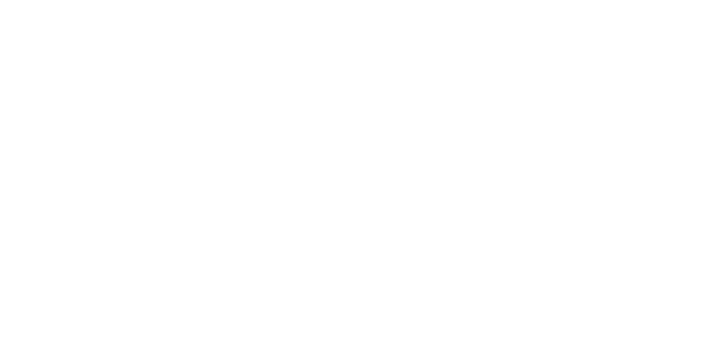

  • Installation schematic:

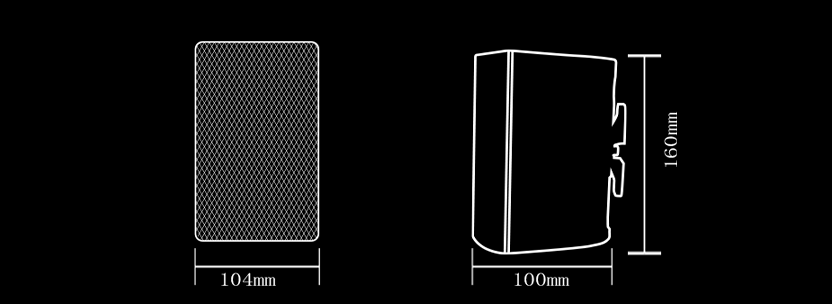

  • Dimensions

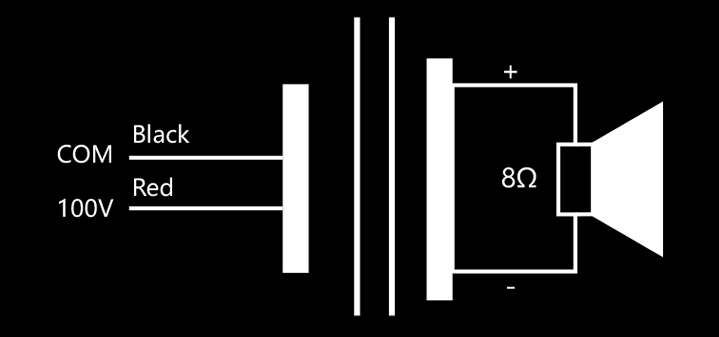

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-582

55.5*27*35.5

20

0.053

15.80

18.30

9820

24900

Accessories:
