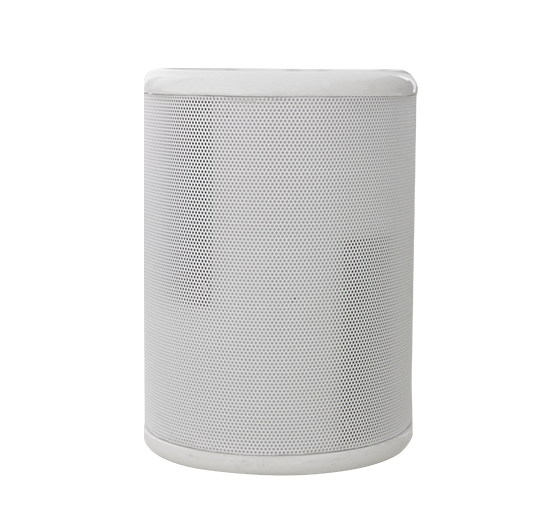

M-594 100V mini small speaker full range wall speaker

01

Product category

M-594 100V mini small speaker full range wall speaker

Features:

  • 100V full range wall speaker
  • Has 2 rectangular loudspeaker inside,19mm cone
  • 3W/6W with transformer
  • Has very wide playback angle

03

DATA INFORMATION

ITEM

M-594

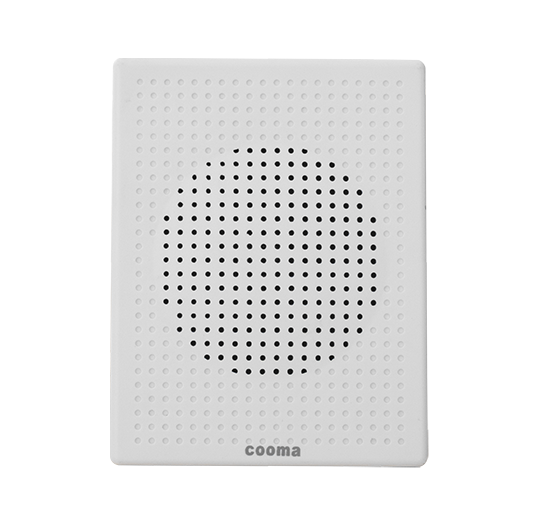

M-515

M-542

RMS POWER

3W/6W

3W

1.5W/3W

MAX POWER

10W

6W

6W

VOLTAGE INPUT

100 V

100V

100 V

SENSITIVTY

91dB

90dB

90dB

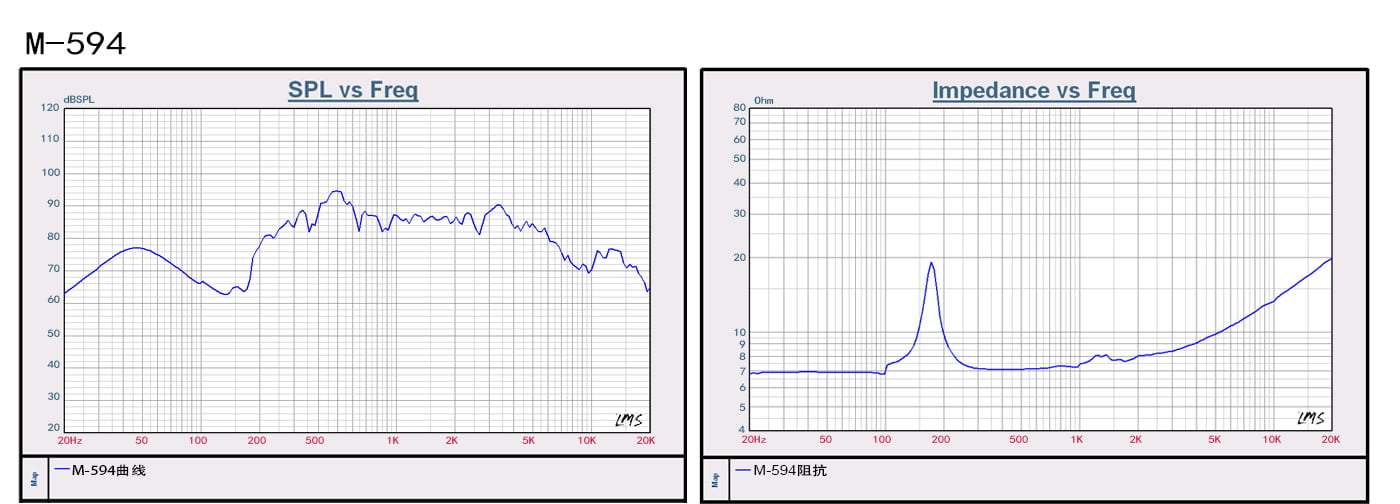

FQ RESPONSE

90-18Khz

90hz-16Khz

100hz-16Khz

LOUDSPEAKER

Φ50×90mm×2

5“(Φ120mm)14mm cone

3“(Φ78mm)13mm cone

OUTSIDE SIZE

180×75×130mm

139×70×178mm

120×60×120mm

INNER BOX SIZE

34×78×186mm

145×75×185mm

125×65×125mm

TRANSFORMER SIZE

13×16

13×16

10×13

MATERIAL

ABS

ABS

ABS

COLOR

WHITE

WHITE

WHITE

N.W.

0.77kg

0.61kg

0.37kg

04

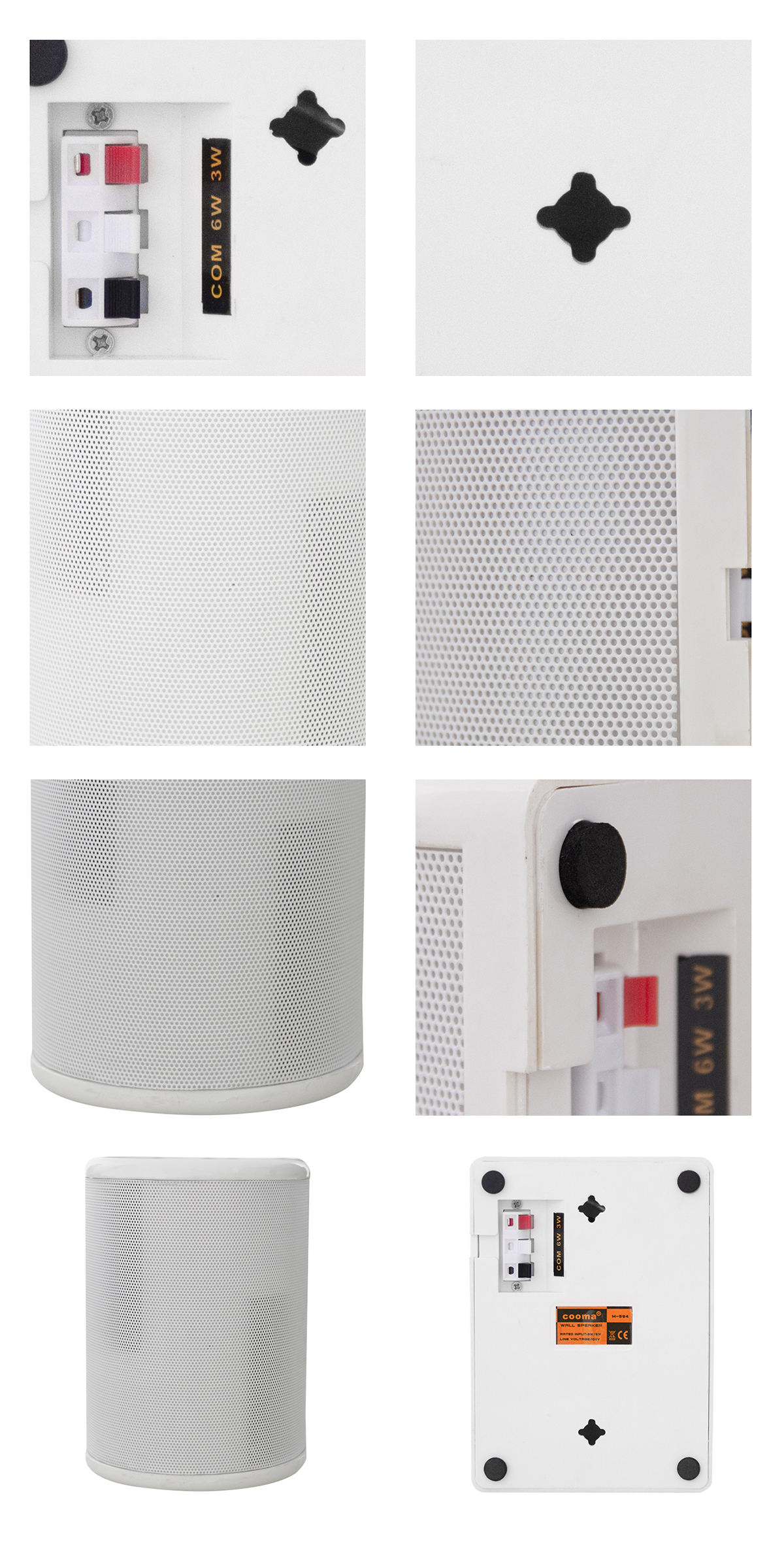

PRODUCT DETAILS

05

installation drawings

How to install

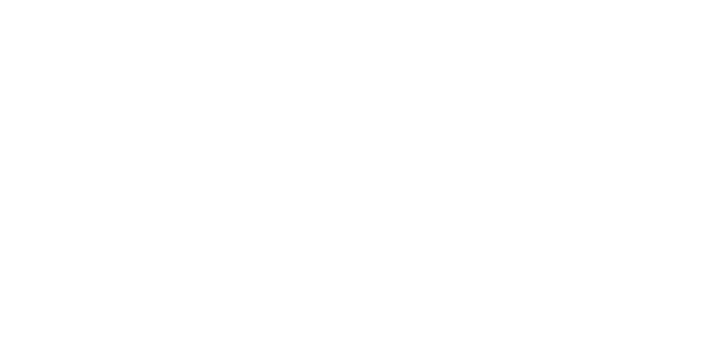

  • Installation schematic:

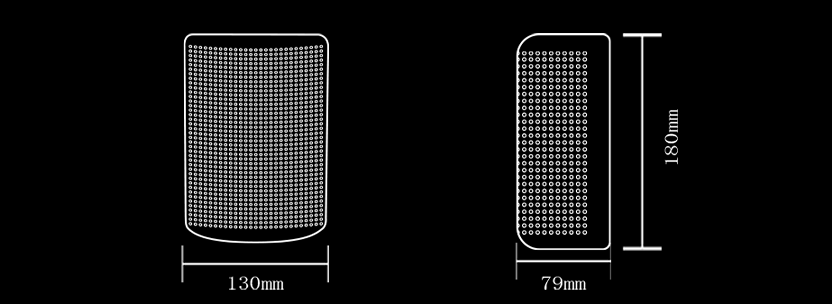

  • Dimensions

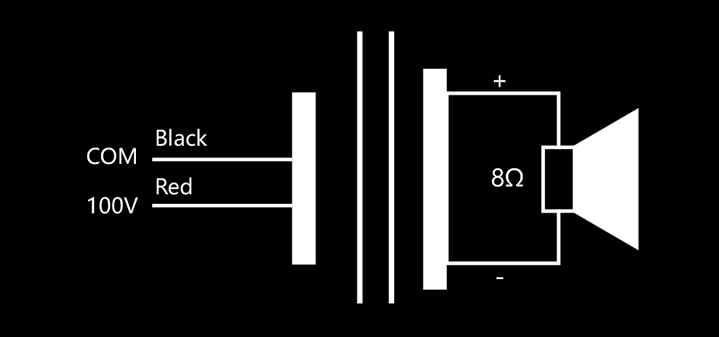

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

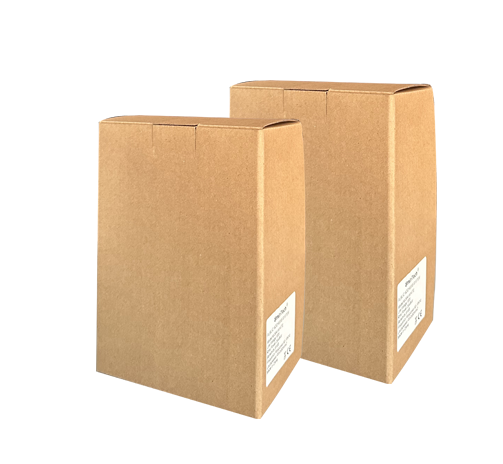

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-594

42.5*29*39

20

0.048

15.4

17.9

10840

27500

M-515

45.5*40*38.5

30

0.07

18.3

21.35

11130

28290

M-542

39*34*39.5

45

0.052

16.65

20.3

22500

57105

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO

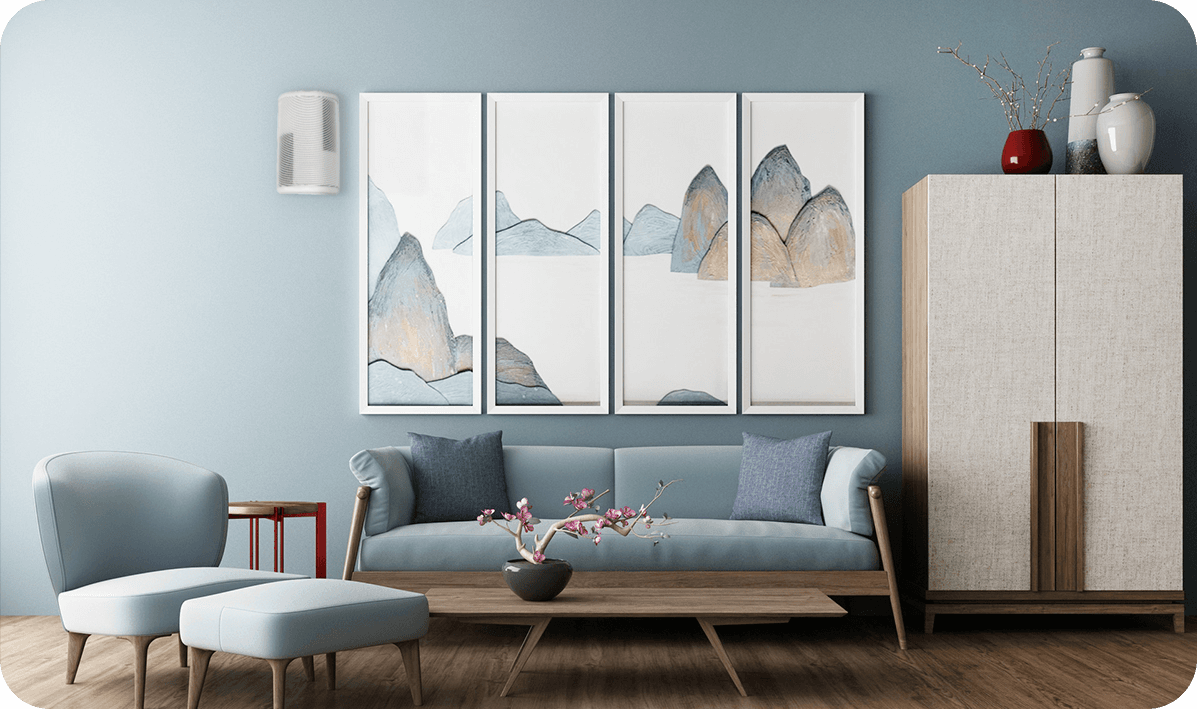

LIVING ROOM
