Features:
- 5inch 100V full range wall speaker
- 14mm cone
- 3W-6W with transformer
- Use in the reading roomsitting room and so on
Product category
|
ITEM |
M-594 |
M-515 |
M-542 |
|
RMS POWER |
3W/6W |
3W |
1.5W/3W |
|
MAX POWER |
10W |
6W |
6W |
|
VOLTAGE INPUT |
100 V |
100V |
100 V |
|
SENSITIVTY |
91dB |
90dB |
90dB |
|

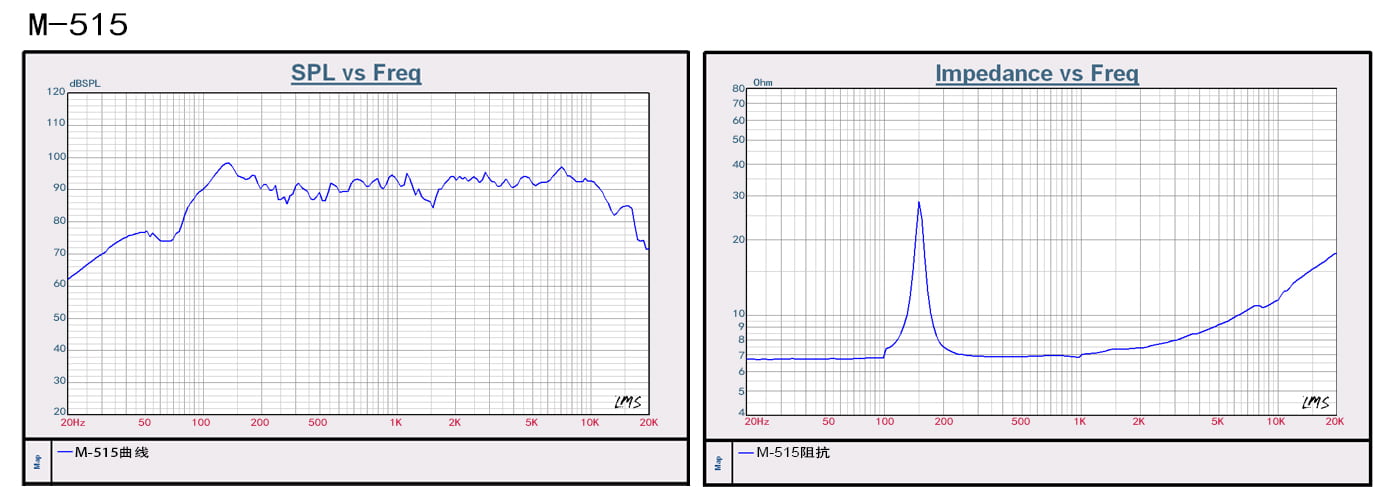

FQ RESPONSE |
90-18Khz |
90hz-16Khz |
100hz-16Khz |
|
LOUDSPEAKER |
Φ50×90mm×2 |
5“（Φ120mm）14mm cone |
3“（Φ78mm）13mm cone |
|

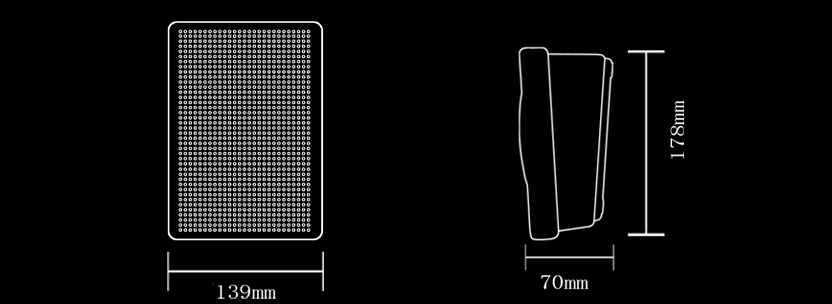

OUTSIDE SIZE |
180×75×130mm |
139×70×178mm |
120×60×120mm |
|
INNER BOX SIZE |
34×78×186mm |
145×75×185mm |
125×65×125mm |
|
TRANSFORMER SIZE |
13×16 |
13×16 |
10×13 |
|
MATERIAL |
ABS |
ABS |
ABS |
|
COLOR |
WHITE |
WHITE |
WHITE |
|
N.W. |
0.77kg |
0.61kg |
0.37kg |

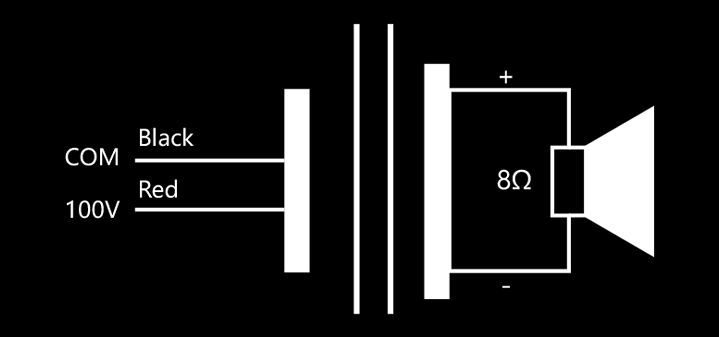

The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.
inner box
carton
|
ITEM |
SIZE(cm) |
PCS/CTN |
CBM (m3) |
N.W. (kg) |
G.W. (kg) |
20GP(pcs) |
40HQ(pcs) |
|
M-594 |
42.5*29*39 |
20 |
0.048 |
15.4 |
17.9 |
10840 |
27500 |
|
M-515 |
45.5*40*38.5 |
30 |
0.07 |
18.3 |
21.35 |
11130 |
28290 |
|
M-542 |
39*34*39.5 |
45 |
0.052 |
16.65 |
20.3 |
22500 |
57105 |
|
